MMBZ5242B-E3-08 by:

Zener Diode, 12V V(Z), 5%, 0.225W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3

Part Details for MMBZ5242B-E3-08 by Vishay Intertechnologies

Results Overview of MMBZ5242B-E3-08 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Electronic Manufacturing Renewable Energy Automotive

MMBZ5242B-E3-08 Information

MMBZ5242B-E3-08 by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for MMBZ5242B-E3-08

Part # Distributor Description Stock Price Buy
DISTI # 78-MMBZ5242B-E3-08
Mouser Electronics Zener Diodes 12 Volt 0.3W 5% RoHS: Compliant 7618
  • 1 $0.1700
  • 10 $0.1120
  • 100 $0.0700
  • 500 $0.0500
  • 1,000 $0.0360
  • 2,500 $0.0310
  • 5,000 $0.0270
  • 10,000 $0.0240
  • 15,000 $0.0210
$0.0210 / $0.1700 Buy Now
DISTI # V72:2272_16503999
Arrow Electronics Diode Zener Single 12V 5% 300mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 83 Weeks Date Code: 2223 Container: Cut Strips Americas - 2216
  • 1 $0.0663
  • 10 $0.0449
  • 25 $0.0444
  • 50 $0.0440
  • 100 $0.0301
  • 250 $0.0298
  • 500 $0.0227
  • 1,000 $0.0195
$0.0195 / $0.0663 Buy Now
DISTI # 77373202
Verical Diode Zener Single 12V 5% 300mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 302 Package Multiple: 1 Date Code: 2223 Americas - 2216
  • 302 $0.0298
  • 500 $0.0227
  • 1,000 $0.0195
$0.0195 / $0.0298 Buy Now
DISTI # MMBZ5242B-E3-08
EBV Elektronik ZENER DIODE SOT23E3 (Alt: MMBZ5242B-E3-08) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Diodes 3888
RFQ

Part Details for MMBZ5242B-E3-08

MMBZ5242B-E3-08 CAD Models

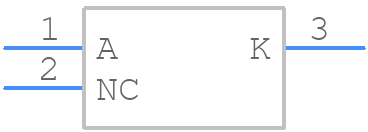

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

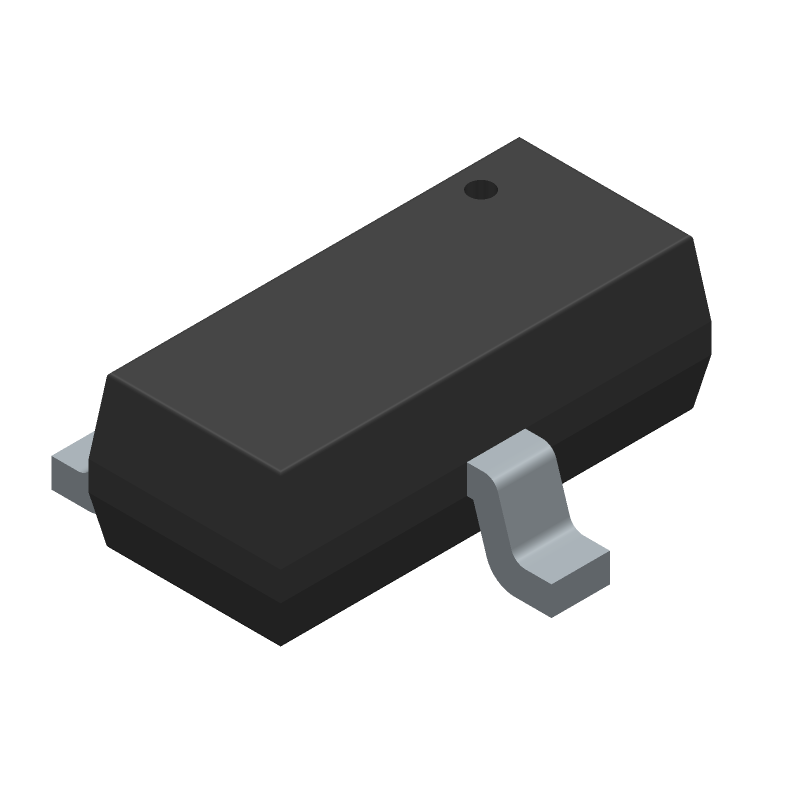

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MMBZ5242B-E3-08 Part Data Attributes

Parametric Data
MMBZ5242B-E3-08 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MMBZ5242B-E3-08 Vishay Intertechnologies Zener Diode, 12V V(Z), 5%, 0.225W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-3
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer Vishay
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 30 Ω
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.225 W
Reference Voltage-Nom 12 V
Surface Mount YES
Technology ZENER
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tol-Max 5%
Working Test Current 20 mA

Alternate Parts for MMBZ5242B-E3-08

This table gives cross-reference parts and alternative options found for MMBZ5242B-E3-08. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBZ5242B-E3-08, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MMBZ5242B-G3-08 Vishay Intertechnologies Check for Price Zener Diode, 12V V(Z), 5%, 0.225W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 MMBZ5242B-E3-08 vs MMBZ5242B-G3-08
MMBZ5242B-13-F Diodes Incorporated Check for Price Zener Diode, 12V V(Z), 5%, 0.35W, MMBZ5242B-E3-08 vs MMBZ5242B-13-F
MMBZ5242B KEC Check for Price Zener Diode, 12V V(Z), 5%, 0.3W, Silicon, Unidirectional, SOT-23, 3 PIN MMBZ5242B-E3-08 vs MMBZ5242B
MMBZ5242B-7 Diodes Incorporated Check for Price Zener Diode, 12V V(Z), 5%, 0.35W, Silicon, Unidirectional, PLASTIC PACKAGE-3 MMBZ5242B-E3-08 vs MMBZ5242B-7
MMBZ5242B_NL Fairchild Semiconductor Corporation Check for Price Zener Diode, 12V V(Z), 5%, 0.35W, Silicon, Unidirectional, SOT-23, 3 PIN MMBZ5242B-E3-08 vs MMBZ5242B_NL
MMBZ5242B International Semiconductor Inc Check for Price Zener Diode, 12V V(Z), 5%, 0.35W, Silicon, Unidirectional MMBZ5242B-E3-08 vs MMBZ5242B
MMBZ5242B-T1 Won-Top Electronics Co Ltd Check for Price Zener Diode, 12V V(Z), 5%, 0.35W, Silicon, Unidirectional, PLASTIC PACKAGE-3 MMBZ5242B-E3-08 vs MMBZ5242B-T1
MMBZ5242B Taiwan Semiconductor Check for Price Zener Diode, 12V V(Z), 5%, 0.35W, MMBZ5242B-E3-08 vs MMBZ5242B
MMBZ5242B-T1 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Zener Diode, 13V V(Z), 5%, 0.35W, Silicon, Unidirectional, PLASTIC PACKAGE-3 MMBZ5242B-E3-08 vs MMBZ5242B-T1
MMBZ5242B-TP-HF Micro Commercial Components Check for Price Zener Diode, 12V V(Z), 5%, 0.35W, MMBZ5242B-E3-08 vs MMBZ5242B-TP-HF
Part Number Manufacturer Composite Price Description Compare
BZX84C16-7-F Diodes Incorporated $0.0204 Zener Diode, 16V V(Z), 5.56%, 0.35W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 MMBZ5242B-E3-08 vs BZX84C16-7-F
BZX84B18LT1G onsemi $0.0360 250 mW; Zener Diode Voltage Regulator 18 V, SOT-23 (TO-236) 3 LEAD, 3000-REEL MMBZ5242B-E3-08 vs BZX84B18LT1G
BZX84B16-7-F Diodes Incorporated $0.0601 Zener Diode, 16V V(Z), 2%, 0.35W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 MMBZ5242B-E3-08 vs BZX84B16-7-F
BZX84-A15,215 Nexperia $0.2649 BZX84 series - Voltage regulator diodes@en-us TO-236 3-Pin MMBZ5242B-E3-08 vs BZX84-A15,215
BZX84A15 YAGEO Corporation Check for Price Zener Diode, 15V V(Z), 1%, 0.35W, Silicon, Unidirectional MMBZ5242B-E3-08 vs BZX84A15
MMBZ5242B onsemi Check for Price 225 mW 12 V ±5% Zener Diode Voltage Regulator, 3000-REEL MMBZ5242B-E3-08 vs MMBZ5242B
BZX84C15 Taiwan Semiconductor Check for Price Zener Diode, 15V V(Z), 6.12%, 0.35W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3 MMBZ5242B-E3-08 vs BZX84C15
MMBZ5242 General Instrument Corp Check for Price Zener Diode, 12V V(Z), Silicon, Unidirectional, MMBZ5242B-E3-08 vs MMBZ5242
BZX84C18 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Zener Diode, 18V V(Z), 5%, 0.35W, Silicon, Unidirectional, PLASTIC PACKAGE-3 MMBZ5242B-E3-08 vs BZX84C18
BZX84B18TRL YAGEO Corporation Check for Price Zener Diode, 18V V(Z), 2%, 0.35W, Silicon, Unidirectional MMBZ5242B-E3-08 vs BZX84B18TRL

MMBZ5242B-E3-08 Related Parts
