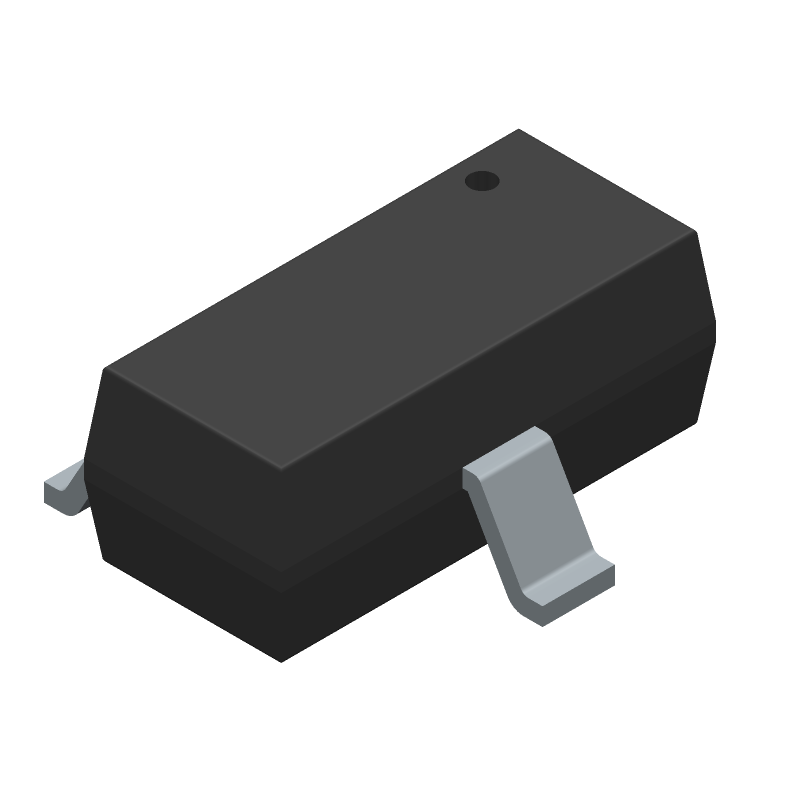

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBTA06 by onsemi
Results Overview of MMBTA06 by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMBTA06 Information
MMBTA06 by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBTA06
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2454027RL
|
Farnell | TRANSISTOR, BIPOL, NPN, 80V, SOT-23-3 RoHS: Compliant Min Qty: 500 Lead time: 34 Weeks, 1 Days Container: Reel | 0 |
|
$0.0461 / $0.0834 | Buy Now |
|
DISTI #
2454027
|
Farnell | TRANSISTOR, BIPOL, NPN, 80V, SOT-23-3 RoHS: Compliant Min Qty: 5 Lead time: 34 Weeks, 1 Days Container: Cut Tape | 0 |
|
$0.0461 / $0.2939 | Buy Now |
|
|
Bristol Electronics | 504 |
|
RFQ | ||
|
|
Quest Components | TRANSISTOR,BJT,NPN,80V V(BR)CEO,500MA I(C),TO-236AA | 1406 |
|
$0.0420 / $0.2100 | Buy Now |
|
DISTI #
MMBTA06
|
EBV Elektronik | Transistor GP BJT NPN 80V 05A 3Pin SOT23 TR (Alt: MMBTA06) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for MMBTA06
MMBTA06 CAD Models
MMBTA06 Part Data Attributes
|
|
MMBTA06
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMBTA06
onsemi
NPN General Purpose Amplifier, SOT-23-3, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-23-3 | |
| Package Description | SOT-23, 3 PIN | |
| Manufacturer Package Code | 318BM | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.5 A | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.225 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
Alternate Parts for MMBTA06
This table gives cross-reference parts and alternative options found for MMBTA06. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBTA06, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMBTA06 | Rectron Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 1-Element, NPN, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 | MMBTA06 vs MMBTA06 |
| MMBTA06G-AE3-R | Unisonic Technologies Co Ltd | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, HALOGEN FREE PACKAGE-3 | MMBTA06 vs MMBTA06G-AE3-R |
| FMMTA06TC | Diodes Incorporated | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN | MMBTA06 vs FMMTA06TC |
| MMBTA06LT3 | onsemi | Check for Price | 500mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, CASE 318-08, TO-236, 3 PIN | MMBTA06 vs MMBTA06LT3 |
| MMBTA06LT1 | LRC Leshan Radio Co Ltd | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), NPN, | MMBTA06 vs MMBTA06LT1 |
| PMBTA06 | YAGEO Corporation | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, | MMBTA06 vs PMBTA06 |
| MMBTA06LT1 | onsemi | Check for Price | 500mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, CASE 318-08, TO-236, 3 PIN | MMBTA06 vs MMBTA06LT1 |
MMBTA06 Frequently Asked Questions (FAQ)
-
The MMBTA06 can operate safely between -55°C to 150°C, but the recommended operating temperature range is -40°C to 125°C.
-
To ensure proper biasing, the base-emitter voltage (VBE) should be between 0.6V to 0.8V, and the collector-emitter voltage (VCE) should be at least 1V higher than the base-emitter voltage.
-
The MMBTA06 can handle a maximum continuous collector current (IC) of 500mA, and a peak current of 1A for a short duration (less than 100ms).
-
To protect the MMBTA06 from ESD, handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag or container.
-
Yes, the MMBTA06 can be used as a switch, but it's not recommended due to its relatively low current handling capacity and limited power dissipation. A more suitable transistor for switching applications would be a higher-power device.
