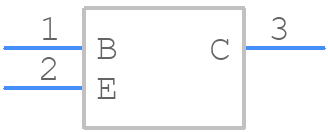

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBT5401-TP by Micro Commercial Components
Results Overview of MMBT5401-TP by Micro Commercial Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMBT5401-TP Information
MMBT5401-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBT5401-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9744
|
Newark | Transistor, Pnp, 150V, 0.6A, Sot-23 Rohs Compliant: Yes |Micro Commercial Components MMBT5401-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3000 |
|
$0.0520 / $0.1530 | Buy Now |
|
DISTI #
MMBT5401-TPCT-ND
|
DigiKey | TRANS PNP 150V 0.6A SOT-23 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1991 In Stock |
|
$0.0175 / $0.1300 | Buy Now |
|
DISTI #
833-MMBT5401-TP
|
Mouser Electronics | Bipolar Transistors - BJT 600mA 150V RoHS: Compliant | 9168 |
|
$0.0230 / $0.1700 | Buy Now |
|
DISTI #
MMBT5401-TP
|
TME | Transistor: PNP, bipolar, 150V, 0.6A, 300mW, SOT23 Min Qty: 25 | 3775 |
|
$0.0157 / $0.0320 | Buy Now |
|
|
New Advantage Corporation | MMBT5401 Series PNP 300 mW 150 V SMT Plastic Encapsulate Transistor - SOT-23-3 RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 426000 |
|
$0.0151 / $0.0163 | Buy Now |
Part Details for MMBT5401-TP
MMBT5401-TP CAD Models
MMBT5401-TP Part Data Attributes
|
|
MMBT5401-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MMBT5401-TP
Micro Commercial Components
Small Signal Bipolar Transistor, 0.6A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Emitter Voltage-Max | 150 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
Alternate Parts for MMBT5401-TP
This table gives cross-reference parts and alternative options found for MMBT5401-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBT5401-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMBT5401LT3 | onsemi | Check for Price | High Voltage PNP Bipolar Transistor, SOT-23 (TO-236) 3 LEAD, 10000-REEL | MMBT5401-TP vs MMBT5401LT3 |
| MMBT5401LT1 | SynSemi Inc | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), PNP | MMBT5401-TP vs MMBT5401LT1 |
| KST5401S62Z | Fairchild Semiconductor Corporation | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon, | MMBT5401-TP vs KST5401S62Z |
| KST5401MTF | onsemi | Check for Price | PNP Epitaxial Silicon Transistor, SOT-23-3, 3000-REEL | MMBT5401-TP vs KST5401MTF |
| MMBT5401_NL | Fairchild Semiconductor Corporation | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN | MMBT5401-TP vs MMBT5401_NL |
| MMBT5401LT1 | Rectron Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3 | MMBT5401-TP vs MMBT5401LT1 |
| MMBT5401 | Weitronic Enterprise Co Ltd | Check for Price | Small Signal Bipolar Transistor | MMBT5401-TP vs MMBT5401 |
| MMBT5401LT3 | Motorola Semiconductor Products | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon, TO-236AB, PLASTIC, CASE 318-08, 3 PIN | MMBT5401-TP vs MMBT5401LT3 |
| KST5401 | Samsung Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN | MMBT5401-TP vs KST5401 |
MMBT5401-TP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MMBT5401-TP is -55°C to 150°C.
-
No, the MMBT5401-TP is a general-purpose NPN transistor with a moderate power rating, suitable for small signal amplification and switching applications.
-
The MMBT5401-TP has a transition frequency (fT) of around 300 MHz, making it suitable for low-to-moderate frequency applications. However, it may not be the best choice for high-frequency applications above 100 MHz.
-
The MMBT5401-TP has a relatively high noise figure, making it less suitable for low-noise applications. If low noise is a critical requirement, a different transistor may be a better choice.
-
While the MMBT5401-TP can be used in switching applications, its moderate power rating and relatively slow switching times may not make it the best choice for high-frequency switching power supplies.
