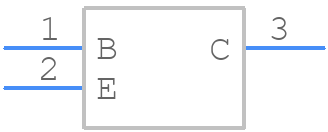

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBT3906HE3-TP by Micro Commercial Components
Results Overview of MMBT3906HE3-TP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMBT3906HE3-TP Information
MMBT3906HE3-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBT3906HE3-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-MMBT3906HE3-TPCT-ND
|
DigiKey | TRANS 40V 0.2A SOT-23 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
19182 In Stock |
|
$0.0138 / $0.1400 | Buy Now |
|
DISTI #
833-MMBT3906HE3-TP
|
Mouser Electronics | Bipolar Transistors - BJT PNP -40Vcbo -40Vceo Vebo -5V -200mA RoHS: Compliant | 7155 |
|
$0.0170 / $0.1400 | Buy Now |
Part Details for MMBT3906HE3-TP
MMBT3906HE3-TP CAD Models
MMBT3906HE3-TP Part Data Attributes
|
|
MMBT3906HE3-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MMBT3906HE3-TP
Micro Commercial Components
Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-609 Code | e3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | MATTE TIN | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
MMBT3906HE3-TP Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for MMBT3906HE3-TP is -55°C to 150°C.
-
Yes, MMBT3906HE3-TP is a RoHS-compliant device, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The MSL of MMBT3906HE3-TP is 1, which means it can withstand exposure to moisture for up to 30 days without being damaged.
-
Yes, MMBT3906HE3-TP is suitable for high-reliability applications due to its high-quality manufacturing process and rigorous testing procedures.
-
The typical storage life of MMBT3906HE3-TP is 12 months from the date of shipment, provided it is stored in its original packaging and under recommended storage conditions.
