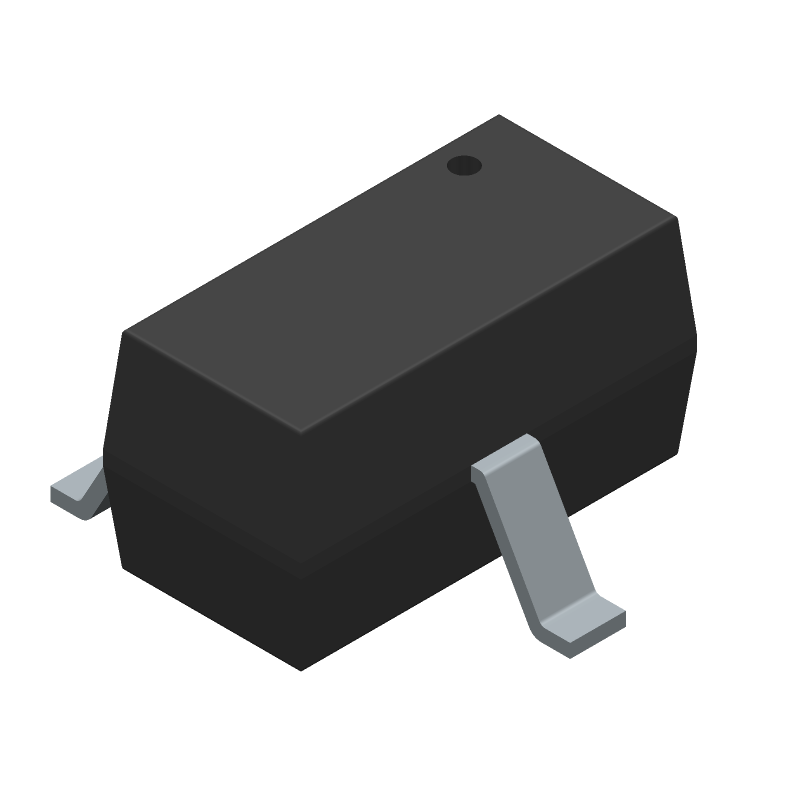

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBT3904TT1G by onsemi
Results Overview of MMBT3904TT1G by onsemi
- Distributor Offerings: (37 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMBT3904TT1G Information
MMBT3904TT1G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBT3904TT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88H4787
|
Newark | Bjt, Npn, 40V, Sc-75, Transistor Polarity:Npn, Collector Emitter Voltage Max:40V, Continuous Collector Current:200Ma, Power Dissipation:300Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Transition Frequency:300Mhz Rohs Compliant: Yes |Onsemi MMBT3904TT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 5028 |
|
$0.0210 / $0.1010 | Buy Now |
|
DISTI #
85W3166
|
Newark | Bjt, Npn, 40V, Sc-75 Full Reel, Transistor Polarity:Npn, Collector Emitter Voltage Max:40V, Continuous Collector Current:200Ma, Power Dissipation:300Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Product Range:- Rohs Compliant: Yes |Onsemi MMBT3904TT1G RoHS: Compliant Min Qty: 30000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0160 / $0.0170 | Buy Now |
|
DISTI #
MMBT3904TT1GOSCT-ND
|
DigiKey | TRANS NPN 40V 0.2A SC75 SOT416 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
54045 In Stock |
|
$0.0154 / $0.1500 | Buy Now |
|
DISTI #
MMBT3904TT1G
|
Avnet Americas | Single Bipolar Transistor, NPN, 40 V, 200 mA, 200 mW, SOT-416, 3 Pin, Surface Mount - Tape and Reel (Alt: MMBT3904TT1G) RoHS: Compliant Min Qty: 55556 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 135000 Partner Stock |
|
$0.0100 / $0.0115 | Buy Now |
|
DISTI #
88H4787
|
Avnet Americas | Single Bipolar Transistor, NPN, 40 V, 200 mA, 200 mW, SOT-416, 3 Pin, Surface Mount - Product that comes on tape, but is not reeled (Alt: 88H4787) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks, 4 Days Container: Ammo Pack | 4928 Partner Stock |
|
$0.0320 / $0.0710 | Buy Now |
|
DISTI #
MMBT3904TT1G
|
Avnet Americas | Single Bipolar Transistor, NPN, 40 V, 200 mA, 200 mW, SOT-416, 3 Pin, Surface Mount - Tape and Reel (Alt: MMBT3904TT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0141 / $0.0151 | Buy Now |
|
DISTI #
863-MMBT3904TT1G
|
Mouser Electronics | Bipolar Transistors - BJT 200mA 40V NPN RoHS: Compliant | 163324 |
|
$0.0150 / $0.1400 | Buy Now |
|
DISTI #
P40:2555_19938909
|
Arrow Electronics | Trans GP BJT NPN 40V 0.2A 300mW 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Date Code: 2242 | Europe - 1193202 |
|
$0.0105 / $0.0421 | Buy Now |
|
DISTI #
V36:1790_07323131
|
Arrow Electronics | Trans GP BJT NPN 40V 0.2A 300mW 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2425 | Americas - 258000 |
|
$0.0093 / $0.0199 | Buy Now |
|
DISTI #
V79:2366_28988827
|
Arrow Electronics | Trans GP BJT NPN 40V 0.2A 300mW 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2331 | Americas - 50561 |
|
$0.0131 / $0.0980 | Buy Now |
Part Details for MMBT3904TT1G
MMBT3904TT1G CAD Models
MMBT3904TT1G Part Data Attributes
|
|
MMBT3904TT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMBT3904TT1G
onsemi
200 mA, 40 V NPN Bipolar Junction Transistor, SC-75 (SOT-416) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-75 (SOT-416) 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 463-01 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 30 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.15 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 250 ns | |
| Turn-on Time-Max (ton) | 70 ns |
Alternate Parts for MMBT3904TT1G
This table gives cross-reference parts and alternative options found for MMBT3904TT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBT3904TT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMBT3904TT1 | onsemi | Check for Price | 200 mA, 40 V NPN Bipolar Junction Transistor, SC-75 (SOT-416) 3 LEAD, 3000-REEL | MMBT3904TT1G vs MMBT3904TT1 |
MMBT3904TT1G Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for MMBT3904TT1G is -55°C to 150°C.
-
To ensure reliability, follow the recommended derating curves for voltage and current, and ensure proper thermal management, such as using a heat sink or thermal interface material.
-
The maximum allowable power dissipation for MMBT3904TT1G is 625 mW at 25°C free-air temperature, and it decreases as the temperature increases.
-
