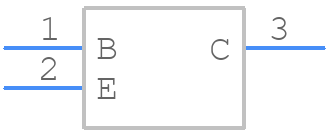

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBT3904HE3-TP by Micro Commercial Components
Results Overview of MMBT3904HE3-TP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMBT3904HE3-TP Information
MMBT3904HE3-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBT3904HE3-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-MMBT3904HE3-TPCT-ND
|
DigiKey | TRANS 40V 0.2A SOT-23 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6353 In Stock |
|
$0.0138 / $0.1400 | Buy Now |
|
DISTI #
833-MMBT3904HE3-TP
|
Mouser Electronics | Bipolar Transistors - BJT 60Vcbo 40Vceo 6Vebo 200mA 350mW RoHS: Compliant | 0 |
|
$0.0150 / $0.1400 | Order Now |
Part Details for MMBT3904HE3-TP
MMBT3904HE3-TP CAD Models
MMBT3904HE3-TP Part Data Attributes
|
|
MMBT3904HE3-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MMBT3904HE3-TP
Micro Commercial Components
Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-609 Code | e3 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | MATTE TIN | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
MMBT3904HE3-TP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MMBT3904HE3-TP is -55°C to 150°C.
-
Yes, the MMBT3904HE3-TP is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The MMBT3904HE3-TP is a general-purpose NPN transistor suitable for a wide range of applications, including amplifiers, switches, and voltage regulators.
-
While the MMBT3904HE3-TP can be used in some high-frequency applications, its transition frequency (fT) is around 300 MHz, which may not be suitable for very high-frequency applications.
-
To ensure reliability, follow proper PCB design and layout guidelines, ensure proper thermal management, and operate the transistor within its recommended specifications.
