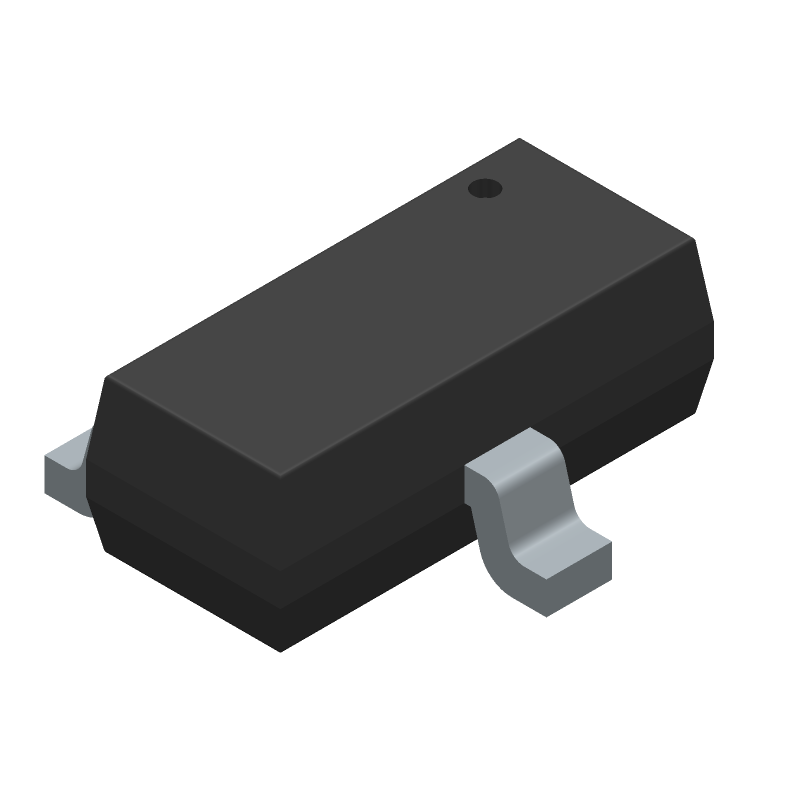

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBT2907AQ-7-F by Diodes Incorporated
Results Overview of MMBT2907AQ-7-F by Diodes Incorporated
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMBT2907AQ-7-F Information
MMBT2907AQ-7-F by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBT2907AQ-7-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31-MMBT2907AQ-7-FCT-ND
|
DigiKey | TRANS PNP 60V 0.6A SOT-23-3 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3468 In Stock |
|
$0.0192 / $0.1800 | Buy Now |
|
DISTI #
MMBT2907AQ-7-F
|
Avnet Americas | Transistor GP BJT PNP 60V 0.6A 3-Pin SOT-23 T/R - Tape and Reel (Alt: MMBT2907AQ-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.0172 / $0.0175 | Buy Now |
|
DISTI #
621-MMBT2907AQ-7-F
|
Mouser Electronics | Bipolar Transistors - BJT General Purpose Transistor SOT23 T&R 3K RoHS: Compliant | 5040 |
|
$0.0220 / $0.1800 | Buy Now |
|
|
Bristol Electronics | Min Qty: 89 | 380 |
|
$0.0375 / $0.0563 | Buy Now |
|
|
Quest Components | 304 |
|
$0.0500 / $0.0750 | Buy Now | |
|
DISTI #
MMBT2907AQ-7-F
|
Avnet Asia | Transistor GP BJT PNP 60V 0.6A 3-Pin SOT-23 T/R (Alt: MMBT2907AQ-7-F) RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
$0.0230 / $0.0257 | Buy Now |
|
DISTI #
MMBT2907AQ-7-F
|
Avnet Silica | Transistor GP BJT PNP 60V 06A 3Pin SOT23 TR (Alt: MMBT2907AQ-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 3000 |
|
Buy Now | |
|
|
Vyrian | Transistors | 60633 |
|
RFQ |
Part Details for MMBT2907AQ-7-F
MMBT2907AQ-7-F CAD Models
MMBT2907AQ-7-F Part Data Attributes
|
|
MMBT2907AQ-7-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
MMBT2907AQ-7-F
Diodes Incorporated
Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, GREEN, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | HIGH RELIABILITY | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Emitter Voltage-Max | 60 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 50 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 0.35 W | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 200 MHz | |
| Turn-off Time-Max (toff) | 100 ns | |
| Turn-on Time-Max (ton) | 45 ns |
MMBT2907AQ-7-F Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MMBT2907AQ-7-F is -55°C to 150°C.
-
Yes, the MMBT2907AQ-7-F is suitable for high-frequency applications up to 100 MHz due to its low capacitance and high transition frequency (fT).
-
The recommended storage temperature range for the MMBT2907AQ-7-F is -55°C to 150°C.
-
Yes, the MMBT2907AQ-7-F is lead-free and RoHS (Restriction of Hazardous Substances) compliant.
-
The typical saturation voltage (VCE(sat)) for the MMBT2907AQ-7-F is 0.1V at IC = 10mA and IB = 1mA.
