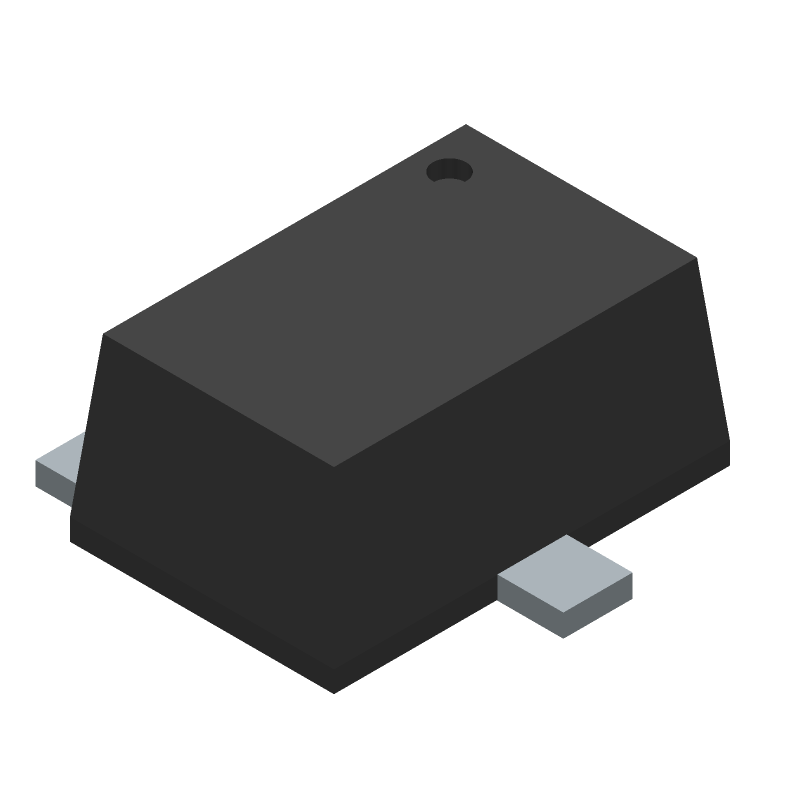

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBT2222AM3T5G by onsemi
Results Overview of MMBT2222AM3T5G by onsemi
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMBT2222AM3T5G Information
MMBT2222AM3T5G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBT2222AM3T5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85W3164
|
Newark | Bipolar Transistor, Npn, 40V, Transistor Polarity:Npn, Collector Emitter Voltage Max:40V, Continuous Collector Current:600Ma, Power Dissipation:640Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Transition Frequency:300Mhz Rohs Compliant: Yes |Onsemi MMBT2222AM3T5G RoHS: Compliant Min Qty: 24000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.0420 | Buy Now |
|
DISTI #
05R9073
|
Newark | Bipolar Transistor, Npn, 40V, Full Reel, Transistor Polarity:Npn, Collector Emitter Voltage Max:40V, Continuous Collector Current:600Ma, Power Dissipation:640Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Product Range:- Rohs Compliant: Yes |Onsemi MMBT2222AM3T5G RoHS: Compliant Min Qty: 16000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0250 / $0.0360 | Buy Now |
|
DISTI #
MMBT2222AM3T5GOSCT-ND
|
DigiKey | TRANS NPN 40V 0.6A SOT-723 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
72142 In Stock |
|
$0.0205 / $0.2000 | Buy Now |
|
DISTI #
MMBT2222AM3T5G
|
Avnet Americas | Transistor GP BJT NPN 40V 0.6A 3-Pin SOT-723 T/R - Tape and Reel (Alt: MMBT2222AM3T5G) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 8 Weeks, 0 Days Container: Reel | 40000 |
|
$0.0204 / $0.0217 | Buy Now |
|
DISTI #
863-MMBT2222AM3T5G
|
Mouser Electronics | Bipolar Transistors - BJT SS SOT-723 GP TRANSISTOR RoHS: Compliant | 41641 |
|
$0.0240 / $0.2000 | Buy Now |
|
DISTI #
V72:2272_07278875
|
Arrow Electronics | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2141 Container: Cut Strips | Americas - 4905 |
|
$0.1949 / $0.1975 | Buy Now |
|
DISTI #
V72:2272_26884817
|
Arrow Electronics | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2220 Container: Cut Strips | Americas - 2995 |
|
$0.1949 / $0.1971 | Buy Now |
|
DISTI #
V79:2366_28619978
|
Arrow Electronics | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2220 | Americas - 768 |
|
$0.0205 / $0.1930 | Buy Now |
|
|
Onlinecomponents.com | NPN Bipolar Transistor RoHS: Compliant |
32000 In Stock |
|
$0.0200 / $0.0268 | Buy Now |
|
DISTI #
85999195
|
Verical | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 9837 Package Multiple: 1 Date Code: 2101 | Americas - 1028000 |
|
$0.0381 | Buy Now |
Part Details for MMBT2222AM3T5G
MMBT2222AM3T5G CAD Models
MMBT2222AM3T5G Part Data Attributes
|
|
MMBT2222AM3T5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMBT2222AM3T5G
onsemi
NPN Bipolar Transistor, SOT-723 3 LEAD, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-723 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 631AA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 40 | |
| JESD-30 Code | R-PDSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.64 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 285 ns | |
| Turn-on Time-Max (ton) | 35 ns |
Alternate Parts for MMBT2222AM3T5G
This table gives cross-reference parts and alternative options found for MMBT2222AM3T5G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBT2222AM3T5G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PMBT2222,235 | Nexperia | Check for Price | PMBT2222 - NPN switching transistor@en-us TO-236 3-Pin | MMBT2222AM3T5G vs PMBT2222,235 |
| SMBT2222AE6327HTSA1 | Infineon Technologies AG | $0.0338 | Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon | MMBT2222AM3T5G vs SMBT2222AE6327HTSA1 |
| MMBT2222LT1 | onsemi | Check for Price | NPN Bipolar Transistor, SOT-23 (TO-236) 3 LEAD, 3000-REEL | MMBT2222AM3T5G vs MMBT2222LT1 |
| MMBT2222AT | onsemi | Check for Price | (Legacy Fairchild) NPN General Purpose Amplifier, 3000-REEL | MMBT2222AM3T5G vs MMBT2222AT |
| SST2222AT116 | ROHM Semiconductor | $0.0859 | Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SC-59, 3 PIN | MMBT2222AM3T5G vs SST2222AT116 |
| SST4401T116 | ROHM Semiconductor | $0.0329 | Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SST3, 3 PIN | MMBT2222AM3T5G vs SST4401T116 |
| MMBT2222A | Diodes Incorporated | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN | MMBT2222AM3T5G vs MMBT2222A |
| MMBT2222A-13 | Diodes Incorporated | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, LEAD FREE, PLASTIC PACKAGE-3 | MMBT2222AM3T5G vs MMBT2222A-13 |
| MMBT2222ATT3G | onsemi | Check for Price | NPN Bipolar Junction Transistor, SC-75 (SOT-416) 3 LEAD, 10000-REEL | MMBT2222AM3T5G vs MMBT2222ATT3G |
| MMBT2222A-13-F | Diodes Incorporated | $0.0754 | Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-3 | MMBT2222AM3T5G vs MMBT2222A-13-F |
