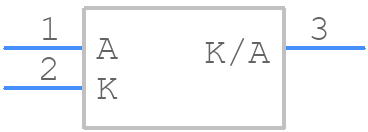

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBD452LT1G by onsemi
Results Overview of MMBD452LT1G by onsemi
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Telecommunications
Renewable Energy
MMBD452LT1G Information
MMBD452LT1G by onsemi is a Microwave Mixer Diode.
Microwave Mixer Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMBD452LT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AC6119
|
Newark | Schottky Diode, 0.5Pf, Sot-23, Diode Configuration:Dual Series, Reverse Voltage Vr:30V, Forward Current If Max:-, Forward Voltage Vf Max:600Mv, Capacitance Ct:0.9Pf, Diode Case Style:Sot-23, No. Of Pins:3 Pin, Product Range:-, Rohs Compliant: Yes |Onsemi MMBD452LT1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 79 |
|
$0.1240 / $0.4320 | Buy Now |
|
DISTI #
MMBD452LT1GOSCT-ND
|
DigiKey | DIODE SCHOTTKY 30V 225MW SOT23-3 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8867 In Stock |
|
$0.0593 / $0.1700 | Buy Now |
|
DISTI #
MMBD452LT1G
|
Avnet Americas | Diode Schottky 30V 3-Pin SOT-23 T/R - Tape and Reel (Alt: MMBD452LT1G) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0597 | Buy Now |
|
DISTI #
863-MMBD452LT1G
|
Mouser Electronics | Schottky Diodes & Rectifiers 30V 225mW Dual RoHS: Compliant | 38593 |
|
$0.0690 / $0.3700 | Buy Now |
|
DISTI #
V36:1790_07277513
|
Arrow Electronics | RF Diode Schottky 30V 225mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2447 | Americas - 3000 |
|
$0.0593 / $0.0655 | Buy Now |
|
|
Onlinecomponents.com | Diode Schottky 30V Automotive 3-Pin SOT-23 T/R RoHS: Compliant |
12000 In Stock |
|
$0.0547 / $0.0619 | Buy Now |
|
DISTI #
85998041
|
Verical | RF Diode Schottky 30V 225mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3917 Package Multiple: 1 | Americas - 784585 |
|
$0.0958 | Buy Now |
|
DISTI #
88175696
|
Verical | RF Diode Schottky 30V 225mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 39000 |
|
$0.0569 | Buy Now |
|
DISTI #
83684348
|
Verical | RF Diode Schottky 30V 225mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2433 | Americas - 12000 |
|
$0.0744 / $0.0805 | Buy Now |
|
DISTI #
87891578
|
Verical | RF Diode Schottky 30V 225mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 409 Package Multiple: 1 Date Code: 2317 | Americas - 9915 |
|
$0.0888 / $0.3970 | Buy Now |
Part Details for MMBD452LT1G
MMBD452LT1G CAD Models
MMBD452LT1G Part Data Attributes
|
|
MMBD452LT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMBD452LT1G
onsemi
30 V Schottky Diode, dual, series, UHF, SOT-23 (TO-236) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-23 (TO-236) 3 LEAD | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, CASE 318-08, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 318 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.60 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Capacitance-Max | 1.5 pF | |
| Diode Element Material | SILICON | |
| Diode Type | MIXER DIODE | |
| Frequency Band | VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.225 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Type of Schottky Barrier | LOW BARRIER |
Alternate Parts for MMBD452LT1G
This table gives cross-reference parts and alternative options found for MMBD452LT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBD452LT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MA728 | Panasonic Electronic Components | Check for Price | Mixer Diode, L Band, Silicon, ROHS COMPLIANT, SMINI2-F1, SC-76, 2 PIN | MMBD452LT1G vs MA728 |
| SMS3922-005 | Skyworks Solutions Inc | Check for Price | Mixer Diode, Silicon, PLASTIC PACKAGE-3 | MMBD452LT1G vs SMS3922-005 |
| HSMS-2824 | Avago Technologies | Check for Price | SILICON, MIXER DIODE, SOT-23, 3 PIN | MMBD452LT1G vs HSMS-2824 |
| HSMS-2802T30 | Broadcom Limited | Check for Price | Mixer Diode, Silicon | MMBD452LT1G vs HSMS-2802T30 |
| MA4CS102ATR7 | MACOM | Check for Price | Mixer Diode, Silicon, SURFACE MOUNT PACKAGE-3 | MMBD452LT1G vs MA4CS102ATR7 |
| HSMS-2824-TR1 | Avago Technologies | Check for Price | SILICON, MIXER DIODE | MMBD452LT1G vs HSMS-2824-TR1 |
| MA4CS102C | MACOM | Check for Price | Rectifier Diode, | MMBD452LT1G vs MA4CS102C |
| BAT68-05 | Infineon Technologies AG | Check for Price | Mixer Diode, Very High Frequency to Ultra High Frequency, Silicon, SOT-23, 3 PIN | MMBD452LT1G vs BAT68-05 |
| DB3X314F0L | ROHM Semiconductor | Check for Price | Mixer Diode, L Band, Silicon, TO-236AA, SC-59A, 3 PIN | MMBD452LT1G vs DB3X314F0L |
| HSMS-2802L31 | Avago Technologies | Check for Price | SILICON, MIXER DIODE, SOT-23, 3 PIN | MMBD452LT1G vs HSMS-2802L31 |
MMBD452LT1G Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the MMBD452LT1G is -55°C to 150°C.
-
To ensure reliability, follow the recommended storage and handling procedures, and ensure that the device is operated within the recommended operating conditions. Additionally, consider using a moisture-sensitive device handling procedure to prevent damage.
-
The maximum allowable power dissipation for the MMBD452LT1G is 500 mW. Exceeding this limit can cause the device to overheat and fail.
-
Yes, the MMBD452LT1G can be used in switching regulator applications. However, ensure that the device is operated within the recommended operating conditions and that the switching frequency is within the recommended range.
-
To protect the MMBD452LT1G from ESD, handle the device with an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.
