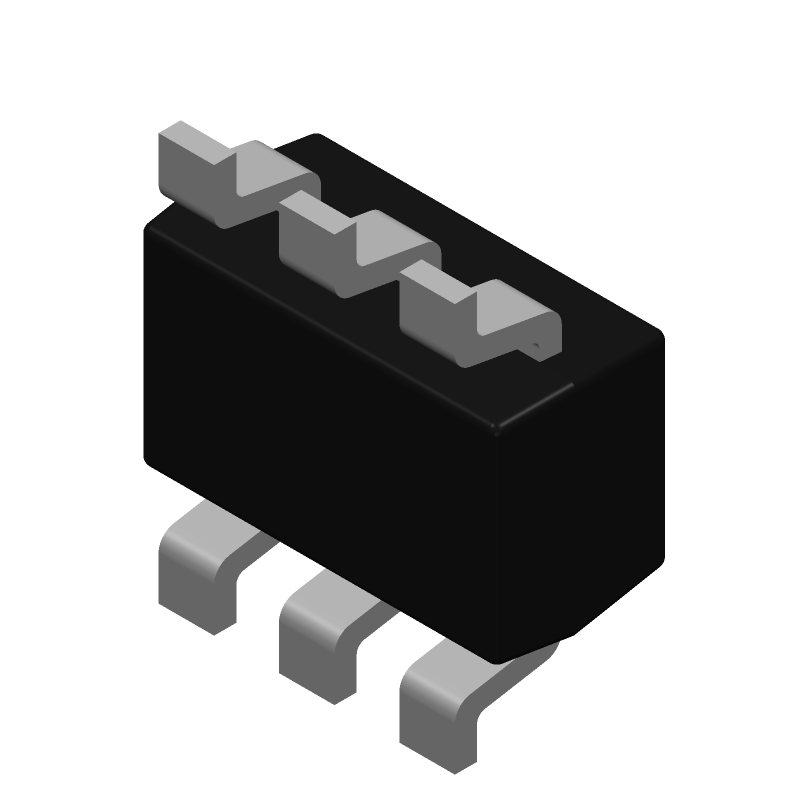

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBD4448HCQW-TP by Micro Commercial Components
Results Overview of MMBD4448HCQW-TP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
MMBD4448HCQW-TP Information
MMBD4448HCQW-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMBD4448HCQW-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MMBD4448HCQWTPMSCT-ND
|
DigiKey | DIODE ARRAY GP 80V 250MA SOT-363 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2990 In Stock |
|
$0.0437 / $0.3400 | Buy Now |
|
DISTI #
833-MMBD4448HCQW-TP
|
Mouser Electronics | Small Signal Switching Diodes DIODE ARRAY 80V 250MA SOT363 RoHS: Compliant | 0 |
|
$0.0720 / $0.3400 | Order Now |
Part Details for MMBD4448HCQW-TP
MMBD4448HCQW-TP CAD Models
MMBD4448HCQW-TP Part Data Attributes
|
|
MMBD4448HCQW-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MMBD4448HCQW-TP
Micro Commercial Components
Rectifier Diode, 4 Element, 0.25A, 80V V(RRM), Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | SOT-363, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Application | FAST RECOVERY | |
| Breakdown Voltage-Min | 80 V | |
| Configuration | COMMON CATHODE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 4 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.25 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 80 V | |
| Reverse Current-Max | 0.1 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Reverse Test Voltage | 70 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for MMBD4448HCQW-TP
This table gives cross-reference parts and alternative options found for MMBD4448HCQW-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBD4448HCQW-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMBD4448HCQW-T1-LF | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, 4 Element, 0.25A, 80V V(RRM), Silicon, | MMBD4448HCQW-TP vs MMBD4448HCQW-T1-LF |
MMBD4448HCQW-TP Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for MMBD4448HCQW-TP is -55°C to 150°C.
-
Yes, MMBD4448HCQW-TP is a RoHS-compliant device, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The typical junction-to-ambient thermal resistance of MMBD4448HCQW-TP is around 120°C/W.
-
Yes, MMBD4448HCQW-TP is designed for high-reliability applications and is suitable for use in aerospace, defense, and other critical systems.
-
The maximum allowable power dissipation for MMBD4448HCQW-TP is 1.5 W.
