MMBD4148CC Information
MMBD4148CC by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMBD4148CC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AC2196
|
Newark | 2 1P Die In A Sot-23 Pkg Rohs Compliant: Yes |Onsemi MMBD4148CC RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 228000 |
|
$0.0280 | Buy Now |
|
DISTI #
86AK1661
|
Newark | Diodes, Rectifiers - Arrays, Diode Configuration:Dual Common Cathode, Repetitive Reverse Voltage Vrrm Max:100V, Forward Current If(Av):200Ma, Forward Voltage Vf Max:1V, Reverse Recovery Time Trr Max:4Ns, Forward Surge Current Ifsm Rohs Compliant: Yes |Onsemi MMBD4148CC RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 1 Container: Reel | 6000 |
|
$0.0530 / $0.0760 | Buy Now |
|
DISTI #
58K9420
|
Newark | Small Signal Diode, 100V 200Ma Sot-23, Diode Configuration:Dual Common Cathode, Repetitive Peak Reverse Voltage:100V, Average Forward Current:200Ma, Forward Voltage Max:1V, Reverse Recovery Time:4Ns, Forward Surge Current:2A Rohs Compliant: Yes |Onsemi MMBD4148CC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2351 |
|
$0.0590 / $0.1760 | Buy Now |
|
DISTI #
47T5378
|
Newark | Small Signal Diode, Dual Common Cathode, 100 V, 200 Ma, 1 V, 4 Ns, 2 A Rohs Compliant: Yes |Onsemi MMBD4148CC RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.1070 / $0.2200 | Buy Now |
|
DISTI #
MMBD4148CCCT-ND
|
DigiKey | DIODE ARR GP 100V 200MA SOT23-3 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
394158 In Stock |
|
$0.0291 / $0.1700 | Buy Now |
|
DISTI #
MMBD4148CC
|
Avnet Americas | Small Signal Switching Diode, Dual Common Cathode, 100 V, 200 mA, 1 V, 4 ns, 2 A, SOT-23, 3 Pins - Tape and Reel (Alt: MMBD4148CC) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 228000 |
|
$0.0274 | Buy Now |
|
DISTI #
58K9420
|
Avnet Americas | Small Signal Switching Diode, Dual Common Cathode, 100 V, 200 mA, 1 V, 4 ns, 2 A, SOT-23, 3 Pins - Product that comes on tape, but is not reeled (Alt: 58K9420) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 53 Weeks, 5 Days Container: Ammo Pack | 2351 Partner Stock |
|
$0.0750 / $0.2140 | Buy Now |
|
DISTI #
47T5378
|
Avnet Americas | Small Signal Switching Diode, Dual Common Cathode, 100 V, 200 mA, 1 V, 4 ns, 2 A, SOT-23, 3 Pins - Product that comes on tape, but is not reeled (Alt: 47T5378) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Lead time: 111 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.0560 / $0.1830 | Buy Now |
|
DISTI #
512-MMBD4148CC
|
Mouser Electronics | Small Signal Switching Diodes High Conductance Ultra Fast RoHS: Compliant | 154510 |
|
$0.0290 / $0.1700 | Buy Now |
|
DISTI #
E02:0323_00046124
|
Arrow Electronics | Diode Small Signal Switching 100V 0.2A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2449 | Europe - 195000 |
|
$0.0298 / $0.0345 | Buy Now |
Part Details for MMBD4148CC
MMBD4148CC CAD Models
MMBD4148CC Part Data Attributes
|
|
MMBD4148CC
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMBD4148CC
onsemi

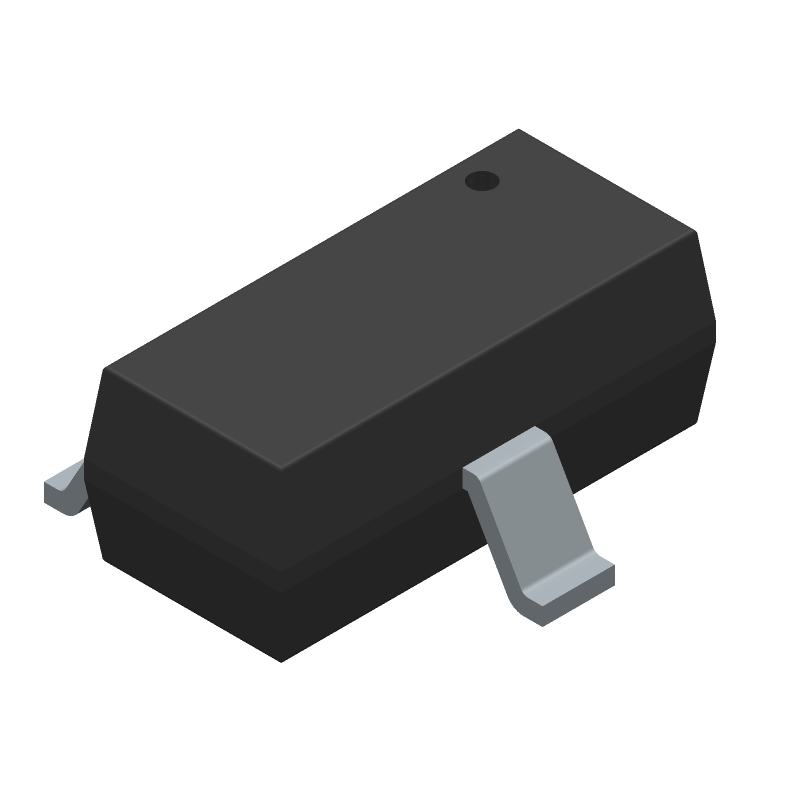

High Conductance Ultra Fast Diode, SOT-23 (TO-236) 2.90x1.30x1.00, 1.90P, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-23 (TO-236) 2.90x1.30x1.00, 1.90P | |
| Package Description | SOT-23, 3 PIN | |
| Manufacturer Package Code | 318 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | ULTRA FAST | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.35 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MMBD4148CC
This table gives cross-reference parts and alternative options found for MMBD4148CC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBD4148CC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMBD4148CC | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, 2 Element, 0.2A, 100V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3 | MMBD4148CC vs MMBD4148CC |
MMBD4148CC Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MMBD4148CC is -55°C to 150°C.
-
Yes, the MMBD4148CC is suitable for switching applications due to its high switching speed and low saturation voltage.
-
To ensure reliability, follow proper handling and storage procedures, and ensure that the device is operated within its recommended operating conditions.
-
The recommended mounting technique for the MMBD4148CC is surface mount technology (SMT) or through-hole mounting, following the manufacturer's recommended land pattern and soldering guidelines.
-
Yes, the MMBD4148CC is suitable for high-frequency applications up to 100 MHz due to its low capacitance and high switching speed.
