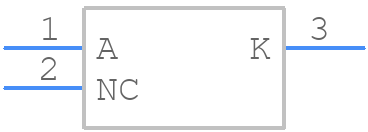

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBD4148-TP by Micro Commercial Components
Results Overview of MMBD4148-TP by Micro Commercial Components
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
MMBD4148-TP Information
MMBD4148-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMBD4148-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9730
|
Newark | Small Signal Diode, 0.2A, 100V, Sot-23 Rohs Compliant: Yes |Micro Commercial Components MMBD4148-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 14480 |
|
$0.0270 / $0.1000 | Buy Now |
|
DISTI #
MMBD4148TPMSCT-ND
|
DigiKey | DIODE STANDARD 100V 150MA SOT23 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
65468 In Stock |
|
$0.0299 / $0.1100 | Buy Now |
|
DISTI #
833-MMBD4148-TP
|
Mouser Electronics | Small Signal Switching Diodes 200mA 100V RoHS: Compliant | 22585 |
|
$0.0180 / $0.1100 | Buy Now |
|
DISTI #
E54:1762_08672259
|
Arrow Electronics | Diode Switching 100V 0.2A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Date Code: 2502 | Europe - 3000 |
|
$0.0121 / $0.0184 | Buy Now |
|
DISTI #
87628061
|
Verical | Diode Switching 100V 0.2A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2502 | Americas - 3000 |
|
$0.0121 / $0.0184 | Buy Now |
|
|
Bristol Electronics | 472910 |
|
RFQ | ||
|
|
Quest Components | 0.15 A, SILICON, SIGNAL DIODE | 7200 |
|
$0.0570 / $0.2850 | Buy Now |
|
|
Quest Components | 0.15 A, SILICON, SIGNAL DIODE | 3012 |
|
$0.0360 / $0.0800 | Buy Now |
|
|
Quest Components | 0.15 A, SILICON, SIGNAL DIODE | 1 |
|
$0.1830 | Buy Now |
|
DISTI #
MMBD4148-TP
|
TME | Diode: switching, SMD, 100V, 200mA, 4ns, SOT23, Ufmax: 0.855V Min Qty: 25 | 0 |
|
$0.0157 / $0.0320 | RFQ |
Part Details for MMBD4148-TP
MMBD4148-TP CAD Models
MMBD4148-TP Part Data Attributes
|
|
MMBD4148-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MMBD4148-TP
Micro Commercial Components
Rectifier Diode, 1 Element, 0.15A, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.855 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 1 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.15 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.35 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 0.025 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for MMBD4148-TP
This table gives cross-reference parts and alternative options found for MMBD4148-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBD4148-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMBD4148 | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Rectifier Diode, 1 Element, 0.2A, 75V V(RRM), Silicon, PLASTIC PACKAGE-3 | MMBD4148-TP vs MMBD4148 |
| MMBD4148 | Microsemi Corporation | Check for Price | Rectifier Diode, 1 Element, 0.15A, 75V V(RRM), Silicon, | MMBD4148-TP vs MMBD4148 |
| MMBD4148 | PanJit Semiconductor | Check for Price | Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 | MMBD4148-TP vs MMBD4148 |
| CMBD914 | Continental Device India Ltd | Check for Price | Rectifier Diode, 1 Element, 0.2A, Silicon, | MMBD4148-TP vs CMBD914 |
| MMBD4148-G | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Rectifier Diode, 1 Element, 0.2A, 75V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3 | MMBD4148-TP vs MMBD4148-G |
| MMBD4148 | DC Components Co Ltd | Check for Price | Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon | MMBD4148-TP vs MMBD4148 |
| MMBD4148 | Texas Instruments | Check for Price | 0.2A, 100V, SILICON, SIGNAL DIODE, TO-236AB | MMBD4148-TP vs MMBD4148 |
| MMBD4148 | WEITRON INTERNATIONAL CO., LTD. | Check for Price | Rectifier Diode, 1 Element, 0.2A, 100V V(RRM) | MMBD4148-TP vs MMBD4148 |
| MMBD4148 | Sensitron Semiconductors | Check for Price | Rectifier Diode, 1 Element, 0.2A, 75V V(RRM), Silicon, PLASTIC PACKAGE-3 | MMBD4148-TP vs MMBD4148 |
| CMBD914 | Rectron Semiconductor | Check for Price | Rectifier Diode, 1 Element, 0.2A, 100V V(RRM), Silicon, PLASTIC PACKAGE-3 | MMBD4148-TP vs CMBD914 |
MMBD4148-TP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the MMBD4148-TP is between 240°C to 260°C for a maximum of 5 seconds.
-
Yes, the MMBD4148-TP is suitable for high-frequency applications due to its low capacitance and fast switching time.
-
The maximum allowable voltage for the MMBD4148-TP is 100V, as specified in the datasheet.
-
Yes, the MMBD4148-TP can be used in switching power supplies due to its fast switching time and low voltage drop.
-
Yes, the MMBD4148-TP is suitable for automotive applications due to its high reliability and ability to withstand high temperatures.
