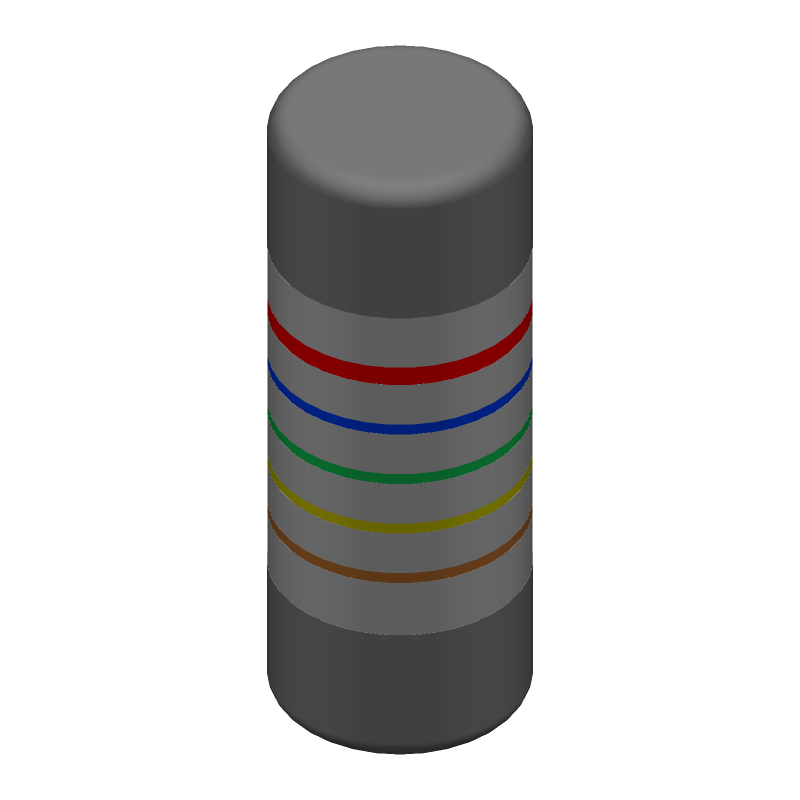

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMB02070C5110FB200 by Vishay Intertechnologies
Results Overview of MMB02070C5110FB200 by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
MMB02070C5110FB200 Information
MMB02070C5110FB200 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MMB02070C5110FB200
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MMB02070C5110FB200
|
Avnet Americas | MMB 0207-50 1% B2 511R - Tape and Reel (Alt: MMB02070C5110FB200) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.0653 / $0.0675 | Buy Now |
|
DISTI #
594-MMB02070C5110FB2
|
Mouser Electronics | MELF Resistors 1W 511ohms 1% 0207 350V RoHS: Compliant | 10523 |
|
$0.0660 / $0.1700 | Buy Now |
|
|
ComSIT USA | PROFESSIONAL THIN FILM MELF RESISTOR Fixed Resistor, Thin Film, 1W, 511ohm, 350V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2309 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
WME8349
|
Rutronik | MM0207 511R 1% 1W TK50 RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Stock DE - 8000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.0395 / $0.0410 | Buy Now |
|
DISTI #
MMB02070C5110FB200
|
Avnet Abacus | MMB 020750 1 B2 511R (Alt: MMB02070C5110FB200) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MMB02070C5110FB200
MMB02070C5110FB200 CAD Models
MMB02070C5110FB200 Part Data Attributes
|
|
MMB02070C5110FB200
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MMB02070C5110FB200
Vishay Intertechnologies
Fixed Resistor, Thin Film, 1W, 511ohm, 350V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2309, MELF
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | MELF | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR; LASER TRIMMABLE; RATED AC VOLTAGE (V): 350; STANDARD: CECC40401-803 | |
| Construction | Cylindrical | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 2.2 mm | |
| Package Length | 5.8 mm | |
| Package Style | MELF | |
| Packing Method | TR, BLISTER, 7 INCH | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 511 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2309 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 350 V |
MMB02070C5110FB200 Frequently Asked Questions (FAQ)
-
The recommended land pattern for MMB02070C5110FB200 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface-mount assembly of chip resistors and arrays.
-
To prevent damage, handle the MMB02070C5110FB200 by the edges, avoid touching the component's surface, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
-
The maximum power rating for the MMB02070C5110FB200 is 0.25 W, and it's essential to ensure that the component does not exceed this rating to prevent overheating and damage.
-
While the MMB02070C5110FB200 is suitable for general-purpose applications, it's not recommended for high-frequency applications (>100 MHz) due to its internal construction and parasitic inductance. For high-frequency applications, consider using specialized resistors designed for high-frequency use.
-
Store the MMB02070C5110FB200 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Keep the storage area clean and dry, and avoid stacking components on top of each other to prevent mechanical stress.
