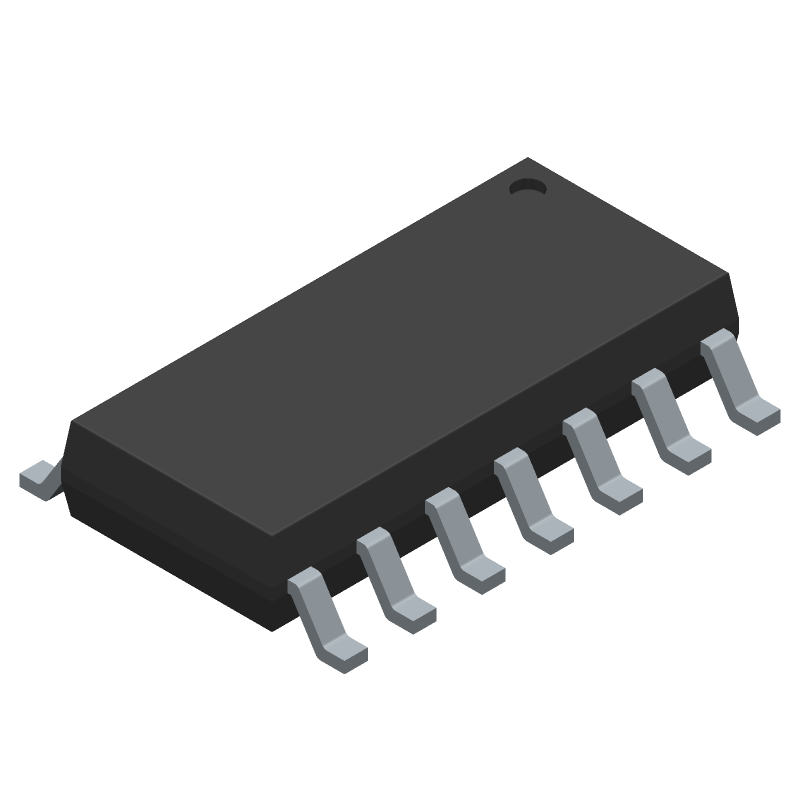

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MM74HC14MX by onsemi
Results Overview of MM74HC14MX by onsemi
- Distributor Offerings: (31 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MM74HC14MX Information
MM74HC14MX by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MM74HC14MX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79K2913
|
Newark | Hex Inverter, Schmitt Trigger Soic-14, Full Reel, Logic Function:Inverter, No. Of Elements:Hex, No. Of Inputs:1Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:74Hc14, Logic Ic Family:74Hc, Supply Voltage Min:2V Rohs Compliant: Yes |Onsemi MM74HC14MX RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 7500 |
|
$0.1530 | Buy Now |
|
DISTI #
26AC2368
|
Newark | Schmittt Trigger Rohs Compliant: Yes |Onsemi MM74HC14MX RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 7500 |
|
$0.1800 / $0.1890 | Buy Now |
|
DISTI #
38C7505
|
Newark | Hex Inverter, Schmitt Trigger Soic-14, Logic Function:Inverter, No. Of Elements:Hex, No. Of Inputs:1Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:74Hc14, Logic Ic Family:74Hc, Supply Voltage Min:2V, Family Type:Hcrohs Compliant: Yes |Onsemi MM74HC14MX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2021 |
|
$0.1990 / $0.2360 | Buy Now |
|
DISTI #
31Y2985
|
Newark | Hex Inverter, Schmitt, 1 I/P, Nsoic-14, Logic Family/Base Number:74Hc14, Logic Type:Inverter Schmitt Trigger, Output Current:5.2Ma, No. Of Inputs:1, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Case Style:Nsoic, No. Of Rohs Compliant: Yes |Onsemi MM74HC14MX RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.2520 / $0.8530 | Buy Now |
|
DISTI #
MM74HC14MXCT-ND
|
DigiKey | IC INVERT SCHMITT 6CH 1IN 14SOIC Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
14281 In Stock |
|
$0.1767 / $0.4400 | Buy Now |
|
DISTI #
79K2913
|
Avnet Americas | Inverter Schmitt Trigger, Hex, 1 Input, 14 Pins, SOIC, MM74HC14 - Tape and Reel (Alt: 79K2913) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 35 Weeks, 6 Days Container: Reel | 7500 Partner Stock |
|
$0.1780 / $0.1860 | Buy Now |
|
DISTI #
38C7505
|
Avnet Americas | Inverter Schmitt Trigger, Hex, 1 Input, 14 Pins, SOIC, MM74HC14 - Product that comes on tape, but is not reeled (Alt: 38C7505) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks, 5 Days Container: Ammo Pack | 2021 Partner Stock |
|
$0.3260 / $0.8530 | Buy Now |
|
DISTI #
MM74HC14MX
|
Avnet Americas | Inverter Schmitt Trigger, Hex, 1 Input, 14 Pins, SOIC, MM74HC14 - Tape and Reel (Alt: MM74HC14MX) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 111 Weeks, 0 Days Container: Reel | 30000 Factory Stock |
|
RFQ | |
|
DISTI #
MM74HC14MX
|
Avnet Americas | Inverter Schmitt Trigger, Hex, 1 Input, 14 Pins, SOIC, MM74HC14 - Tape and Reel (Alt: MM74HC14MX) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 7 Weeks, 0 Days Container: Reel | 25000 Factory Stock |
|
RFQ | |
|
DISTI #
31Y2985
|
Avnet Americas | Inverter Schmitt Trigger, Hex, 1 Input, 14 Pins, SOIC, MM74HC14 - Product that comes on tape, but is not reeled (Alt: 31Y2985) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Lead time: 111 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.3260 / $0.8530 | Buy Now |
Part Details for MM74HC14MX
MM74HC14MX CAD Models
MM74HC14MX Part Data Attributes
|
|
MM74HC14MX
onsemi
Buy Now
Datasheet
|
Compare Parts:
MM74HC14MX
onsemi
Hex Inverting Schmitt Trigger, SOIC-14, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-14 | |
| Manufacturer Package Code | 751EF | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.6235 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 38 ns | |
| Propagation Delay (tpd) | 156 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.753 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MM74HC14MX
This table gives cross-reference parts and alternative options found for MM74HC14MX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MM74HC14MX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MM74HC14M | onsemi | $0.3222 | Hex Inverting Schmitt Trigger, SOIC-14, 55-TUBE | MM74HC14MX vs MM74HC14M |
MM74HC14MX Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MM74HC14MX is 2V to 6V, with a typical voltage of 5V.
-
To ensure proper power supply, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground. Decouple the power supply with a 0.1uF capacitor to reduce noise.
-
The maximum frequency of operation for the MM74HC14MX is 25MHz, but this can vary depending on the specific application and operating conditions.
-
Treat the input pins as inputs only, and the output pins as outputs only. Avoid applying a voltage to an output pin, and ensure that input pins are not left floating.
-
The MM74HC14MX can sink or source up to 20mA of current per pin, but this should be limited to 100mA total current per package to avoid overheating.
