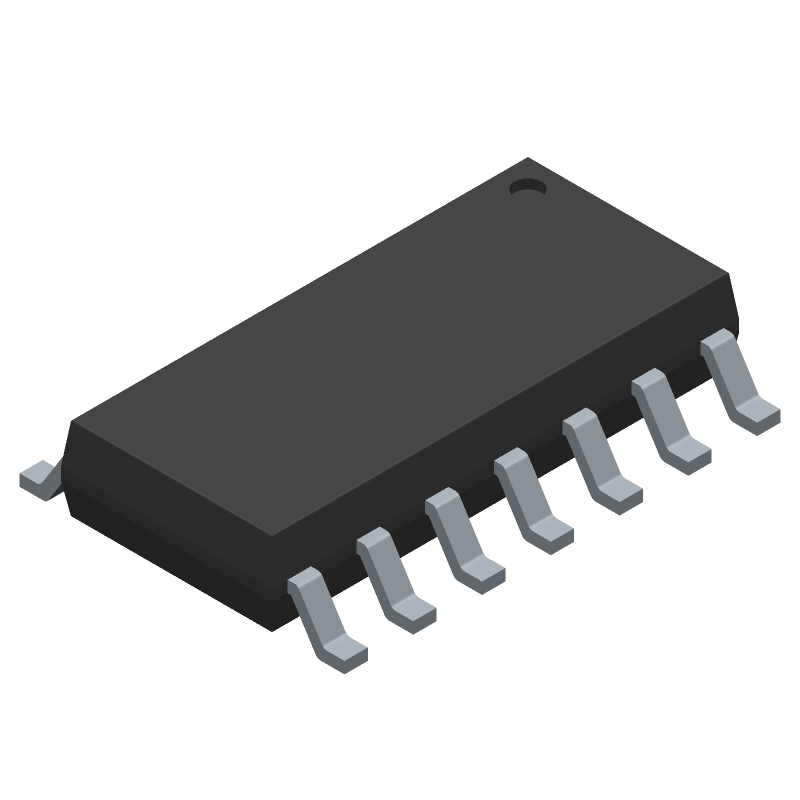

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MM74HC14M by onsemi
Results Overview of MM74HC14M by onsemi
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MM74HC14M Information
MM74HC14M by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MM74HC14M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AC2367
|
Newark | Schmittt Trigger Rohs Compliant: Yes |Onsemi MM74HC14M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 980 |
|
$0.2330 / $0.4990 | Buy Now |
|
DISTI #
78K6063
|
Newark | Hex Inverter, Schmitt Trigger, 13Ns, Soic-14, Logic Function:Inverter, No. Of Elements:Hex, No. Of Inputs:1Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:74Hc14, Logic Ic Family:74Hc, Supply Voltage Min:2V, Msl:- Rohs Compliant: Yes |Onsemi MM74HC14M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 342 |
|
$0.2280 / $0.3800 | Buy Now |
|
DISTI #
MM74HC14M-ND
|
DigiKey | IC INVERT SCHMITT 6CH 1IN 14SOIC Min Qty: 1 Lead time: 9 Weeks Container: Tube |
5414 In Stock |
|
$0.2429 / $0.5600 | Buy Now |
|
DISTI #
MM74HC14M
|
Avnet Americas | Inverter Schmitt Trigger, Hex, 1 Input, 14 Pins, NSOIC, MM74HC14 - Rail/Tube (Alt: MM74HC14M) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Tube | 98016069 Factory Stock |
|
$0.1507 / $0.1539 | Buy Now |
|
DISTI #
78K6063
|
Avnet Americas | Inverter Schmitt Trigger, Hex, 1 Input, 14 Pins, NSOIC, MM74HC14 - Bulk (Alt: 78K6063) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks, 4 Days Container: Bulk | 343 Partner Stock |
|
$0.3060 / $0.3950 | Buy Now |
|
DISTI #
512-MM74HC14M
|
Mouser Electronics | Inverters Hex Inv Schmitt Trig RoHS: Compliant | 6175 |
|
$0.2300 / $1.2000 | Buy Now |
|
DISTI #
E02:0323_00048099
|
Arrow Electronics | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2448 | Europe - 2325 |
|
$0.1988 / $1.0614 | Buy Now |
|
DISTI #
V99:2348_06302551
|
Arrow Electronics | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2334 | Americas - 1655 |
|
$0.1716 / $0.3456 | Buy Now |
|
DISTI #
V36:1790_06302551
|
Arrow Electronics | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 55 Package Multiple: 55 Lead time: 9 Weeks Date Code: 2415 | Americas - 775 |
|
$0.1600 / $0.2353 | Buy Now |
|
|
Future Electronics | 74HC Series 2 to 6 V Supply CMOS Hex Inverting Schmitt Trigger - SOIC-14 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Container: Tube | 4519Tube |
|
$0.1370 / $0.1540 | Buy Now |
Part Details for MM74HC14M
MM74HC14M CAD Models
MM74HC14M Part Data Attributes
|
|
MM74HC14M
onsemi
Buy Now
Datasheet
|
Compare Parts:
MM74HC14M
onsemi
Hex Inverting Schmitt Trigger, SOIC-14, 55-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-14 | |
| Manufacturer Package Code | 751A-03 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 10 Weeks, 4 Days | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.6235 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | RAIL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 38 ns | |
| Propagation Delay (tpd) | 156 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.753 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MM74HC14M
This table gives cross-reference parts and alternative options found for MM74HC14M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MM74HC14M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MM74HC14MX | onsemi | $0.2835 | Hex Inverting Schmitt Trigger, SOIC-14, 2500-REEL | MM74HC14M vs MM74HC14MX |
MM74HC14M Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MM74HC14M is 2V to 6V, with a typical voltage of 5V.
-
To ensure proper power supply, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground. Decoupling capacitors (e.g., 0.1uF) between VCC and GND can help reduce noise and ensure stable operation.
-
The maximum frequency of operation for the MM74HC14M is typically around 25MHz, but this can vary depending on the specific application and operating conditions.
-
To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high frequencies. The maximum junction temperature is 150°C.
-
The input voltage threshold for the MM74HC14M is typically around 1.5V for a logic high and 0.5V for a logic low, but this can vary depending on the specific application and operating conditions.
