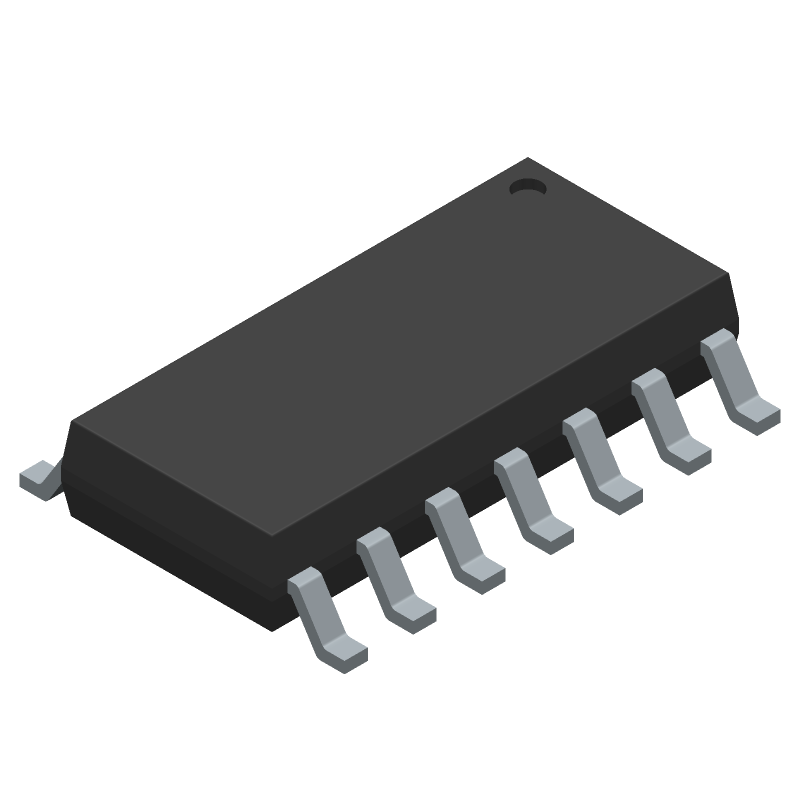

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MM74HC02MX by onsemi
Results Overview of MM74HC02MX by onsemi
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MM74HC02MX Information
MM74HC02MX by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MM74HC02MX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y2973
|
Newark | Nor Gate, Quad, 2 I/P, Nsoic-14, Logic Family/Base Number:74Hc02, Logic Type:Nor Gate, Output Current:-, No. Of Inputs:2, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Case Style:Nsoic, No. Of Pins:14Pins, Logic Ic Rohs Compliant: Yes |Onsemi MM74HC02MX RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
38C7498
|
Newark | Ic, logic Gate, quad 2-Input Nor, hc-Cmos, sop,14Pin, plastic Rohs Compliant: Yes |Onsemi MM74HC02MX RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1130 / $0.1510 | Buy Now |
|
DISTI #
MM74HC02MXCT-ND
|
DigiKey | IC GATE NOR 4CH 2-INP 14SOIC Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3521 In Stock |
|
$0.1158 / $0.3800 | Buy Now |
|
DISTI #
MM74HC02MX
|
Avnet Americas | NOR Gate, Quad, 2 Input, 14 Pins, NSOIC, MM74HC02 - Tape and Reel (Alt: MM74HC02MX) RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.0960 / $0.1008 | Buy Now |
|
DISTI #
512-MM74HC02MX
|
Mouser Electronics | Logic Gates Qd 2-Input NOR Gate RoHS: Compliant | 6895 |
|
$0.1130 / $0.3800 | Buy Now |
|
|
Onlinecomponents.com | Quad 2-Input NOR Gate RoHS: Compliant | 0 |
|
$0.1048 / $0.1199 | Buy Now |
|
DISTI #
87892011
|
Verical | NOR Gate 4-Element 2-IN CMOS 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 106 Package Multiple: 1 | Americas - 2500 |
|
$0.2400 / $0.2430 | Buy Now |
|
DISTI #
MM74HC02MX
|
IBS Electronics | MM74HC SERIES QUAD 2-INPUT NOR GATE W/BUFFERED OUTPUT - SOIC-14 Min Qty: 2500 Package Multiple: 1 | 0 |
|
$0.1251 / $0.1352 | Buy Now |
|
DISTI #
MM74HC02MX
|
Avnet Silica | NOR Gate Quad 2 Input 14 Pins NSOIC MM74HC02 (Alt: MM74HC02MX) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MM74HC02MX
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2500 |
|
$0.2450 / $0.3640 | Buy Now |
Part Details for MM74HC02MX
MM74HC02MX CAD Models
MM74HC02MX Part Data Attributes
|
|
MM74HC02MX
onsemi
Buy Now
Datasheet
|
Compare Parts:
MM74HC02MX
onsemi
Quad 2-Input NOR Gate, SOIC-14, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-14 | |
| Manufacturer Package Code | 751EF | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.6235 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NOR GATE | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 27 ns | |
| Propagation Delay (tpd) | 113 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.753 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MM74HC02MX
This table gives cross-reference parts and alternative options found for MM74HC02MX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MM74HC02MX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC74HC02ADR2G | onsemi | $0.1579 | Quad 2-Input NOR Gate, SOIC-14 NB, 2500-REEL | MM74HC02MX vs MC74HC02ADR2G |
| MC74HC02ADG | onsemi | $0.3161 | Quad 2-Input NOR Gate, SOIC-14 NB, 55-TUBE | MM74HC02MX vs MC74HC02ADG |
| MM74HC02M | onsemi | $0.3177 | Quad 2-Input NOR Gate, SOIC-14, 55-TUBE | MM74HC02MX vs MM74HC02M |
| 74HC02DR2G | onsemi | Check for Price | HC/UH SERIES, QUAD 2-INPUT NOR GATE, PDSO14, LEAD FREE, SOIC-14 | MM74HC02MX vs 74HC02DR2G |
| MC74HC02ADR2 | onsemi | Check for Price | HC/UH SERIES, QUAD 2-INPUT NOR GATE, PDSO14, SOIC-14 | MM74HC02MX vs MC74HC02ADR2 |
MM74HC02MX Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for MM74HC02MX is 2V to 6V, with a typical voltage of 5V.
-
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power consumption and ensure good thermal management, such as using a heat sink or providing adequate airflow.
-
The maximum frequency of operation for MM74HC02MX is typically 25 MHz, but this can vary depending on the specific application and operating conditions.
-
To handle ESD protection for MM74HC02MX, it is recommended to use ESD protection devices, such as TVS diodes or ESD arrays, and follow proper handling and storage procedures to prevent damage from electrostatic discharge.
-
The power consumption of MM74HC02MX is typically around 10 μA per gate, but this can vary depending on the specific application and operating conditions.
