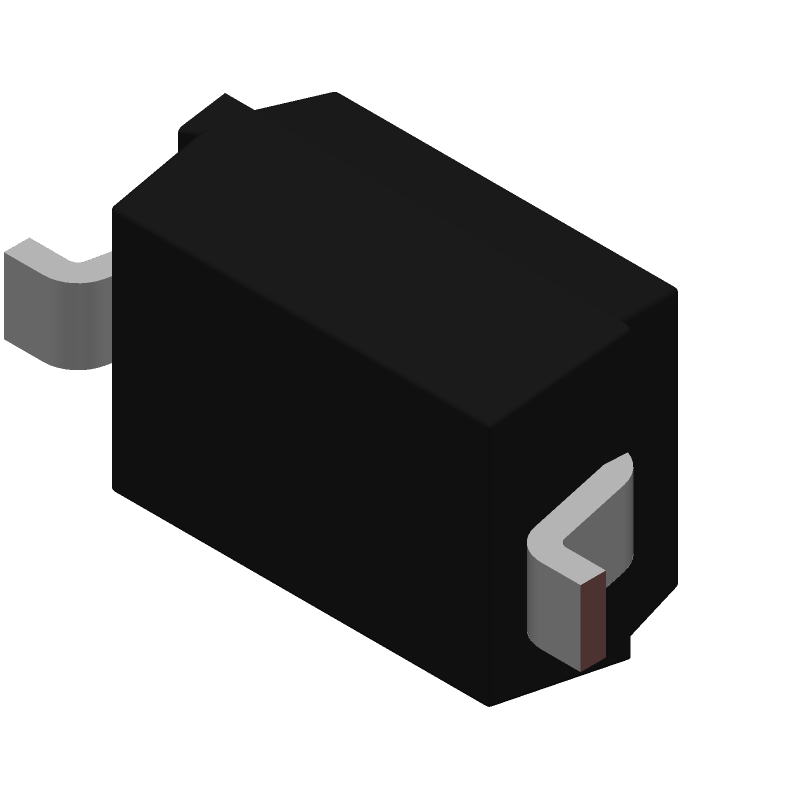

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MM3Z2V7T1GX by Nexperia
Results Overview of MM3Z2V7T1GX by Nexperia
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MM3Z2V7T1GX Information
MM3Z2V7T1GX by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MM3Z2V7T1GX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62AJ8726
|
Newark | Zener Diode,2.7V,0.3W, sc-76 Rohs Compliant: Yes |Nexperia MM3Z2V7T1GX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2305 |
|
$0.0140 | Buy Now |
|
DISTI #
1727-MM3Z2V7T1GXCT-ND
|
DigiKey | DIODE ZENER 2.7V 300MW SOD323 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8980 In Stock |
|
$0.0211 / $0.2000 | Buy Now |
|
DISTI #
MM3Z2V7T1GX
|
Avnet Americas | Zener Single Diode, 2.7 V, 300 mW, SC-76, 2 Pins, 150 ?C, Surface Mount - Tape and Reel (Alt: MM3Z2V7T1GX) RoHS: Compliant Min Qty: 48000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0144 / $0.0147 | Buy Now |
|
DISTI #
771-MM3Z2V7T1GX
|
Mouser Electronics | Zener Diodes Voltage regulator diodes RoHS: Compliant | 0 |
|
$0.0280 / $0.2000 | Order Now |
|
|
Rochester Electronics | MM3Z2V7 - Voltage regulator diodes RoHS: Compliant Status: Active Min Qty: 1 | 8928 |
|
$0.0166 / $0.0268 | Buy Now |
|
DISTI #
MM3Z2V7T1GX
|
TTI | Zener Diodes Voltage regulator diodes RoHS: Compliant pbFree: Pb-Free Min Qty: 27000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0136 / $0.0277 | Buy Now |
Part Details for MM3Z2V7T1GX
MM3Z2V7T1GX CAD Models
MM3Z2V7T1GX Part Data Attributes
|
|
MM3Z2V7T1GX
Nexperia
Buy Now
Datasheet
|
Compare Parts:
MM3Z2V7T1GX
Nexperia
MM3Z series - Voltage regulator diodes@en-us SOD 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOD | |
| Package Description | SC-76, SOD-323, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD323 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 100 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| Knee Impedance-Max | 1000 Ω | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.3 W | |
| Reference Standard | IEC-60134 | |
| Reference Voltage-Nom | 2.7 V | |
| Reverse Current-Max | 20 µA | |
| Reverse Test Voltage | 1 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Voltage Temp Coeff-Max | ||
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
