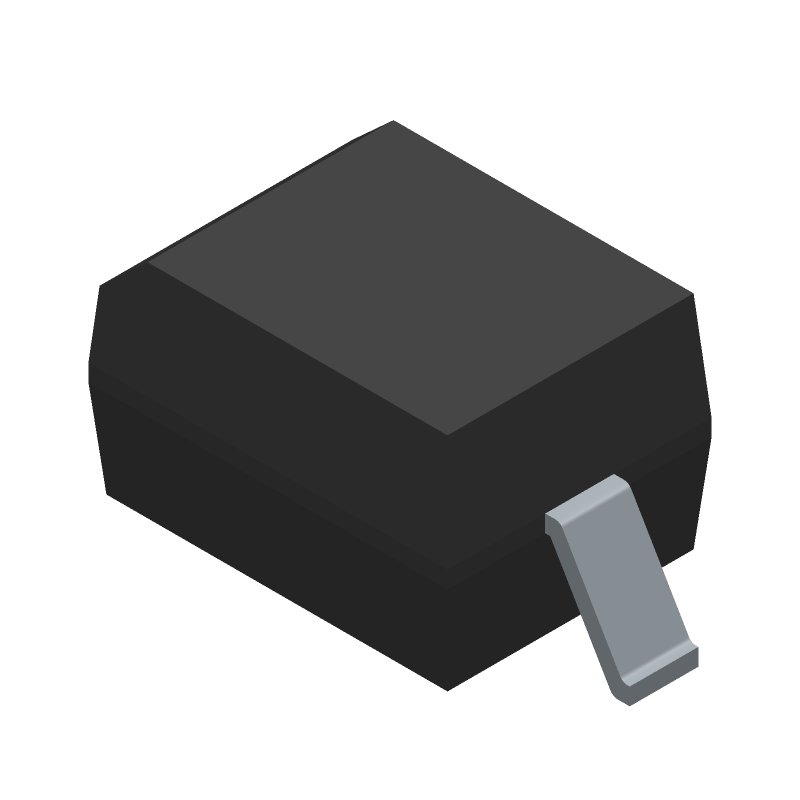

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MM3Z24VST1G by onsemi
Results Overview of MM3Z24VST1G by onsemi
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MM3Z24VST1G Information
MM3Z24VST1G by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MM3Z24VST1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AC6142
|
Newark | Zener Diode, Aec-Q101, 24V, Sod-323, Zener Voltage Vz Typ:24V, Power Dissipation Pd:300Mw, Diode Case Style:Sod-323, Zener Tolerance ±:2%, No. Of Pins:2Pins, Operating Temperature Max:150°C, Product Range:Mm3Zxxxt1G Series, Rohs Compliant: Yes |Onsemi MM3Z24VST1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5180 |
|
$0.0410 / $0.1070 | Buy Now |
|
DISTI #
52R8649
|
Newark | Sod-323 Copper Pb Free/ Reel |Onsemi MM3Z24VST1G RoHS: Not Compliant Min Qty: 18000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0160 / $0.0190 | Buy Now |
|
DISTI #
MM3Z24VST1GOSCT-ND
|
DigiKey | DIODE ZENER 24.25V 300MW SOD323 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9537 In Stock |
|
$0.0130 / $0.1000 | Buy Now |
|
DISTI #
MM3Z24VST1G
|
Avnet Americas | Diode Zener Single 24.25V 2% 200mW 2-Pin SOD-323 T/R - Tape and Reel (Alt: MM3Z24VST1G) RoHS: Compliant Min Qty: 57000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0110 / $0.0120 | Buy Now |
|
DISTI #
863-MM3Z24VST1G
|
Mouser Electronics | Zener Diodes ZEN SOD323 REG 0.2W 24V RoHS: Compliant | 4421 |
|
$0.0130 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_07291288
|
Arrow Electronics | Diode Zener Single 24V 2% 500mW 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2233 Container: Cut Strips | Americas - 77540 |
|
$0.0124 / $0.0430 | Buy Now |
|
DISTI #
P40:2555_24093274
|
Arrow Electronics | Diode Zener Single 24V 2% 500mW 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Date Code: 2248 | Europe - 6000 |
|
$0.0181 / $0.0565 | Buy Now |
|
DISTI #
70466696
|
RS | MM3Z24VST1G Zener Diode, 24V 2% 300 mW SMT 2-Pin SOD-323 Min Qty: 200 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0390 / $0.0460 | RFQ |
|
|
Onlinecomponents.com | MM3Z24VST1G Zener Diode, 24V 2% 300 mW SMT 2-Pin SOD-323 | ON Semiconductor MM3Z24VST1G RoHS: Compliant | 0 |
|
$0.0121 / $0.0146 | Buy Now |
|
DISTI #
85999295
|
Verical | Diode Zener Single 24V 2% 500mW 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 13275 Package Multiple: 1 Date Code: 2201 | Americas - 42000 |
|
$0.0236 / $0.0283 | Buy Now |
Part Details for MM3Z24VST1G
MM3Z24VST1G CAD Models
MM3Z24VST1G Part Data Attributes
|
|
MM3Z24VST1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MM3Z24VST1G
onsemi
Tight Tolerance Zener Diode Tight Tolerance SOD-323, SOD-323 2 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-323 2 LEAD | |
| Pin Count | 2 | |
| Manufacturer Package Code | 477-02 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 70 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.3 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 24 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 2.19% | |
| Working Test Current | 5 mA |
Alternate Parts for MM3Z24VST1G
This table gives cross-reference parts and alternative options found for MM3Z24VST1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MM3Z24VST1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MM3Z24VST3 | onsemi | Check for Price | 24.25V, 0.2W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 477-02, 2 PIN | MM3Z24VST1G vs MM3Z24VST3 |
| MM3Z24VST3G | onsemi | Check for Price | 24.25V, 0.2W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, CASE 477-02, 2 PIN | MM3Z24VST1G vs MM3Z24VST3G |
MM3Z24VST1G Frequently Asked Questions (FAQ)
-
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the package to connect the thermal pad to the copper area.
-
Ensure that the device is operated within the recommended temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling at high temperatures.
-
A reflow soldering profile with a peak temperature of 260°C and a dwell time of 20-30 seconds is recommended. The device should be soldered using a no-clean or water-soluble flux.
-
Handle the device in an ESD-controlled environment. Use ESD-protective packaging and wrist straps or mats. Ground all equipment and tools to prevent static buildup.
-
Store the device in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures.
