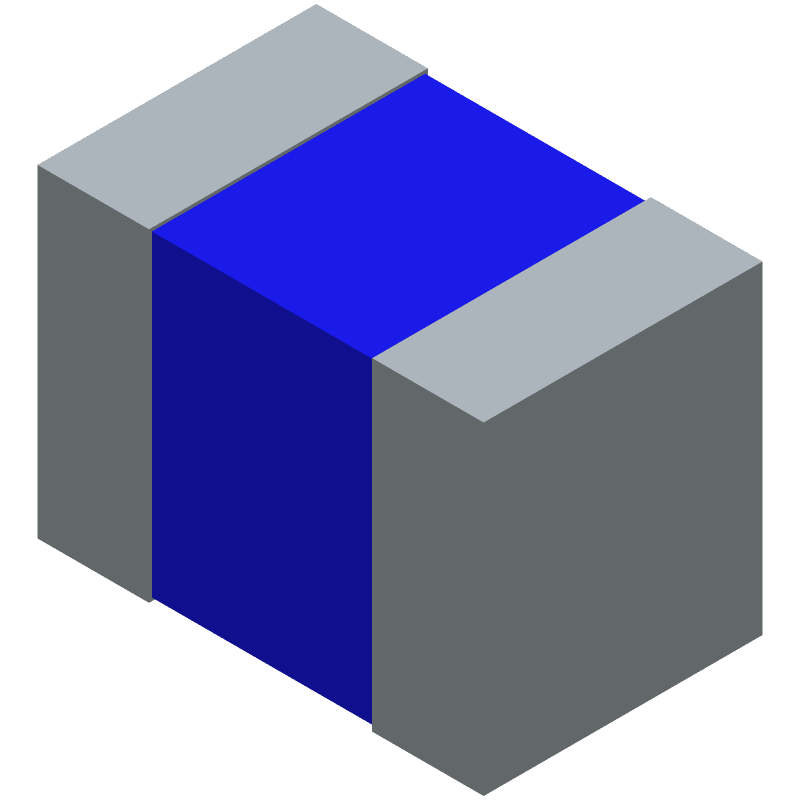

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MLZ2012M4R7HTD25 by TDK Corporation
Results Overview of MLZ2012M4R7HTD25 by TDK Corporation
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Computing and Data Storage
Energy and Power Systems
Electronic Manufacturing
Telecommunications
Renewable Energy
Communication and Networking
Automotive
MLZ2012M4R7HTD25 Information
MLZ2012M4R7HTD25 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for MLZ2012M4R7HTD25
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AH1396
|
Newark | Multilayer Inductor, 4.7Uh, 0.4A, 0805, Inductance:4.7Μh, Dc Resistance Max:0.442Ohm, Self Resonant Frequency:-, Dc Current Rating:400Ma, Inductor Case/Package:0805 [2012 Metric], Product Range:Mlz Series, Core Material:Ferrite Rohs Compliant: Yes |Tdk MLZ2012M4R7HTD25 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1685 |
|
$0.0370 | Buy Now |
|
DISTI #
445-17080-1-ND
|
DigiKey | FIXED IND 4.7UH 400MA 340MOHM SM Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
43988 In Stock |
|
$0.0447 / $0.1200 | Buy Now |
|
DISTI #
69AH1396
|
Avnet Americas | Multilayer Inductor, AEC-Q200, SHLD, 4.7 ?H, 0.442 ohm, 400 mA, 0805 [2012 Metric], MLZ Series - Product that comes on tape, but is not reeled (Alt: 69AH1396) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Ammo Pack | 1685 Partner Stock |
|
$0.0630 / $0.1670 | Buy Now |
|
DISTI #
MLZ2012M4R7HTD25
|
Avnet Americas | Multilayer Inductor, AEC-Q200, SHLD, 4.7 ?H, 0.442 ohm, 400 mA, 0805 [2012 Metric], MLZ Series - Tape and Reel (Alt: MLZ2012M4R7HTD25) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0382 / $0.0459 | Buy Now |
|
DISTI #
810-MLZ2012M4R7HTD25
|
Mouser Electronics | Power Inductors - SMD 4.7uH 442mohms 400mA AEC-Q200 RoHS: Compliant | 8028 |
|
$0.0540 / $0.1200 | Buy Now |
|
DISTI #
V72:2272_06596005
|
Arrow Electronics | Inductor Power Shielded Multi-Layer 4.7uH 20% 2MHz Ferrite 0.4A 0.442Ohm DCR 0805 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2316 Container: Cut Strips | Americas - 3087 |
|
$0.0464 / $0.0684 | Buy Now |
|
|
Future Electronics | 4.7µH Shielded Multilayer Inductor 400mA 340mOhm 0805 (2012 Metric) RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks Container: Reel | 12000Reel |
|
$0.0454 / $0.0491 | Buy Now |
|
DISTI #
87833727
|
Verical | Inductor Power Shielded Multi-Layer 4.7uH 20% 2MHz Ferrite 0.4A 0.442Ohm DCR 0805 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | Americas - 26000 |
|
$0.0435 / $0.0591 | Buy Now |
|
DISTI #
67580917
|
Verical | Inductor Power Shielded Multi-Layer 4.7uH 20% 2MHz Ferrite 0.4A 0.442Ohm DCR 0805 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 123 Package Multiple: 1 Date Code: 2316 | Americas - 3087 |
|
$0.0466 / $0.0470 | Buy Now |
|
DISTI #
77694883
|
Verical | Inductor Power Shielded Multi-Layer 4.7uH 20% 2MHz Ferrite 0.4A 0.442Ohm DCR 0805 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1352 Package Multiple: 1 | Americas - 1685 |
|
$0.0804 | Buy Now |
Part Details for MLZ2012M4R7HTD25
MLZ2012M4R7HTD25 CAD Models
MLZ2012M4R7HTD25 Part Data Attributes
|
|
MLZ2012M4R7HTD25
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
MLZ2012M4R7HTD25
TDK Corporation
General Purpose Inductor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 0805 | |
| Construction | Rectangular | |
| Core Material | FERRITE | |
| DC Resistance | 0.34 Ω | |
| Inductance-Nom (L) | 4.7 µH | |
| Inductor Application | DECOUPLING CIRCUIT | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 1.25 mm | |
| Package Length | 2 mm | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, 7 Inch | |
| Rated Current-Max | 0.4 A | |
| Reference Standard | AEC-Q200 | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Special Feature | DC RESISTANCE IS MEASURED AT 30% | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 2 MHz | |
| Tolerance | 20% |
