Part Details for MLG1005S2N4BT000 by TDK Corporation

Results Overview of MLG1005S2N4BT000 by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MLG1005S2N4BT000 Information

MLG1005S2N4BT000 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for MLG1005S2N4BT000

Part # Distributor Description Stock Price Buy
DISTI # 69AH1289
Newark Inductor, 2.4Nh, 7Ghz, 0402 Rohs Compliant: Yes |Tdk MLG1005S2N4BT000 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 595
  • 10 $0.0520
  • 25 $0.0490
  • 50 $0.0460
  • 100 $0.0430
  • 250 $0.0430
  • 1,000 $0.0420
  • 2,500 $0.0410
$0.0410 / $0.0520 Buy Now
DISTI # 79AH4416
Newark Mlg1005S2N4Bt000 Rohs Compliant: Yes |Tdk MLG1005S2N4BT000 RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0330
$0.0330 Buy Now
DISTI # 445-16283-1-ND
DigiKey FIXED IND 2.4NH 800MA 150MOHM SM Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 28837
In Stock
  • 1 $0.1000
  • 10 $0.0790
  • 100 $0.0646
  • 1,000 $0.0531
  • 5,000 $0.0463
  • 10,000 $0.0437
  • 20,000 $0.0412
  • 30,000 $0.0398
  • 50,000 $0.0381
  • 70,000 $0.0370
  • 100,000 $0.0360
  • 250,000 $0.0338
$0.0338 / $0.1000 Buy Now
DISTI # MLG1005S2N4BT000
Avnet Americas Multilayer Inductor, 2.4 nH, 0.15 ohm, 7 GHz, 800 mA, 0402 [1005 Metric], MLG Series - Tape and Reel (Alt: MLG1005S2N4BT000) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0346
  • 20,000 $0.0321
  • 40,000 $0.0313
  • 60,000 $0.0308
  • 80,000 $0.0300
$0.0300 / $0.0346 Buy Now
DISTI # 810-MLG1005S2N4BT000
Mouser Electronics RF Inductors - SMD IND 0402 2.4nH StdQ SMD RF IND RoHS: Compliant 30652
  • 1 $0.1000
  • 10 $0.0590
  • 100 $0.0470
  • 1,000 $0.0430
  • 10,000 $0.0350
  • 20,000 $0.0340
$0.0340 / $0.1000 Buy Now
DISTI # 82122249
Verical Inductor RF Chip Unshielded Multi-Layer 0.0024uH 0.1nH 100MHz 7Q-Factor Ceramic 0.8A 0.15Ohm DCR 0402 T/R RoHS: Compliant Min Qty: 9800 Package Multiple: 9800 Date Code: 2423 Americas - 9800
  • 9,800 $0.0241
$0.0241 Buy Now
DISTI # 32325498
Verical Inductor RF Chip Unshielded Multi-Layer 0.0024uH 0.1nH 100MHz 7Q-Factor Ceramic 0.8A 0.15Ohm DCR 0402 T/R RoHS: Compliant Min Qty: 2213 Package Multiple: 1 Americas - 4303
  • 2,213 $0.0542
$0.0542 Buy Now
Bristol Electronics   2280
RFQ
DISTI # MLG1005S2N4BT000
TTI RF Inductors - SMD IND 0402 2.4nH StdQ SMD RF IND pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel Americas - 0
  • 10,000 $0.0349
  • 20,000 $0.0343
  • 50,000 $0.0336
  • 250,000 $0.0329
$0.0329 / $0.0349 Buy Now
DISTI # MLG1005S2N4BT000
TME Inductor: ceramic, SMD, 0402, 2.4nH, 800mA, 150mΩ, Q: 7, ftest: 100MHz Min Qty: 10000 0
  • 10,000 $0.0361
  • 20,000 $0.0186
  • 50,000 $0.0175
$0.0175 / $0.0361 RFQ
DISTI # MLG1005S2N4BT000
Avnet Abacus Multilayer Inductor 24 nH 015 ohm 7 GHz 800 mA 0402 1005 Metric MLG Series (Alt: MLG1005S2N4BT000) RoHS: Compliant Min Qty: 50000 Package Multiple: 10000 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for MLG1005S2N4BT000

MLG1005S2N4BT000 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

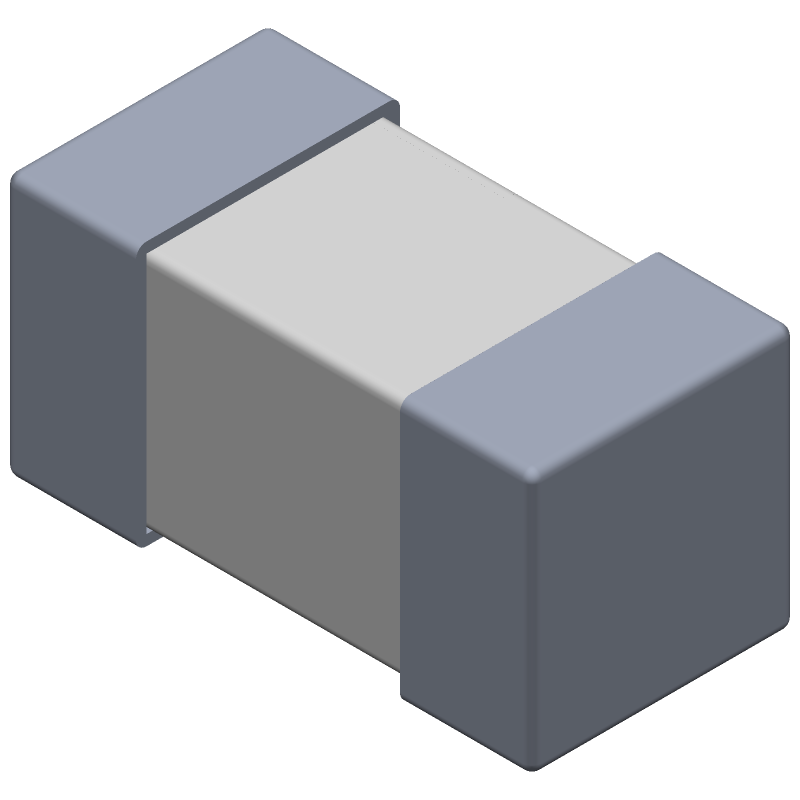

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MLG1005S2N4BT000 Part Data Attributes

Parametric Data
MLG1005S2N4BT000 TDK Corporation
Buy Now Datasheet
Compare Parts:
MLG1005S2N4BT000 TDK Corporation General Purpose Inductor, 0.0024uH, 4.167%, 1 Element, Ferrite-Core, SMD, 1005, CHIP, 1005
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 12 Weeks
Samacsys Manufacturer TDK
Case/Size Code 0402
Construction Rectangular
Core Material CERAMIC
DC Resistance 0.15 Ω
Inductance-Nom (L) 0.0024 µH
Inductor Application RF INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 1 mm
Package Style SMT
Package Width 0.5 mm
Packing Method TR, PUNCHED PAPER, 7 INCH
Quality Factor-Min (at L-nom) 7
Rated Current-Max 0.8 A
Self Resonance Frequency 7000 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Surface Mount YES
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 100 MHz
Tolerance 4.17%

Alternate Parts for MLG1005S2N4BT000

This table gives cross-reference parts and alternative options found for MLG1005S2N4BT000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MLG1005S2N4BT000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MLG1005S2N4BT TDK Corporation Check for Price General Purpose Inductor, 0.0024uH, 4.167%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402, HALOGEN FREE AND ROHS COMPLIANT MLG1005S2N4BT000 vs MLG1005S2N4BT
