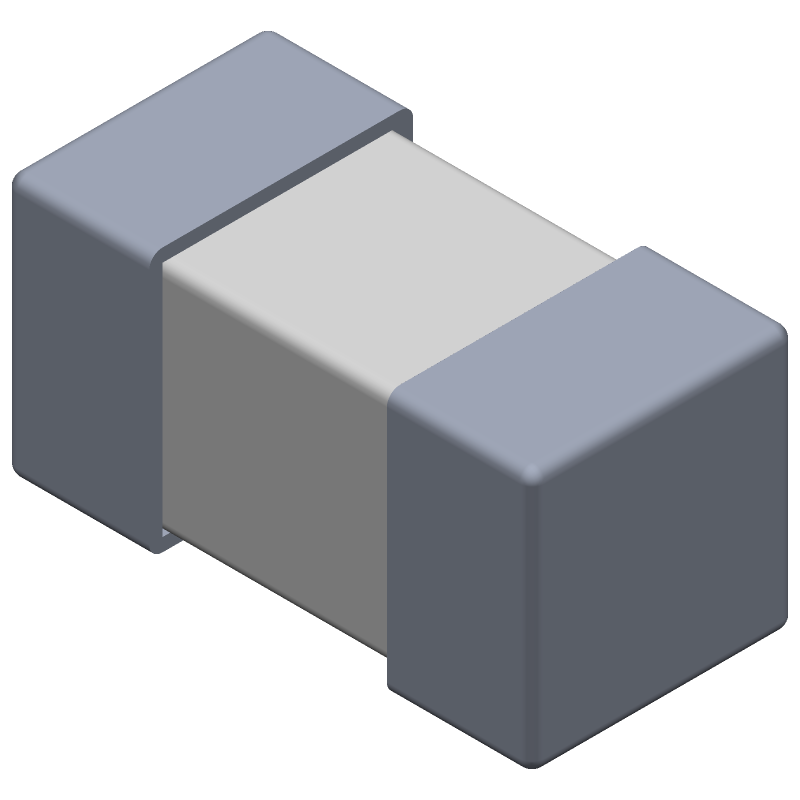

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MLG0402P3N3BT000 by TDK Corporation
Results Overview of MLG0402P3N3BT000 by TDK Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MLG0402P3N3BT000 Information
MLG0402P3N3BT000 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for MLG0402P3N3BT000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MLG0402P3N3BT000-ND
|
DigiKey | FIXED IND 3.3NH 180MA 1.1OHM SMD Min Qty: 20000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0160 | Buy Now |
|
DISTI #
MLG0402P3N3BT000
|
Avnet Americas | - Tape and Reel (Alt: MLG0402P3N3BT000) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0144 / $0.0147 | Buy Now |
|
DISTI #
810-MLG0402P3N3BT000
|
Mouser Electronics | RF Inductors - SMD IND 01005 3.3nH Hi-Q SMD RF IND RoHS: Compliant | 19940 |
|
$0.0150 / $0.1000 | Buy Now |
|
DISTI #
MLG0402P3N3BT000
|
Avnet Asia | MLG0402P3N3BT000 (Alt: MLG0402P3N3BT000) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ |
Part Details for MLG0402P3N3BT000
MLG0402P3N3BT000 CAD Models
MLG0402P3N3BT000 Part Data Attributes
|
|
MLG0402P3N3BT000
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
MLG0402P3N3BT000
TDK Corporation
General Purpose Inductor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 0201 | |
| Construction | Rectangular | |
| Core Material | CERAMIC | |
| DC Resistance | 1.1 Ω | |
| Inductance-Nom (L) | 0.0033 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.2 mm | |
| Package Length | 0.4 mm | |
| Package Style | SMT | |
| Package Width | 0.2 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Quality Factor-Min (at L-nom) | 8 | |
| Rated Current-Max | 0.18 A | |
| Self Resonance Frequency | 6500 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Special Feature | 0.1NH IS THE TOLERANCE | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 500 MHz | |
| Tolerance | 0.03% |
