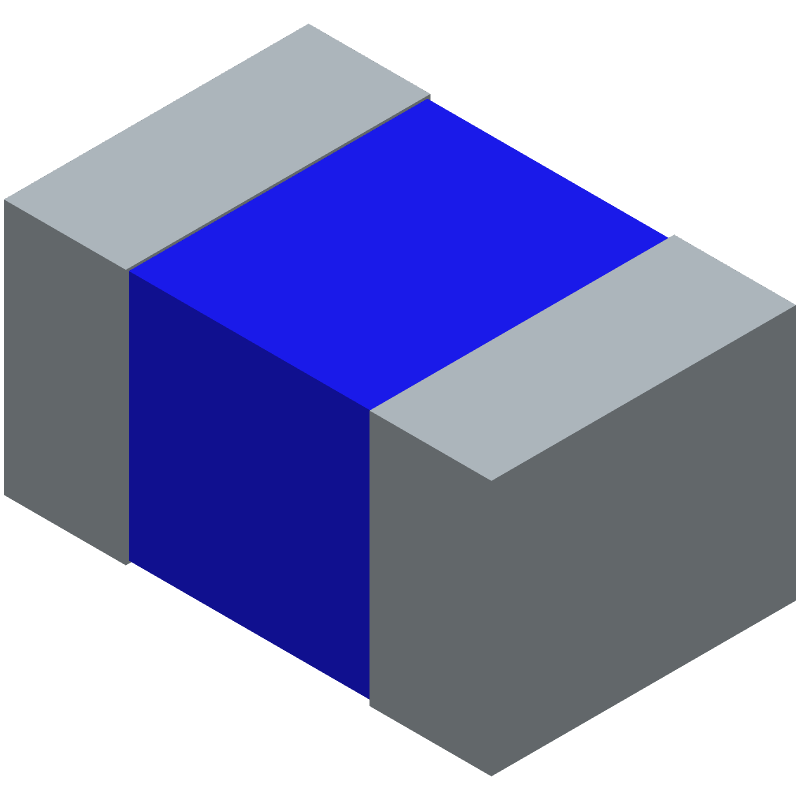

MLF2012DR12JTD25 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
445-16985-1-ND
|
DigiKey | FIXED IND 120NH 300MA 200MOHM SM Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1068 In Stock |
|
$0.0806 / $0.2100 | Buy Now |
DISTI #
MLF2012DR12JTD25
|
Avnet Americas | - Tape and Reel (Alt: MLF2012DR12JTD25) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0902 / $0.0911 | Buy Now |
DISTI #
810-MLF2012DR12JTD25
|
Mouser Electronics | RF Inductors - SMD 120nH 200mohms 300mA +/-5% Fer AEC-Q200 RoHS: Compliant | 764 |
|
$0.0940 / $0.2100 | Buy Now |
DISTI #
MLF2012DR12JTD25
|
TME | Inductor: ferrite, SMD, 0805, 120nH, 300mA, 200mΩ, ftest: 25MHz, ±5% Min Qty: 4000 | 0 |
|
$0.0770 / $0.0880 | RFQ |
DISTI #
MLF2012DR12JTD25
|
Avnet Abacus | (Alt: MLF2012DR12JTD25) RoHS: Not Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
MLF2012DR12JTD25
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
MLF2012DR12JTD25
TDK Corporation
General Purpose Inductor,
|
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | TDK CORP | |
Package Description | CHIP | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8504.50.80.00 | |
Factory Lead Time | 15 Weeks | |
Samacsys Manufacturer | TDK | |
Case/Size Code | 0805 | |
Construction | Rectangular | |
Core Material | FERRITE | |
DC Resistance | 0.2 Ω | |
Inductance-Nom (L) | 0.12 µH | |
Inductor Application | RF INDUCTOR | |
Inductor Type | GENERAL PURPOSE INDUCTOR | |
Number of Functions | 1 | |
Number of Terminals | 2 | |
Operating Temperature-Max | 125 °C | |
Operating Temperature-Min | -55 °C | |
Package Height | 0.85 mm | |
Package Length | 2 mm | |
Package Style | SMT | |
Package Width | 1.25 mm | |
Packing Method | TR, PUNCHED PAPER, 7 INCH | |
Quality Factor-Min (at L-nom) | 20 | |
Rated Current-Max | 0.3 A | |
Reference Standard | AEC-Q200 | |
Self Resonance Frequency | 360 MHz | |
Shape/Size Description | RECTANGULAR PACKAGE | |
Shielded | YES | |
Surface Mount | YES | |
Terminal Placement | DUAL ENDED | |
Terminal Shape | WRAPAROUND | |
Test Frequency | 25 MHz | |
Tolerance | 5% |
