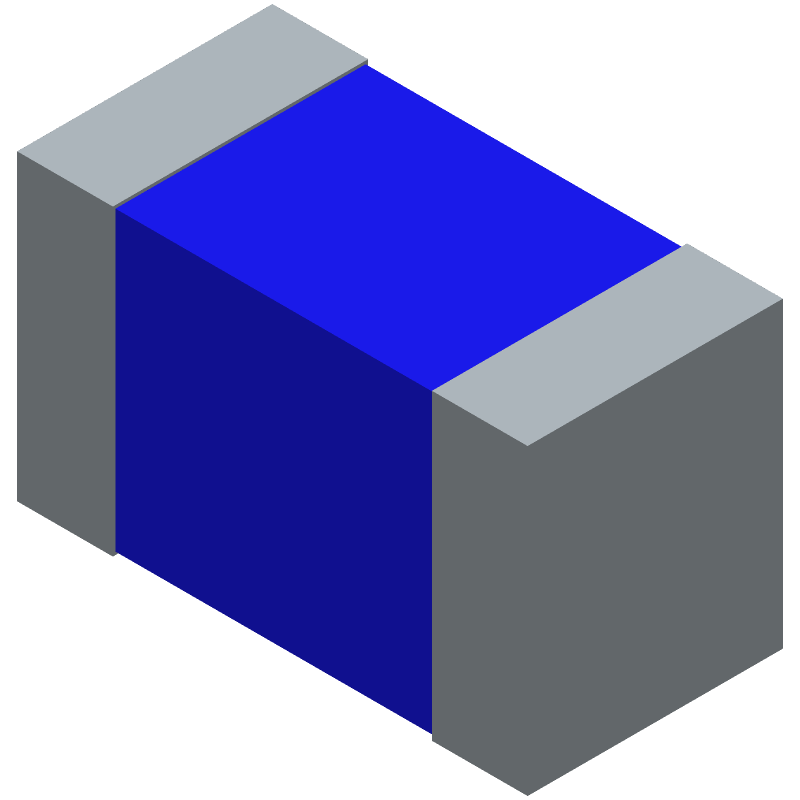

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MLF1608DR22JT000 by TDK Corporation
Results Overview of MLF1608DR22JT000 by TDK Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
Electronic Manufacturing
MLF1608DR22JT000 Information
MLF1608DR22JT000 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for MLF1608DR22JT000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-MLF1608DR22JT000CT-ND
|
DigiKey | FIXED IND 220NH 150MA 550MOHM SM Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6547 In Stock |
|
$0.0535 / $0.1800 | Buy Now |
|
DISTI #
MLF1608DR22JT000
|
Avnet Americas | Multilayer Inductor, 220 nH, 550 Milliohm, ? 5%, 400 MHz, 150 mA, 0603 [1608 Metric] - Tape and Reel (Alt: MLF1608DR22JT000) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0452 / $0.0517 | Buy Now |
|
DISTI #
810-MLF1608DR22JT000
|
Mouser Electronics | RF Inductors - SMD 1.6mm x 0.8mm x 0.8mm, -55 to +125 degC, 150mA, 0.22?H, 550mohm RoHS: Compliant | 6660 |
|
$0.0620 / $0.1800 | Buy Now |
|
DISTI #
MLF1608DR22JT000
|
Avnet Abacus | Multilayer Inductor 220 nH 550 Milliohm 5 400 MHz 150 mA 0603 1608 Metric (Alt: MLF1608DR22JT000) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MLF1608DR22JT000
MLF1608DR22JT000 CAD Models
MLF1608DR22JT000 Part Data Attributes
|
|
MLF1608DR22JT000
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
MLF1608DR22JT000
TDK Corporation
General Purpose Inductor, 0.22uH, 5%, 1 Element, Ferrite-Core, SMD, 1608, CHIP, 1608, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 0603 | |
| Construction | Rectangular | |
| Core Material | FERRITE | |
| DC Resistance | 0.55 Ω | |
| Inductance-Nom (L) | 0.22 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.8 mm | |
| Package Length | 1.6 mm | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Quality Factor-Min (at L-nom) | 15 | |
| Rated Current-Max | 0.15 A | |
| Self Resonance Frequency | 290 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 25 MHz | |
| Tolerance | 5% |
