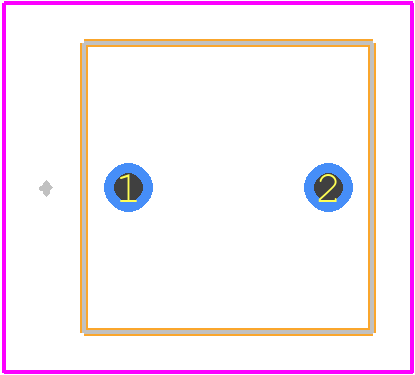

Footprint
-

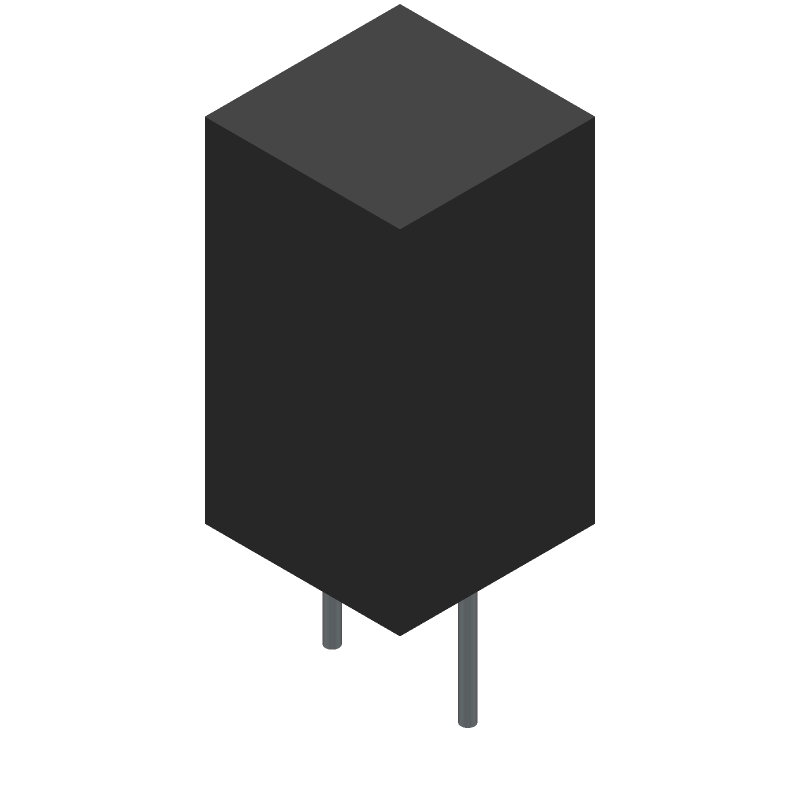

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MKS2C042201K00KSSD by Wima
Results Overview of MKS2C042201K00KSSD by Wima
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Internet of Things (IoT)
Automotive
Robotics and Drones
MKS2C042201K00KSSD Information
MKS2C042201K00KSSD by Wima is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for MKS2C042201K00KSSD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1890140
|
Farnell | CAP, 2.2F, 63V, 10%, PET RoHS: Compliant Min Qty: 10 Lead time: 13 Weeks, 1 Days Container: Each | 1082 |
|
$0.5337 / $0.9878 | Buy Now |
|
DISTI #
1928-MKS2C042201K00KSSD-ND
|
DigiKey | CAP FILM 2.2UF 10% 63VDC RADIAL Min Qty: 4000 Lead time: 16 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.4002 | Buy Now |
|
DISTI #
MKS2-2.2U/63
|
TME | Capacitor: polyester, 2.2uF, 40VAC, 63VDC, 5mm, ±10%, 7.2x7.2x13mm Min Qty: 1 | 5189 |
|
$0.3310 / $0.9500 | Buy Now |
|
DISTI #
MKS2C042201K00KSSD
|
Avnet Abacus | MKS 2 22 F 10 63 VDC 72x13x72 RM5 bulk standard (Alt: MKS2C042201K00KSSD) RoHS: Compliant Min Qty: 4000 Package Multiple: 2000 Lead time: 113 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MKS2C042201K00KSSD
MKS2C042201K00KSSD CAD Models
MKS2C042201K00KSSD Part Data Attributes
|
|
MKS2C042201K00KSSD
Wima
Buy Now
Datasheet
|
Compare Parts:
MKS2C042201K00KSSD
Wima
Film Capacitor, Polyester, 63V, 10% +Tol, 10% -Tol, 2.2uF, Through Hole Mount, 2828, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WIMA GMBH & CO KG | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00 | |
| Samacsys Manufacturer | WIMA | |
| Capacitance | 2.2 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYETHYLENE TEREPHTHALATE | |
| Height | 13 mm | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (AC) Voltage (URac) | 40 V | |
| Rated (DC) Voltage (URdc) | 63 V | |
| Reference Standard | AEC-Q200 | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Pitch | 5 mm | |
| Terminal Shape | WIRE | |
| Width | 7.2 mm |
MKS2C042201K00KSSD Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the MKS2C042201K00KSSD is between 250°C to 260°C for a maximum of 5 seconds.
-
Yes, the MKS2C042201K00KSSD is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The MKS2C042201K00KSSD has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's recommended to follow the manufacturer's storage and handling guidelines to prevent moisture absorption.
-
The maximum ripple current rating for the MKS2C042201K00KSSD is 3.5 Arms at 100 kHz and 85°C.
-
Yes, the MKS2C042201K00KSSD is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
