Capacitors / Fixed Capacitors / MKP386M522125JT4
Datasheets
MKP386M522125JT4 by:

Film Capacitor, Polypropylene, 1250V, 5% +Tol, 5% -Tol, 2.2uF, Chassis Mount, HALOGEN FREE AND ROHS COMPLIANT

Part Details for MKP386M522125JT4 by Vishay Intertechnologies

Results Overview of MKP386M522125JT4 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Medical Imaging Robotics and Drones

MKP386M522125JT4 Information

MKP386M522125JT4 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for MKP386M522125JT4

Part # Distributor Description Stock Price Buy
DISTI # 50T5235
Newark Mkp 2,2Μf ±5% 1250Vdc Drawing T4 |Vishay MKP386M522125JT4 RoHS: Not Compliant Min Qty: 63 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $20.8400
  • 100 $20.3900
  • 250 $19.7900
$19.7900 / $20.8400 Buy Now
DISTI # MKP386M522125JT4
Avnet Americas MKP 386M 2.2?F ?5% 1250V= - Trays (Alt: MKP386M522125JT4) RoHS: Compliant Min Qty: 63 Package Multiple: 63 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 63 $19.2382
  • 126 $18.8775
  • 252 $18.6444
  • 378 $11.7827
  • 504 $11.7216
$11.7216 / $19.2382 Buy Now
DISTI # 75-MKP386M522125JT4
Mouser Electronics Film Capacitors 2.2uF 1250volts 5% Drawing T4 RoHS: Compliant 60
  • 1 $32.9600
  • 10 $26.0200
  • 50 $21.1100
  • 100 $20.1300
  • 252 $18.4800
$18.4800 / $32.9600 Buy Now
DISTI # MKP386M522125JT4
TTI Film Capacitors 2.2uF 1250volts 5% Drawing T4 RoHS: Compliant pbFree: Pb-Free Min Qty: 63 Package Multiple: 63 Container: Tray Americas - 0
  • 63 $19.6900
  • 126 $19.3000
  • 315 $12.4600
  • 630 $12.2100
  • 1,260 $11.9800
$11.9800 / $19.6900 Buy Now
DISTI # MKP386M522125JT4
Avnet Abacus MKP 386M 22F 5 1250V (Alt: MKP386M522125JT4) RoHS: Compliant Min Qty: 63 Package Multiple: 63 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now
Vyrian Capacitors 75
RFQ

Part Details for MKP386M522125JT4

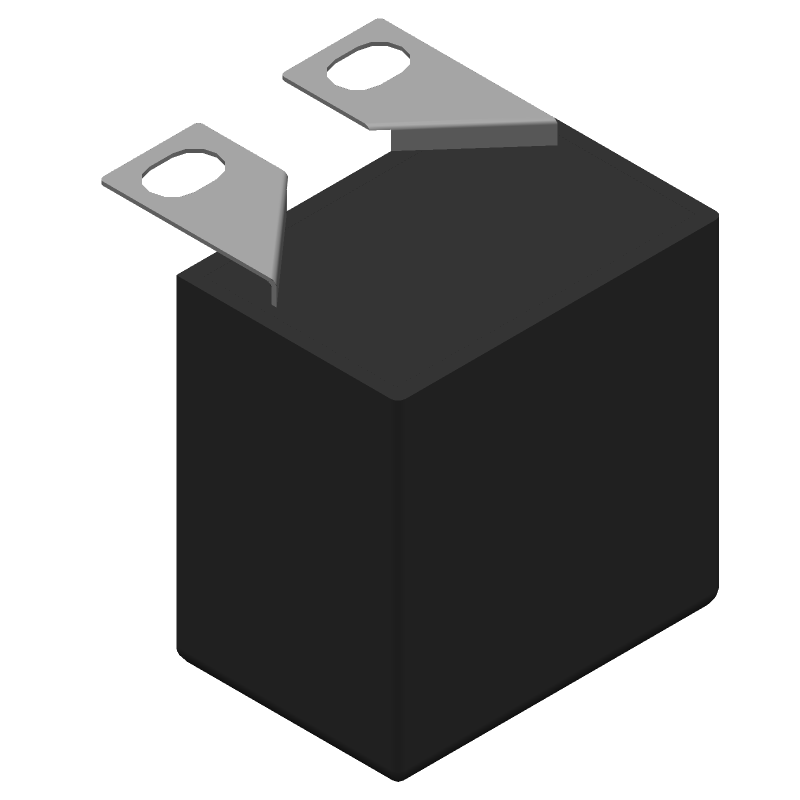

MKP386M522125JT4 CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MKP386M522125JT4 Part Data Attributes

Parametric Data
MKP386M522125JT4 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MKP386M522125JT4 Vishay Intertechnologies Film Capacitor, Polypropylene, 1250V, 5% +Tol, 5% -Tol, 2.2uF, Chassis Mount, HALOGEN FREE AND ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 12 Weeks
Samacsys Manufacturer Vishay
Additional Feature RATED AC VOLTAGE: 550 V
Capacitance 2.2 µF
Capacitor Type FILM CAPACITOR
Dielectric Material POLYPROPYLENE
Height 46 mm
JESD-609 Code e3
Length 44 mm
Mounting Feature CHASSIS MOUNT
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style Panel Mount
Positive Tolerance 5%
Rated (AC) Voltage (URac) 600 V
Rated (DC) Voltage (URdc) 1250 V
Reference Standard IEC60384-17
Surface Mount NO
Terminal Finish Tin (Sn)
Terminal Shape J BEND
Width 30 mm

Alternate Parts for MKP386M522125JT4

This table gives cross-reference parts and alternative options found for MKP386M522125JT4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MKP386M522125JT4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MKP386M522125JT3 Vishay Intertechnologies $21.6304 Film Capacitor, Polypropylene, 1250V, 5% +Tol, 5% -Tol, 2.2uF, Chassis Mount, HALOGEN FREE AND ROHS COMPLIANT MKP386M522125JT4 vs MKP386M522125JT3
MKP386M522125JT8 Vishay Intertechnologies $23.9774 Film Capacitor, Polypropylene, 1250V, 5% +Tol, 5% -Tol, 2.2uF, Chassis Mount, HALOGEN FREE AND ROHS COMPLIANT MKP386M522125JT4 vs MKP386M522125JT8
MKP386M522125JT6 Vishay BCcomponents Check for Price CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1250 V, 2.2 uF, CHASSIS MOUNT, HALOGEN FREE AND ROHS COMPLIANT MKP386M522125JT4 vs MKP386M522125JT6
MKP386M522125JT1 Vishay Intertechnologies Check for Price Film Capacitor, Polypropylene, 1250V, 5% +Tol, 5% -Tol, 2.2uF, Chassis Mount, HALOGEN FREE AND ROHS COMPLIANT MKP386M522125JT4 vs MKP386M522125JT1
MKP386M522125JT2 Vishay BCcomponents Check for Price CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1250 V, 2.2 uF, CHASSIS MOUNT, HALOGEN FREE AND ROHS COMPLIANT MKP386M522125JT4 vs MKP386M522125JT2
MKP386M522125JT8 Vishay BCcomponents Check for Price CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1250 V, 2.2 uF, CHASSIS MOUNT, HALOGEN FREE AND ROHS COMPLIANT MKP386M522125JT4 vs MKP386M522125JT8
MKP386M522125JT3 Vishay BCcomponents Check for Price CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1250 V, 2.2 uF, CHASSIS MOUNT, HALOGEN FREE AND ROHS COMPLIANT MKP386M522125JT4 vs MKP386M522125JT3
MKP386M522125JT1 Vishay BCcomponents Check for Price CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1250 V, 2.2 uF, CHASSIS MOUNT, HALOGEN FREE AND ROHS COMPLIANT MKP386M522125JT4 vs MKP386M522125JT1

MKP386M522125JT4 Related Parts

MKP386M522125JT4 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for MKP386M522125JT4 is between 260°C to 280°C, with a maximum exposure time of 10 seconds.

  • Yes, MKP386M522125JT4 is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • While MKP386M522125JT4 has a moisture sensitivity level (MSL) of 2, it's still recommended to follow proper storage and handling procedures to minimize exposure to humidity. If operating in a humid environment, consider using a conformal coating or potting to protect the capacitor.

  • The maximum ripple current rating for MKP386M522125JT4 is 3.5 Arms at 100 kHz and 85°C. However, it's essential to consult the datasheet and perform thermal derating calculations to ensure the capacitor can handle the specific application's ripple current requirements.

  • Yes, MKP386M522125JT4 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.
