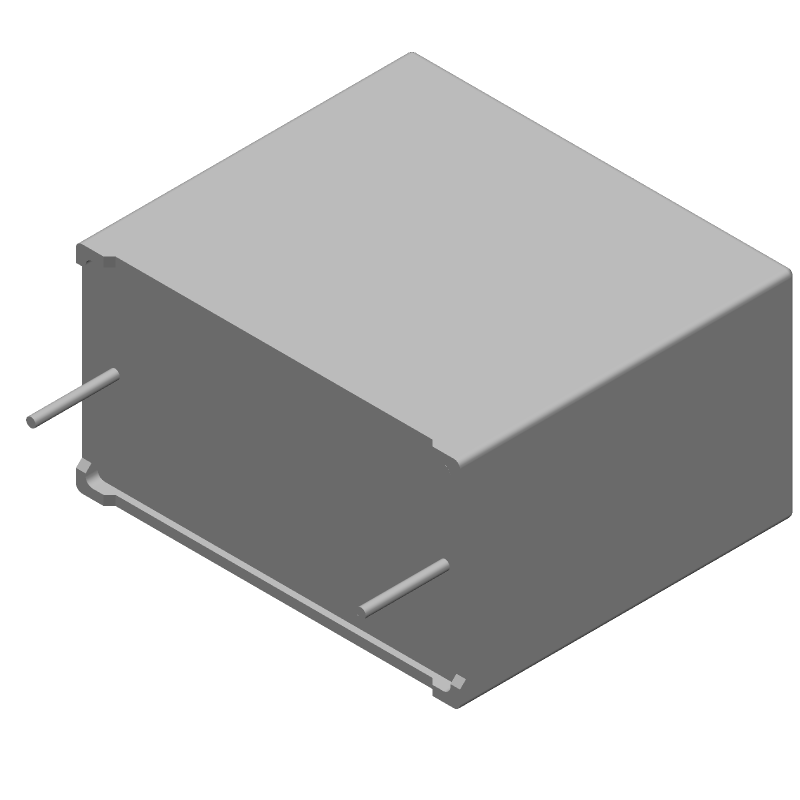

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MKP1848550084K2 by Vishay Intertechnologies
Results Overview of MKP1848550084K2 by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
MKP1848550084K2 Information
MKP1848550084K2 by Vishay Intertechnologies is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for MKP1848550084K2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07AJ1581
|
Newark | Mkp 5Μf ±5% 800Vdc Radial Pitch 27.5 2Pins |Vishay MKP1848550084K2 RoHS: Not Compliant Min Qty: 80 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.3900 / $3.6000 | Buy Now |
|
DISTI #
MKP1848550084K2
|
Avnet Americas | MKP 1848 5?F ?5% 800V= - Bulk (Alt: MKP1848550084K2) RoHS: Not Compliant Min Qty: 80 Package Multiple: 80 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$2.4672 / $2.8910 | Buy Now |
|
DISTI #
75-MKP1848550084K2
|
Mouser Electronics | Film Capacitors MKP 5 F 5 800Vdc radial pitch 27.5 2pins RoHS: Compliant | 40 |
|
$2.4900 / $5.6500 | Buy Now |
|
DISTI #
MKP1848550084K2
|
Avnet Abacus | MKP 1848 5F 5 800V (Alt: MKP1848550084K2) RoHS: Compliant Min Qty: 80 Package Multiple: 80 Lead time: 17 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MKP1848550084K2
MKP1848550084K2 CAD Models
MKP1848550084K2 Part Data Attributes
|
|
MKP1848550084K2
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MKP1848550084K2
Vishay Intertechnologies
Film Capacitor, Polypropylene, 800V, 5uF
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Capacitance | 5 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPROPYLENE | |
| ESR | 12.5 mΩ | |
| Height | 28 mm | |
| JESD-609 Code | e3 | |
| Length | 32 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 800 V | |
| Reference Standard | AEC-Q200; IEC61071; IEC60068 | |
| Ripple Current | 7000 mA | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Pitch | 27.5 mm | |
| Terminal Shape | WIRE | |
| Width | 18 mm |
