MK30DN512VLL10 Information
MK30DN512VLL10 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MK30DN512VLL10
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MK30DN512VLL10-ND
|
DigiKey | IC MCU 32BIT 512KB FLASH 100LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray |
450 In Stock |
|
$9.6322 / $15.4100 | Buy Now |
|
DISTI #
841-MK30DN512VLL10
|
Mouser Electronics | ARM Microcontrollers - MCU Kinetis 512K RoHS: Compliant | 0 |
|
$8.8700 / $10.7900 | Order Now |
Part Details for MK30DN512VLL10

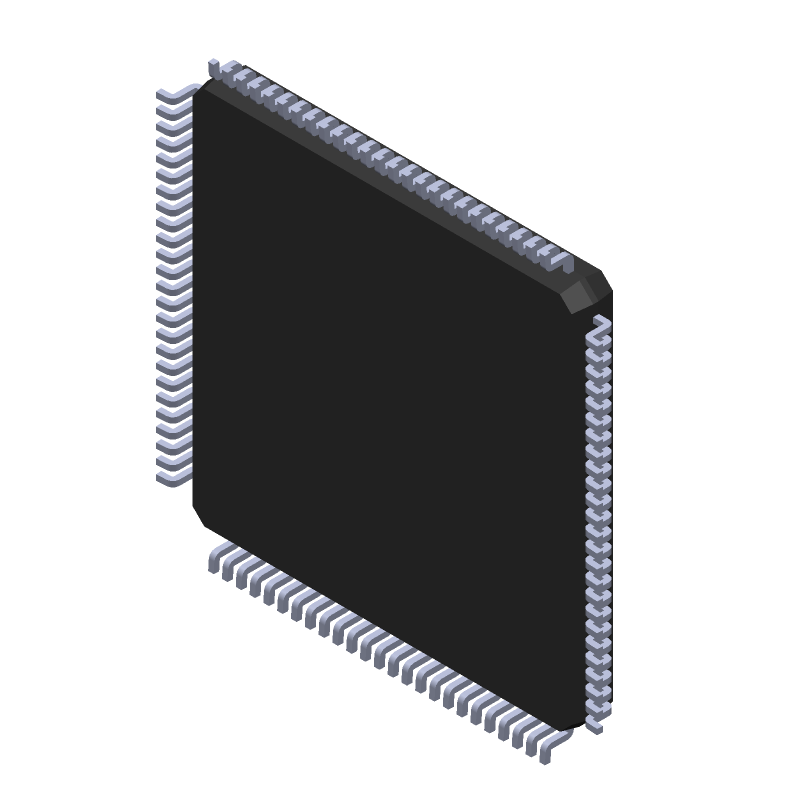

MK30DN512VLL10 CAD Models
MK30DN512VLL10 Part Data Attributes
|
|
MK30DN512VLL10
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MK30DN512VLL10
NXP Semiconductors
32-BIT, FLASH, 100MHz, RISC MICROCONTROLLER, PQFP100
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | 14 X 14 MM, LQFP-100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | CORTEX-M4 | |
| Clock Frequency-Max | 32 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G100 | |
| JESD-609 Code | e3 | |
| Length | 14 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 68 | |
| Number of Terminals | 100 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP100,.63SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 131072 | |
| ROM (words) | 524288 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 100 MHz | |
| Supply Current-Max | 77 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 14 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
MK30DN512VLL10 Frequently Asked Questions (FAQ)
-
The MK30DN512VLL10 can operate in a temperature range of -40°C to 105°C.
-
The clock source can be configured using the MCG (Multipurpose Clock Generator) module. The MCG module allows the user to select the clock source, configure the clock frequency, and enable/disable the clock output.
-
The maximum frequency of the CPU is 100 MHz.
-
The MK30DN512VLL10 has 512 KB of flash memory available for programming.
-
Yes, the MK30DN512VLL10 has several low-power modes, including Stop, VLPR, and VLPW, which can be used to reduce power consumption when the MCU is not actively processing data.
