MK20DN512VMD10 by:

32-BIT, FLASH, 100MHz, RISC MICROCONTROLLER, PBGA144

Part Details for MK20DN512VMD10 by NXP Semiconductors

Results Overview of MK20DN512VMD10 by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

MK20DN512VMD10 Information

MK20DN512VMD10 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MK20DN512VMD10

Part # Distributor Description Stock Price Buy
DISTI # 31W9099
Newark Microcontroller Mcu, 32 Bit, Cortex-M4, 100Mhz, Bga-144, Product Range:Kinetis K Family K2X Series Microcontrollers, Device Core:Arm Cortex-M4, Data Bus Width:32 Bit, Operating Frequency Max:100Mhz, Program Memory Size:512Kb Rohs Compliant: Yes |Nxp MK20DN512VMD10 RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $11.3300
$11.3300 Buy Now
DISTI # MK20DN512VMD10-ND
DigiKey IC MCU 32B 512KB FLASH 144MAPBGA Min Qty: 1 Lead time: 13 Weeks Container: Tray 800
In Stock
  • 1 $13.2400
  • 10 $10.5010
  • 25 $9.8176
  • 160 $9.5902
$9.5902 / $13.2400 Buy Now
DISTI # MK20DN512VMD10
Avnet Americas MCU 32-bit K20 ARM Cortex M4 RISC 512KB Flash 1.8V/2.5V/3.3V 144-Pin MAPBGA Tray - Trays (Alt: MK20DN512VMD10) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 800 $10.2807
  • 1,600 $9.8971
  • 3,200 $9.5135
  • 4,800 $9.1299
  • 6,400 $8.7463
$8.7463 / $10.2807 Buy Now
DISTI # 841-MK20DN512VMD10
Mouser Electronics ARM Microcontrollers - MCU Kinetis 512K RoHS: Compliant 0
  • 1 $13.2400
  • 10 $10.5100
  • 25 $9.8200
  • 100 $9.6000
  • 800 $9.5900
$9.5900 / $13.2400 Order Now
DISTI # V36:1790_07208819
Arrow Electronics MCU 32-bit ARM Cortex M4 RISC 512KB Flash 1.8V/2.5V/3.3V 144-Pin MAP-BGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2332 Americas - 580
  • 1 $8.9510
$8.9510 Buy Now
DISTI # 70369272
Verical MCU 32-bit ARM Cortex M4 RISC 512KB Flash 1.8V/2.5V/3.3V 144-Pin MAP-BGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2332 Americas - 580
  • 1 $13.4645
$13.4645 Buy Now
DISTI # MK20DN512VMD10
Avnet Silica MCU 32bit K20 ARM Cortex M4 RISC 512KB Flash 18V25V33V 144Pin MAPBGA Tray (Alt: MK20DN512VMD10) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 15 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MK20DN512VMD10
EBV Elektronik MCU 32bit K20 ARM Cortex M4 RISC 512KB Flash 18V25V33V 144Pin MAPBGA Tray (Alt: MK20DN512VMD10) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 15 Weeks, 0 Days EBV - 320
Buy Now
Flip Electronics Stock, ship today 3245
RFQ

Part Details for MK20DN512VMD10

MK20DN512VMD10 CAD Models

  • Part Symbol

    Part Symbol

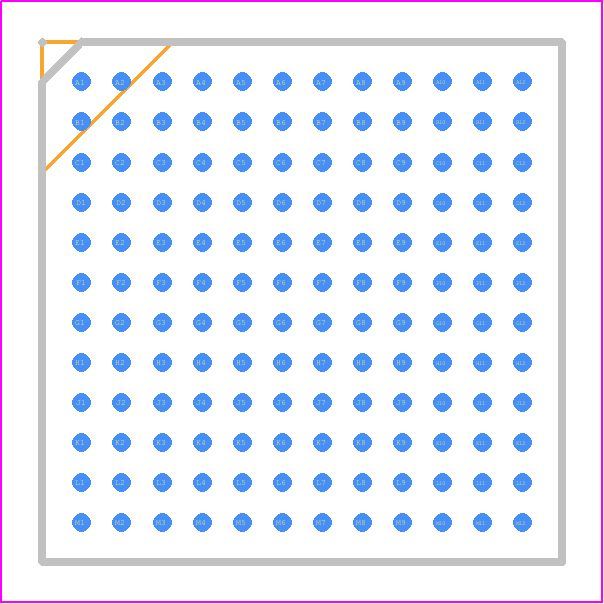

  • Footprint

    footprint

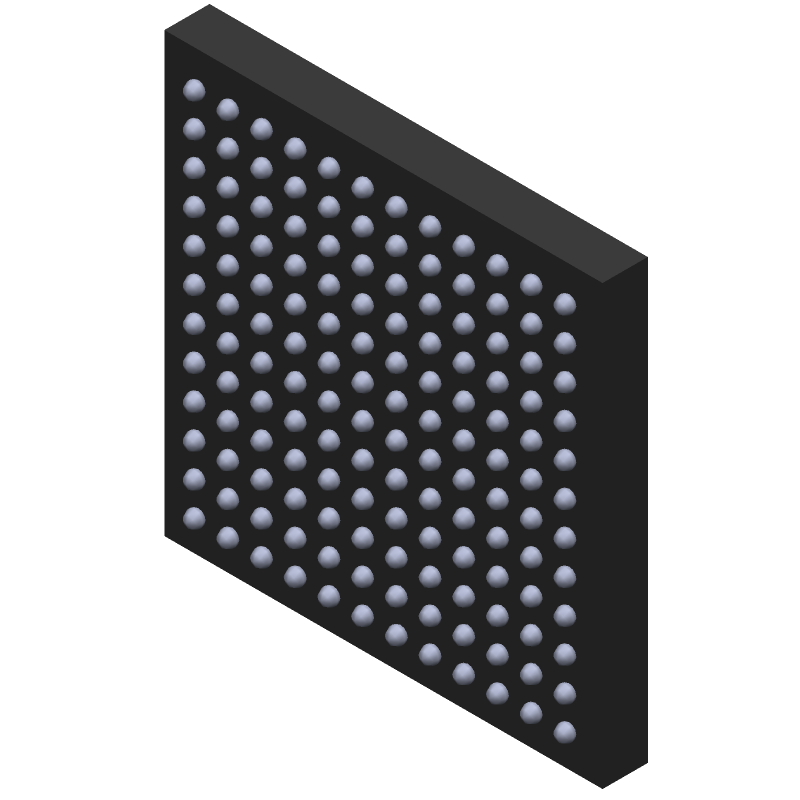

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MK20DN512VMD10 Part Data Attributes

Parametric Data
MK20DN512VMD10 NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MK20DN512VMD10 NXP Semiconductors 32-BIT, FLASH, 100MHz, RISC MICROCONTROLLER, PBGA144
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description 13 X 13 MM, MAPBGA-144
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer NXP
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M4
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PBGA-B144
JESD-609 Code e1
Length 13 mm
Moisture Sensitivity Level 3
Number of I/O Lines 97
Number of Terminals 144
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA144,12X12,20
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 131072
ROM (words) 524288
ROM Programmability FLASH
Seated Height-Max 1.7 mm
Speed 100 MHz
Supply Current-Max 77 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 40
Width 13 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

MK20DN512VMD10 Related Parts

MK20DN512VMD10 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the MK20DN512VMD10 is 50 MHz.

  • The clock settings for the MK20DN512VMD10 can be configured using the Clock Manager (CLK) module. The CLK module allows you to select the clock source, configure the clock frequency, and enable/disable clock outputs.

  • The MK20DN512VMD10 has several power modes, including RUN, WAIT, STOP, and VLPR (Very Low Power Run). These modes allow you to optimize power consumption based on the application's requirements. For example, the WAIT mode reduces power consumption by stopping the CPU clock, while the STOP mode reduces power consumption by stopping the CPU clock and disabling the voltage regulator.

  • The DMA (Direct Memory Access) controller in the MK20DN512VMD10 allows you to transfer data between peripherals and memory without CPU intervention. To use the DMA controller, you need to configure the DMA channel, set the transfer parameters, and enable the DMA transfer. The DMA controller can be used to transfer data between peripherals such as UART, SPI, and I2C.

  • The MK20DN512VMD10 has 16 interrupt priority levels, which allow you to prioritize interrupts based on their importance. The interrupt priority levels determine the order in which interrupts are serviced by the CPU. Higher-priority interrupts are serviced before lower-priority interrupts.
