Microcontrollers and Processors / Microcontrollers / MK10DN32VFM5
Datasheets

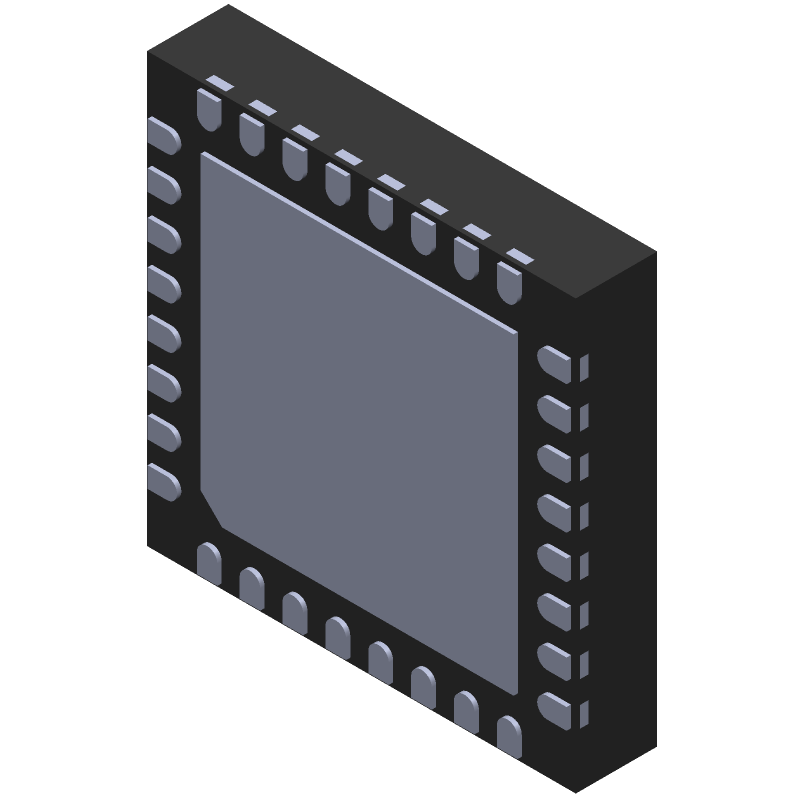

MK10DN32VFM5 by:

FLASH, 50MHz, RISC MICROCONTROLLER, QCC32

Part Details for MK10DN32VFM5 by NXP Semiconductors

Results Overview of MK10DN32VFM5 by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

MK10DN32VFM5 Information

MK10DN32VFM5 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MK10DN32VFM5

Part # Distributor Description Stock Price Buy
DISTI # 89T6135
Newark Microcontroller Mcu, 32 Bit, Cortex-M4, 50Mhz, Qfn-32, Product Range:Kinetis K Family K1X Series Microcontrollers, Device Core:Arm Cortex-M4, Data Bus Width:32 Bit, Operating Frequency Max:50Mhz, Program Memory Size:32Kb Rohs Compliant: Yes |Nxp MK10DN32VFM5 RoHS: Compliant Min Qty: 2450 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $2.4300
$2.4300 Buy Now
DISTI # MK10DN32VFM5-ND
DigiKey IC MCU 32BIT 32KB FLASH 32QFN Min Qty: 1 Lead time: 13 Weeks Container: Tray 232
In Stock
  • 1 $4.6200
  • 10 $2.7520
  • 25 $2.6780
  • 100 $2.6037
  • 490 $2.5146
  • 980 $2.4948
  • 1,470 $2.4701
$2.4701 / $4.6200 Buy Now
DISTI # MK10DN32VFM5
Avnet Americas MCU 32-bit K10 ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 32-Pin QFN EP Tray - Trays (Alt: MK10DN32VFM5) RoHS: Compliant Min Qty: 2450 Package Multiple: 2450 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 2,450 $2.6054
  • 4,900 $2.5082
  • 9,800 $2.4109
  • 14,700 $2.3137
  • 19,600 $2.2165
$2.2165 / $2.6054 Buy Now
DISTI # 841-MK10DN32VFM5
Mouser Electronics ARM Microcontrollers - MCU KINETIS 32K RoHS: Compliant 3082
  • 1 $4.6200
  • 10 $2.6800
  • 100 $2.6100
  • 490 $2.5200
  • 2,940 $2.4300
$2.4300 / $4.6200 Buy Now
DISTI # 71239234
Verical MCU 32-bit ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 32-Pin QFN EP Tray RoHS: Compliant Min Qty: 12 Package Multiple: 1 Date Code: 2323 Americas - 7350
  • 12 $2.6500
  • 50 $2.5900
  • 100 $2.5200
  • 200 $2.5000
  • 1,000 $2.3800
  • 2,450 $2.3100
  • 4,900 $2.2700
$2.2700 / $2.6500 Buy Now
DISTI # 86005706
Verical MCU 32-bit ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 32-Pin QFN EP Tray RoHS: Compliant Min Qty: 118 Package Multiple: 1 Date Code: 2301 Americas - 624
  • 118 $3.2000
$3.2000 Buy Now
Rochester Electronics Kinetis 32K Flex RoHS: Compliant Status: Active Min Qty: 1 624
  • 25 $2.5600
  • 100 $2.4300
  • 500 $2.3000
  • 1,000 $2.1700
  • 10,000 $2.0500
$2.0500 / $2.5600 Buy Now
DISTI # MK10DN32VFM5
Avnet Silica MCU 32bit K10 ARM Cortex M4 RISC 32KB Flash 18V25V33V 32Pin QFN EP Tray (Alt: MK10DN32VFM5) RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 15 Weeks, 0 Days Silica - 980
Buy Now
DISTI # MK10DN32VFM5
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 7350
  • 1 $4.3600
  • 10 $2.6500
  • 50 $2.5900
  • 100 $2.5200
  • 200 $2.5000
  • 500 $2.5000
  • 1,000 $2.3800
  • 2,450 $2.3100
  • 4,900 $2.2700
$2.2700 / $4.3600 Buy Now
DISTI # MK10DN32VFM5
EBV Elektronik MCU 32bit K10 ARM Cortex M4 RISC 32KB Flash 18V25V33V 32Pin QFN EP Tray (Alt: MK10DN32VFM5) RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 15 Weeks, 0 Days EBV - 1470
Buy Now
Flip Electronics Stock 1945
RFQ
LCSC ARM-M4 50MHz QFN-32-EP(5x5) Microcontrollers (MCU/MPU/SOC) ROHS 64
  • 1 $5.0790
  • 10 $4.2386
  • 30 $3.7261
  • 100 $3.2953
$3.2953 / $5.0790 Buy Now

Part Details for MK10DN32VFM5

MK10DN32VFM5 Part Data Attributes

Parametric Data
MK10DN32VFM5 NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MK10DN32VFM5 NXP Semiconductors FLASH, 50MHz, RISC MICROCONTROLLER, QCC32
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description 5 X 5 MM, QFN-32
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer NXP
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M4
Clock Frequency-Max 50 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
JESD-30 Code S-XQCC-N32
Length 5 mm
Moisture Sensitivity Level 3
Number of I/O Lines 24
Number of Terminals 32
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC32,.2SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 32768
ROM Programmability FLASH
Seated Height-Max 1 mm
Speed 50 MHz
Supply Current-Max 18.2 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

MK10DN32VFM5 Related Parts

MK10DN32VFM5 Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the MK10DN32VFM5 is 50 MHz.

  • The MK10DN32VFM5 has 32 KB of flash memory.

  • The MK10DN32VFM5 has 4 KB of RAM.

  • Yes, the MK10DN32VFM5 has a built-in USB 2.0 full-speed device interface.

  • The power consumption of the MK10DN32VFM5 varies depending on the operating mode, but it can be as low as 350 μA/MHz in run mode.
