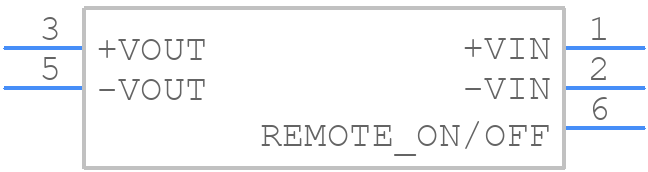

Part Symbol
-

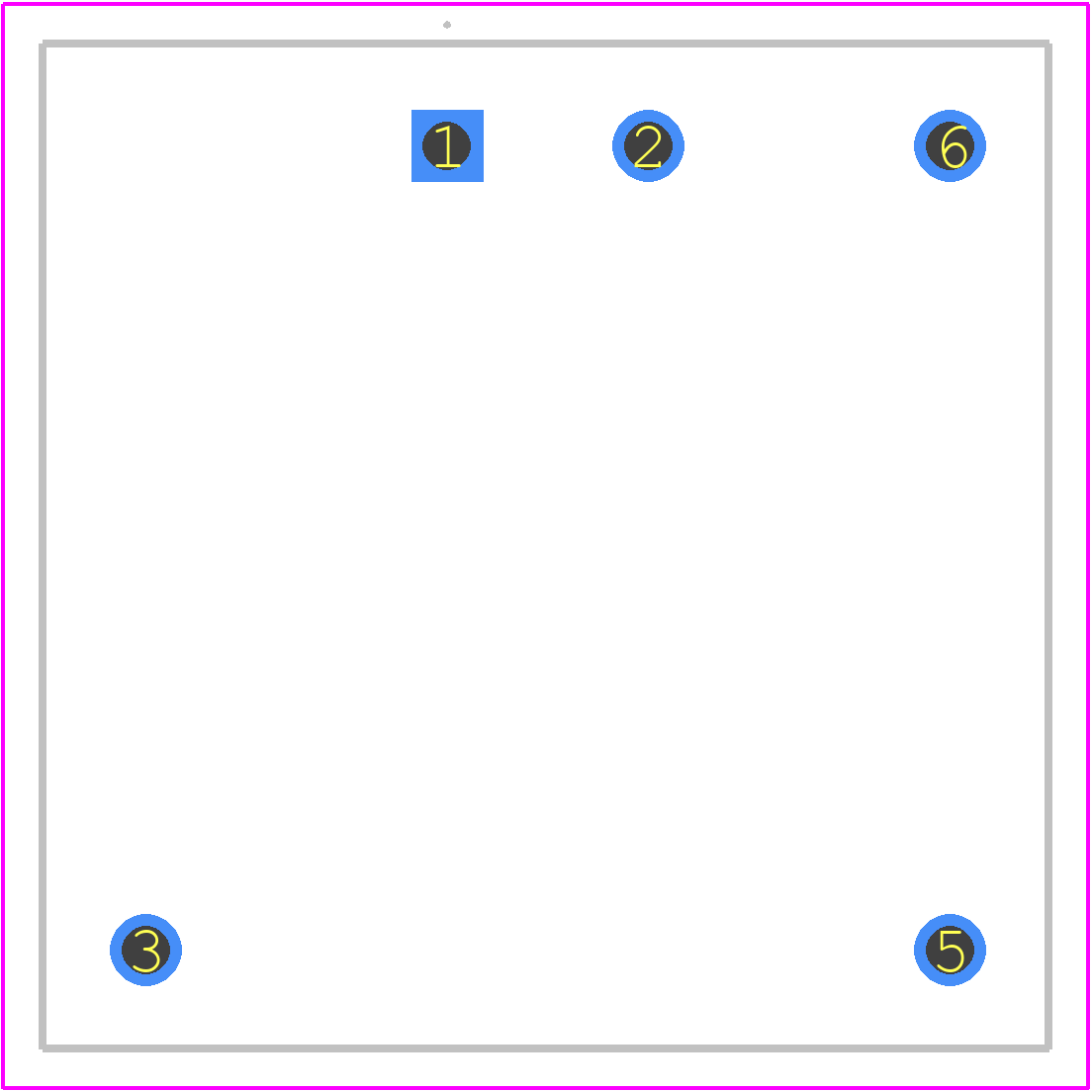

Footprint
-

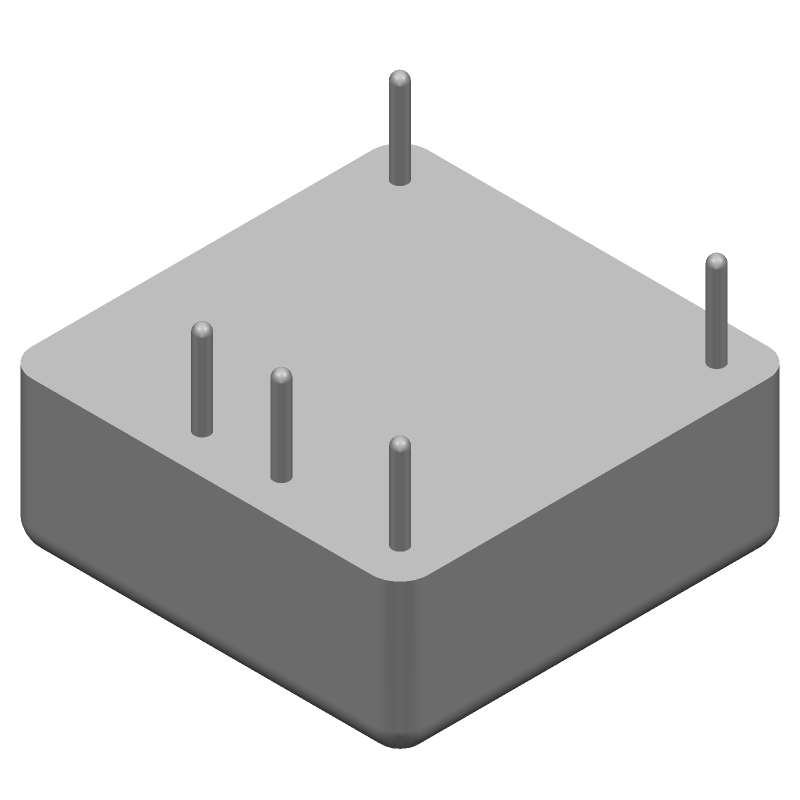

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MJWI10-24S24 by Minmax Technology Co Ltd
Results Overview of MJWI10-24S24 by Minmax Technology Co Ltd
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
MJWI10-24S24 Information
MJWI10-24S24 by Minmax Technology Co Ltd is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Part Details for MJWI10-24S24
MJWI10-24S24 CAD Models
MJWI10-24S24 Part Data Attributes
|
|
MJWI10-24S24
Minmax Technology Co Ltd
Buy Now
Datasheet
|
Compare Parts:
MJWI10-24S24
Minmax Technology Co Ltd
Analog Circuit
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINMAX TECHNOLOGY CO LTD | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Minmax | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| JESD-609 Code | e4 | |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier |
MJWI10-24S24 Frequently Asked Questions (FAQ)
-
The recommended PCB layout for optimal performance can be found in the Minmax Technology Co Ltd application note AN-102, which provides guidelines for PCB design, component placement, and thermal management.
-
To ensure reliable operation in high-temperature environments, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal interface material to reduce the junction temperature of the converter.
-
The maximum capacitance that can be used on the output of the MJWI10-24S24 is 220uF. Exceeding this value may cause instability or oscillation in the converter.
-
Yes, the MJWI10-24S24 can be used in a redundant or parallel configuration, but it is recommended to consult with Minmax Technology Co Ltd or a qualified engineer to ensure proper design and implementation.
-
The typical efficiency of the MJWI10-24S24 converter can be found in the datasheet, but it is generally around 85-90% at full load, and may decrease to around 70-80% at light loads.
