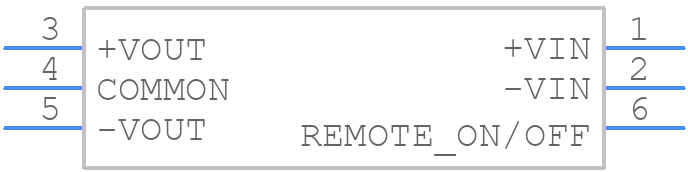

Part Symbol
-

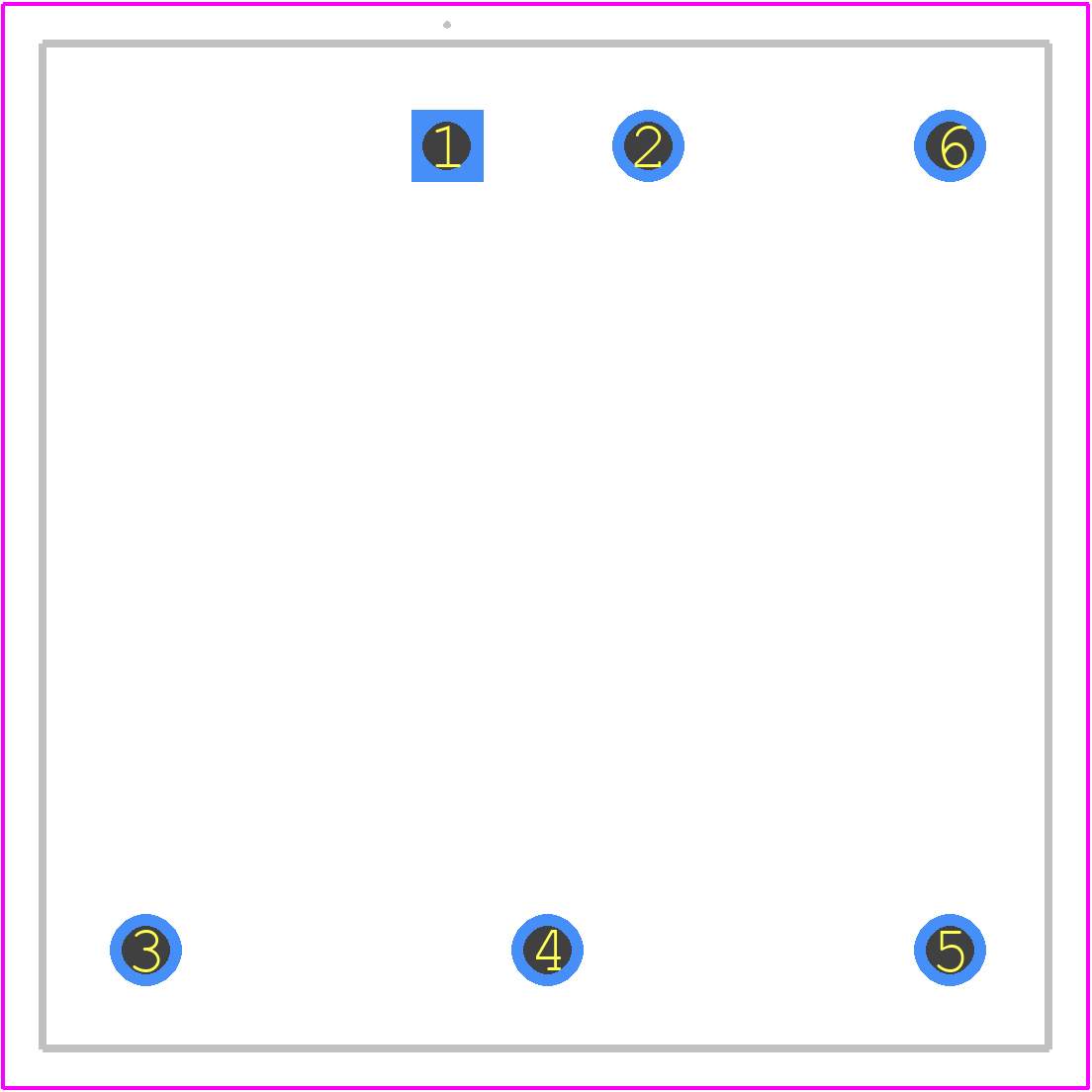

Footprint
-

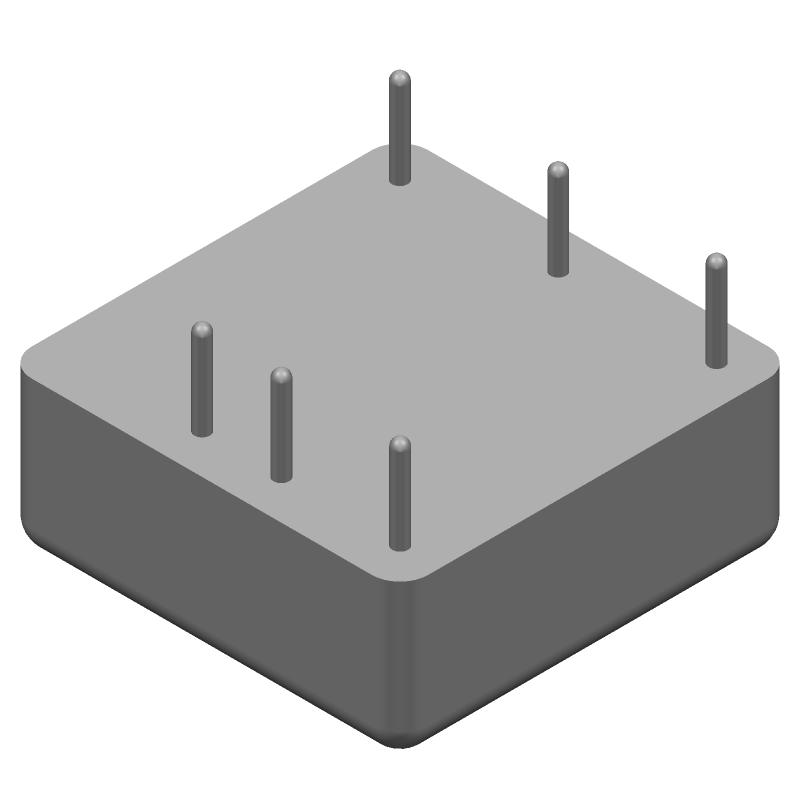

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MJWI10-24D05 by Minmax Technology Co Ltd
Results Overview of MJWI10-24D05 by Minmax Technology Co Ltd
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
MJWI10-24D05 Information
MJWI10-24D05 by Minmax Technology Co Ltd is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for MJWI10-24D05
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
NAC | DC/DC Converter RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
$18.9700 / $22.6800 | Buy Now |
Part Details for MJWI10-24D05
MJWI10-24D05 CAD Models
MJWI10-24D05 Part Data Attributes
|
|
MJWI10-24D05
Minmax Technology Co Ltd
Buy Now
Datasheet
|
Compare Parts:
MJWI10-24D05
Minmax Technology Co Ltd
Analog Circuit
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINMAX TECHNOLOGY CO LTD | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Minmax | |
| Additional Feature | IT ALSO HAS -5V OUTPUT | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, CUL, EN, IEC, UL | |
| Efficiency (Main Output) | 84% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | S-MDMA-P6 | |
| JESD-609 Code | e4 | |
| Length | 25.4 mm | |
| Line Regulation-Max | 1% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1 A | |
| Output Voltage-Max | 5.1 V | |
| Output Voltage-Min | 4.9 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | METAL | |
| Package Code | DMA | |
| Package Shape | SQUARE | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | UNDER VOLTAGE; OVER LOAD; SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.03535 Vrms | |
| Seated Height-Max | 10.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 10 W | |
| Trim/Adjustable Output | NO | |
| Width | 25.4 mm |
