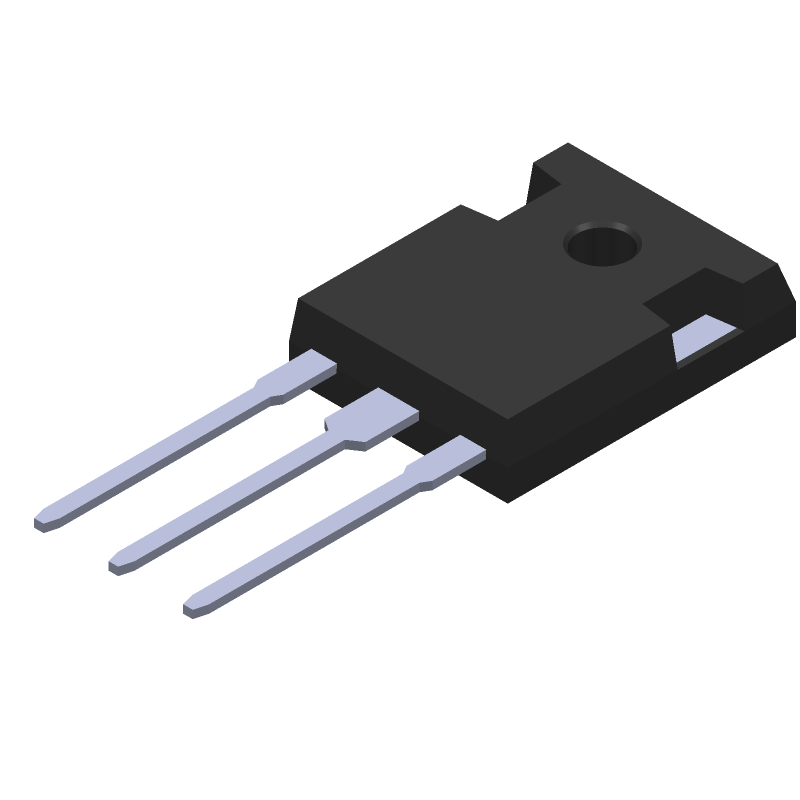

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MJH11022G by onsemi
Results Overview of MJH11022G by onsemi
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MJH11022G Information
MJH11022G by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MJH11022G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26K4486
|
Newark | Darlington Transistor, Npn, 250V, To-247, Transistor Polarity:Npn, Collector Emitter Voltage V(Br)Ceo:250V, Power Dissipation Pd:150W, Dc Collector Current:15A, Rf Transistor Case:To-218, No. Of Pins:3Pins, Dc Current Gain Hfe:100Hferohs Compliant: Yes |Onsemi MJH11022G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 283 |
|
$2.6400 | Buy Now |
|
DISTI #
81AC9158
|
Newark | Bip T0247 Npn 2 Rohs Compliant: Yes |Onsemi MJH11022G RoHS: Compliant Min Qty: 30 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.3300 / $5.3800 | Buy Now |
|
DISTI #
MJH11022GOS-ND
|
DigiKey | TRANS NPN DARL 250V 15A TO-247-3 Min Qty: 1 Lead time: 8 Weeks Container: Tube |
2096 In Stock |
|
$2.1875 / $5.7100 | Buy Now |
|
DISTI #
26K4486
|
Avnet Americas | Darlington Transistor, Darlington, NPN, 250 V, 150 W, 15 A, TO-218, 3 Pins - Bulk (Alt: 26K4486) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 1 Days Container: Bulk | 283 Partner Stock |
|
$2.8300 / $3.2300 | Buy Now |
|
DISTI #
MJH11022G
|
Avnet Americas | Darlington Transistor, Darlington, NPN, 250 V, 150 W, 15 A, TO-218, 3 Pins - Rail/Tube (Alt: MJH11022G) RoHS: Compliant Min Qty: 186 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Tube | 261 Partner Stock |
|
$3.0000 / $3.4615 | Buy Now |
|
DISTI #
MJH11022G
|
Avnet Americas | Darlington Transistor, Darlington, NPN, 250 V, 150 W, 15 A, TO-218, 3 Pins - Rail/Tube (Alt: MJH11022G) RoHS: Compliant Min Qty: 30 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Tube | 0 |
|
$1.9444 / $2.2436 | Buy Now |
|
DISTI #
863-MJH11022G
|
Mouser Electronics | Darlington Transistors 15A 250V Bipolar Power NPN RoHS: Compliant | 4747 |
|
$2.1800 / $4.0800 | Buy Now |
|
DISTI #
V36:1790_07309930
|
Arrow Electronics | Trans Darlington NPN 250V 15A 150000mW 3-Pin(3+Tab) TO-247 Tube RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 8 Weeks Date Code: 2408 | Americas - 86 |
|
$2.0420 / $2.2990 | Buy Now |
|
DISTI #
E02:0323_00077155
|
Arrow Electronics | Trans Darlington NPN 250V 15A 150000mW 3-Pin(3+Tab) TO-247 Tube RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 8 Weeks Date Code: 2419 | Europe - 30 |
|
$2.3134 / $2.6045 | Buy Now |
|
DISTI #
70100022
|
RS | ON Semi MJH11022G NPN Darlington Transistor, 15 A 250 V HFE:100, 3-Pin TO-247 Min Qty: 2 Package Multiple: 1 Container: Bulk | 0 |
|
$5.2200 / $6.1400 | RFQ |
Part Details for MJH11022G
MJH11022G CAD Models
MJH11022G Part Data Attributes
|
|
MJH11022G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MJH11022G
onsemi
15 A, 250 V NPN Darlington Bipolar Power Transistor, TO-247, 30-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-247 | |
| Package Description | CASE 340D-02, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 340L-02 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 15 A | |
| Collector-Emitter Voltage-Max | 250 V | |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-247 | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 150 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 3 MHz |
Alternate Parts for MJH11022G
This table gives cross-reference parts and alternative options found for MJH11022G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MJH11022G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MJH11022 | onsemi | Check for Price | 15 A, 250 V NPN Darlington Bipolar Power Transistor, SOT-93 (T0-218) 4 LEAD, 30-TUBE | MJH11022G vs MJH11022 |
| MJH11022 | Motorola Mobility LLC | Check for Price | 15A, 250V, NPN, Si, POWER TRANSISTOR, TO-218 | MJH11022G vs MJH11022 |
MJH11022G Frequently Asked Questions (FAQ)
-
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, thermal vias can be used to improve heat dissipation.
-
Ensure that the device is operated within the recommended temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling at high temperatures.
-
The SOA is typically defined by the device's voltage and current ratings. For the MJH11022G, the maximum voltage rating is 100V and the maximum current rating is 10A. Operating the device within these limits ensures safe operation.
-
Use proper ESD handling procedures when handling the device, such as wearing an ESD strap or using an ESD mat. Ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD protection arrays.
-
Store the device in a dry, cool place, away from direct sunlight. Avoid exposing the device to moisture, extreme temperatures, or physical stress. Handle the device by the body, not the leads, to prevent damage.
