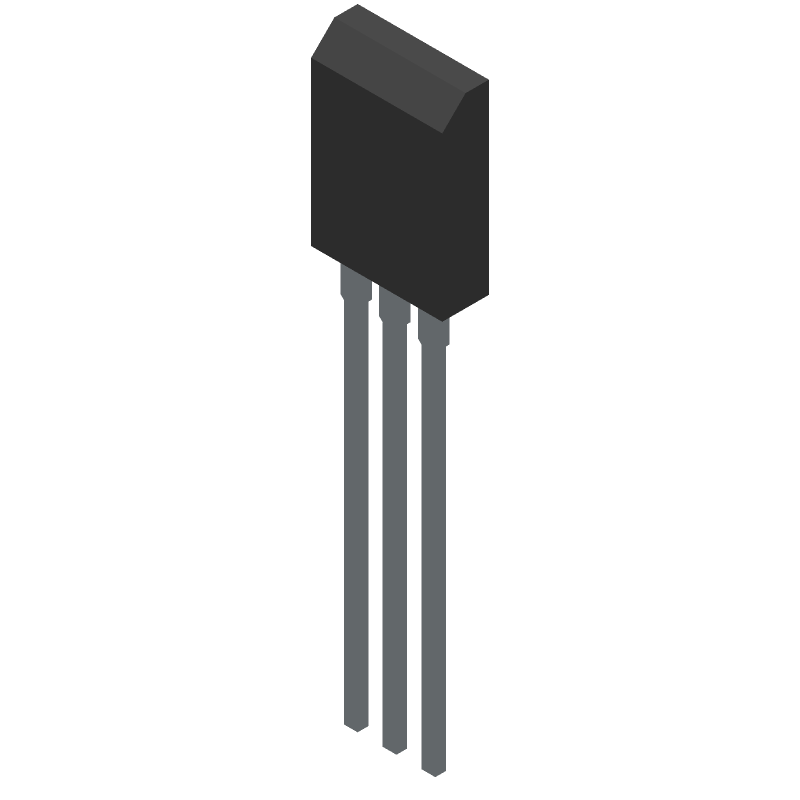

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MJE350 by SPC Multicomp
Results Overview of MJE350 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MJE350 Information
MJE350 by SPC Multicomp is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MJE350
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08N8076
|
Newark | Transistor, Bipolar, Pnp, 300V, 500Ma, To-126-3, Transistor Polarity:Pnp, Collector Emitter Voltage Max:300V, Continuous Collector Current:500Ma, Power Dissipation:20W, Transistor Mounting:Through Hole, No. Of Pins:3Pins, Msl:- Rohs Compliant: Yes |Multicomp Pro MJE350 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 113 |
|
$0.1850 / $0.2020 | Buy Now |
Part Details for MJE350
MJE350 CAD Models
MJE350 Part Data Attributes
|
|
MJE350
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MJE350
SPC Multicomp
Power Bipolar Transistor,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Collector Current-Max (IC) | 0.5 A | |
| Collector-Emitter Voltage-Max | 300 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 30 | |
| JEDEC-95 Code | TO-126 | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | PNP | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for MJE350
This table gives cross-reference parts and alternative options found for MJE350. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MJE350, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MJE350 | Central Semiconductor Corp | Check for Price | Power Bipolar Transistor, 0.5A I(C), 300V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin, | MJE350 vs MJE350 |
MJE350 Frequently Asked Questions (FAQ)
-
The MJE350 can operate safely between -55°C to 150°C, but the maximum junction temperature should not exceed 150°C for reliable operation.
-
To ensure linear operation, the MJE350 should be biased with a base-emitter voltage (Vbe) between 0.6V to 0.8V, and a collector-emitter voltage (Vce) that is at least 1V higher than the base-emitter voltage.
-
The MJE350 should be stored in a dry, cool place with a temperature range of -40°C to 30°C and relative humidity below 60% to prevent moisture damage.
-
Yes, the MJE350 can be used as a switch, but it's not recommended for high-frequency switching applications due to its relatively slow switching times (tf ≈ 10ns, tr ≈ 20ns). It's better suited for low-frequency switching or linear amplification applications.
-
To prevent electrostatic discharge (ESD) damage, handle the MJE350 with an anti-static wrist strap or mat, and avoid touching the device's pins or leads. Store the device in an anti-static bag or tube when not in use.
