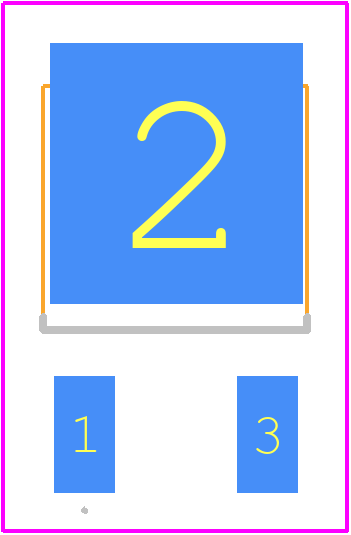

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MJD47T4 by STMicroelectronics
Results Overview of MJD47T4 by STMicroelectronics
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MJD47T4 Information
MJD47T4 by STMicroelectronics is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MJD47T4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AH9859
|
Newark | Trans, Npn, 250V, 1A, 150Deg C, 15W, Transistor Polarity:Npn, Collector Emitter Voltage V(Br)Ceo:250V, Transition Frequency Ft:10Mhz, Power Dissipation Pd:15W, Dc Collector Current:1A, Dc Current Gain Hfe:10Hfe, Transistor Case Rohs Compliant: Yes |Stmicroelectronics MJD47T4 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 12084 |
|
$0.4960 / $0.9830 | Buy Now |
|
DISTI #
497-2482-1-ND
|
DigiKey | TRANS NPN 250V 1A DPAK Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9407 In Stock |
|
$0.3396 / $1.4600 | Buy Now |
|
DISTI #
MJD47T4
|
Avnet Americas | Trans GP BJT NPN 250V 1A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: MJD47T4) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$0.2342 / $0.2490 | Buy Now |
|
DISTI #
511-MJD47
|
Mouser Electronics | Bipolar Transistors - BJT NPN Hi-Volt Fast Sw RoHS: Compliant | 14238 |
|
$0.3470 / $1.1400 | Buy Now |
|
DISTI #
V72:2272_06556012
|
Arrow Electronics | Trans GP BJT NPN 250V 1A 15000mW 3-Pin(2+Tab) DPAK T/R Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2417 Container: Cut Strips | Americas - 1495 |
|
$0.2604 / $0.4968 | Buy Now |
|
|
STMicroelectronics | NPN power transistor RoHS: Compliant Min Qty: 1 | 14238 |
|
$0.4200 / $1.1200 | Buy Now |
|
|
Future Electronics | MJD47 Series NPN 250 V 1 A High Voltage Fast-Switching Power Transistor TO-252-3 RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 2500 Lead time: 14 Weeks Container: Reel | 0Reel |
|
$0.1670 / $0.1720 | Buy Now |
|
DISTI #
80318548
|
Verical | Trans GP BJT NPN 250V 1A 15000mW 3-Pin(2+Tab) DPAK T/R Min Qty: 24 Package Multiple: 1 Date Code: 2417 | Americas - 1495 |
|
$0.2604 / $0.4350 | Buy Now |
|
|
Bristol Electronics | 2070 |
|
RFQ | ||
|
|
Bristol Electronics | 488 |
|
RFQ |
Part Details for MJD47T4
MJD47T4 CAD Models
MJD47T4 Part Data Attributes
|
|
MJD47T4
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
MJD47T4
STMicroelectronics
HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-252AA | |
| Package Description | TO-252, DPAK-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 1 A | |
| Collector-Emitter Voltage-Max | 250 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 10 | |
| JEDEC-95 Code | TO-252AA | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 15 W | |
| Power Dissipation-Max (Abs) | 15 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 10 MHz | |
| VCEsat-Max | 1 V |
MJD47T4 Frequently Asked Questions (FAQ)
-
The MJD47T4 can operate from -40°C to 150°C (TJ), but the maximum junction temperature (TJ) should not exceed 150°C for reliable operation.
-
To ensure proper biasing, connect the base to the emitter through a resistor (Rb) and the collector to the emitter through another resistor (Rc). The recommended values are Rb = 1 kΩ and Rc = 2.2 kΩ.
-
To minimize thermal resistance, use a thermal pad with a minimum size of 2 mm x 2 mm, and ensure the PCB has a thermal via array underneath the pad. Keep the thermal pad away from other components to prevent thermal coupling.
-
Yes, the MJD47T4 can be used in switching applications, but be aware of the maximum switching frequency (fs) and the minimum on-time (ton). The maximum fs is 100 kHz, and the minimum ton is 1 μs.
-
To protect the MJD47T4 from ESD, use an ESD protection diode (e.g., 1.5KE6.8A) between the base and emitter, and ensure the PCB has an ESD protection network.
