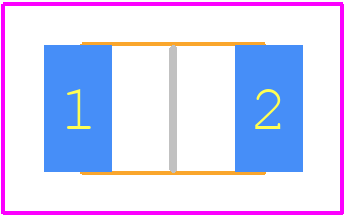

Footprint
-

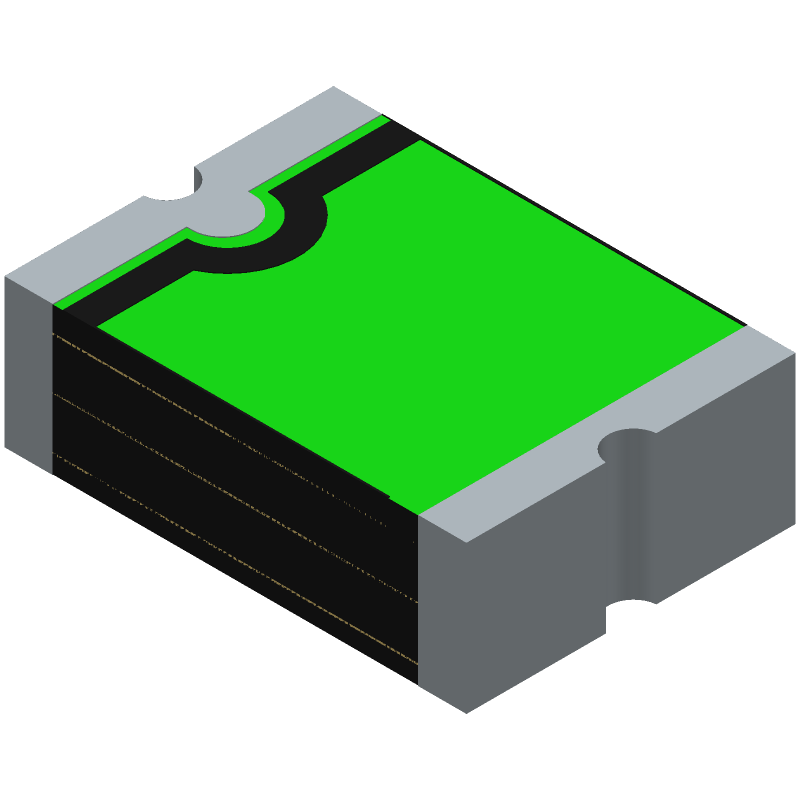

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MINISMDC110F/24-2 by Littelfuse Inc
Results Overview of MINISMDC110F/24-2 by Littelfuse Inc
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MINISMDC110F/24-2 Information
MINISMDC110F/24-2 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MINISMDC110F/24-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69K8012
|
Newark | Ptc Resettable Fuse, 24Vdc, 1812, Pptc Case Style:1812 (4532 Metric), Product Range:Polyswitch Minismdc Series, Voltage Rating:24Vdc, Holding Current:1.1A, Trip Current:2.2A, Time To Trip:0.5S, Current Rating Max:20A, Length:4.73Mm Rohs Compliant: Yes |Littelfuse MINISMDC110F/24-2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 549 |
|
$0.2900 / $0.5980 | Buy Now |
|
DISTI #
40K7558
|
Newark | Ptc Resettable Fuse, 24Vdc, 1812, Pptc Case Style:1812 (4532 Metric), Product Range:Polyswitch Minismdc Series, Voltage Rating:24Vdc, Holding Current:1.1A, Trip Current:2.2A, Time To Trip:0.5S, Current Rating Max:20A, Length:4.73Mm Rohs Compliant: Yes |Littelfuse MINISMDC110F/24-2 RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2210 / $0.2450 | Buy Now |
|
DISTI #
MINISMDC110F24-2CT-ND
|
DigiKey | PTC RESET FUSE 24V 1.1A 1812 Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
8745 In Stock |
|
$0.2253 / $0.6100 | Buy Now |
|
DISTI #
650-MINISMDC110F/24
|
Mouser Electronics | Resettable Fuses - PPTC 24V 1.1A-HD 40A MAX RoHS: Compliant | 27850 |
|
$0.2570 / $0.5100 | Buy Now |
|
|
Future Electronics | MINISMDC Series 1812 24 V 1.1 A Surface Mount PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks Container: Reel | 15000Reel |
|
$0.2250 / $0.2350 | Buy Now |
|
|
Future Electronics | MINISMDC Series 1812 24 V 1.1 A Surface Mount PolySwitch Resettable Fuse RoHS: Compliant pbFree: Yes Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.2250 / $0.2350 | Buy Now |
|
|
Bristol Electronics | 16137 |
|
RFQ | ||
|
|
Bristol Electronics | 1500 |
|
RFQ | ||
|
|
Quest Components | FUSE,PTC,RESETTABLE,1.1A,24V,SMD,1812-CASE,TandR | 1200 |
|
$0.3000 / $0.7500 | Buy Now |
|
|
Quest Components | FUSE,PTC,RESETTABLE,1.1A,24V,SMD,1812-CASE,TandR | 563 |
|
$1.2920 / $3.1320 | Buy Now |
Part Details for MINISMDC110F/24-2
MINISMDC110F/24-2 CAD Models
MINISMDC110F/24-2 Part Data Attributes
|
|
MINISMDC110F/24-2
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
MINISMDC110F/24-2
Littelfuse Inc
PTC Resettable Fuse, Surface Mount, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.46 mm | |
| Package Length | 4.83 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.41 mm | |
| Packing Method | TR, EMBOSSED, 7 INCH | |
| Reference Standard | CSA; TUV; UL | |
| Resistance | 0.06 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 24 V |
MINISMDC110F/24-2 Frequently Asked Questions (FAQ)
-
The recommended PCB layout and land pattern for the MINISMDC110F/24-2 can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly and PCB layout considerations.
-
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the Littelfuse soldering guide. Additionally, use a solder with a melting point below 220°C to prevent damage to the fuse.
-
The maximum allowable voltage drop across the fuse is 0.5V. Exceeding this voltage drop may affect the fuse's performance and reliability.
-
The MINISMDC110F/24-2 is rated for operation up to 125°C. However, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure the fuse operates within its specified limits.
-
To select the correct fuse, consider factors such as the circuit's voltage, current, and power ratings. Consult the Littelfuse fuse selection guide or contact a Littelfuse application engineer for assistance.
