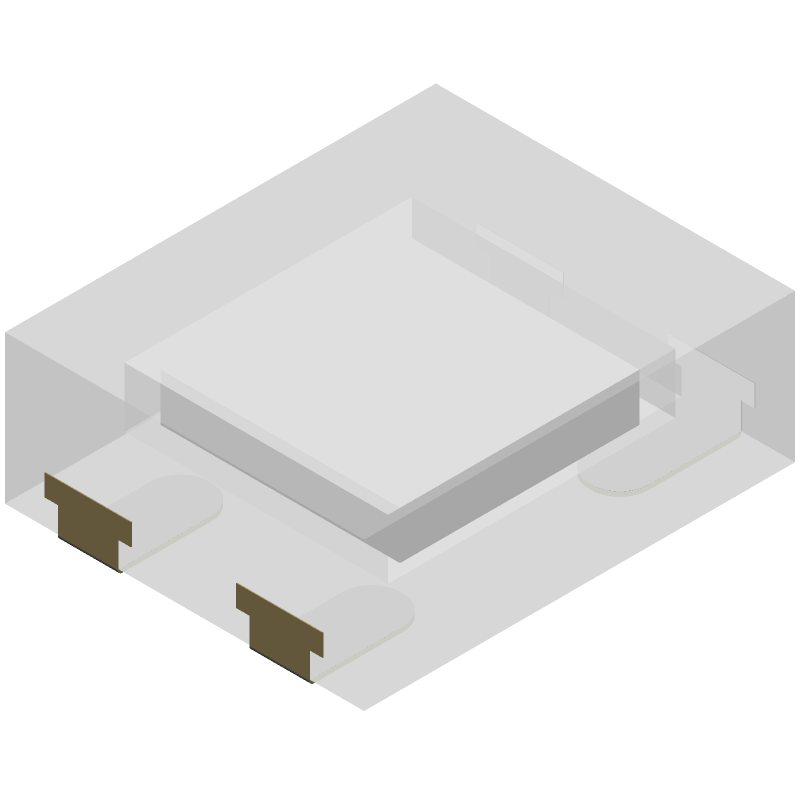

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MICROFC-10035-SMT-TR1 by onsemi
Results Overview of MICROFC-10035-SMT-TR1 by onsemi
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MICROFC-10035-SMT-TR1 Information
MICROFC-10035-SMT-TR1 by onsemi is a Photo Diode.
Photo Diodes are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for MICROFC-10035-SMT-TR1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85AC2875
|
Newark | C-Series 1Mm 35U Mlp/ Reel |Onsemi MICROFC-10035-SMT-TR1 RoHS: Not Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$18.3700 / $19.3000 | Buy Now |
|
DISTI #
82AC2980
|
Newark | Sipm Ic, 35Um, Cwdfn-4, Active Area Dimensions:1Mm X 1Mm, Microcell Size:35Μm, Optimized Wavelength:420Nm, Sensor Case/Package:Cwdfn, No. Of Pins:4Pins, Msl:-, Product Range:C-Series Sipm Sensor, No. Of Microcells:576Microcells Rohs Compliant: Yes |Onsemi MICROFC-10035-SMT-TR1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
5556-MICROFC-10035-SMT-TR1-ND
|
DigiKey | SENSOR PHOTODIODE 420NM 4SMD Min Qty: 1 Lead time: 16 Weeks Container: Strip | Temporarily Out of Stock |
|
$21.9520 / $27.5100 | Buy Now |
|
DISTI #
MICROFC-10035-SMT-TR1
|
Avnet Americas | C-SERIES 1MM 35U MLP - Tape and Reel (Alt: MICROFC-10035-SMT-TR1) RoHS: Compliant Min Qty: 33 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Reel | 898 Factory Stock |
|
$19.0583 / $20.8611 | Buy Now |
|
DISTI #
863-MFC10035SMTTR1
|
Mouser Electronics | Photodiodes C-SERIES 1MM 35U MLP RoHS: Compliant | 9 |
|
$26.0100 / $35.0400 | Buy Now |
|
|
Onlinecomponents.com | Silicon Photomultiplier Sensors, C-Series (SiPM) 1 mm, 35 µm, MLP RoHS: Compliant | 0 |
|
$18.4900 / $22.7000 | Buy Now |
|
DISTI #
87653853
|
Verical | Photomultiplier Module 3M Gain 4-Pin CWDFN T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 | Americas - 898 |
|
$19.4179 | Buy Now |
|
DISTI #
MICROFC-10035-SMT-TR1
|
Avnet Silica | CSERIES 1MM 35U MLP (Alt: MICROFC-10035-SMT-TR1) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MICROFC-10035-SMT-TR1
|
EBV Elektronik | CSERIES 1MM 35U MLP (Alt: MICROFC-10035-SMT-TR1) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 1748 |
|
RFQ |
Part Details for MICROFC-10035-SMT-TR1
MICROFC-10035-SMT-TR1 CAD Models
MICROFC-10035-SMT-TR1 Part Data Attributes
|
|
MICROFC-10035-SMT-TR1
onsemi
Buy Now
Datasheet
|
Compare Parts:
MICROFC-10035-SMT-TR1
onsemi
Silicon Photomultiplier Sensors, C-Series (SiPM) 1 mm, 35 µm, MLP, CWDFN-4, 1-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | CWDFN-4 | |
| Package Description | SMT-4 | |
| Manufacturer Package Code | 512AK | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.60.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | LOW NOISE | |
| Configuration | COMPLEX | |
| Dark Current-Max | 49 nA | |
| Infrared Range | NO | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | AVALANCHE PHOTODIODE | |
| Packing Method | TR | |
| Peak Wavelength | 420 nm | |
| Reverse Breakdown Voltage-Min | 24.2 V | |
| Semiconductor Material | Silicon | |
| Shape | RECTANGULAR | |
| Size | 1 mm | |
| Surface Mount | YES |
MICROFC-10035-SMT-TR1 Frequently Asked Questions (FAQ)
-
The recommended land pattern for MICROFC-10035-SMT-TR1 can be found in the onsemi application note AND8323/D, which provides guidelines for PCB layout and assembly.
-
To ensure reliability in high-temperature applications, follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to reduce the junction temperature.
-
The maximum allowable voltage for the MICROFC-10035-SMT-TR1 is 100 V, as specified in the datasheet. Exceeding this voltage may result in device damage or failure.
-
Yes, the MICROFC-10035-SMT-TR1 is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing the PCB layout and selecting components.
-
Handle the MICROFC-10035-SMT-TR1 by the body, avoiding touching the leads or electrical contacts. Store the devices in their original packaging or in a dry, ESD-protected environment to prevent damage from electrostatic discharge or moisture.
