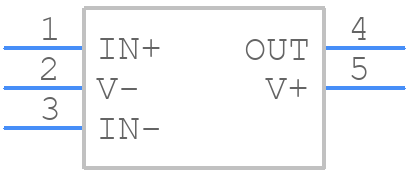

Part Symbol
-
Footprint
-

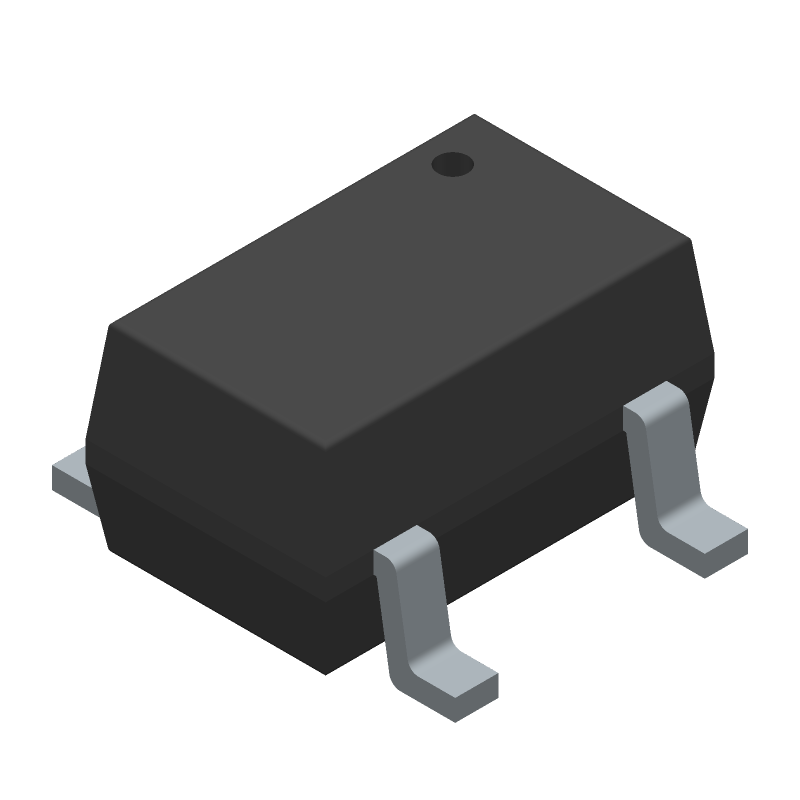

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MIC920YC5-TR by Microchip Technology Inc
Results Overview of MIC920YC5-TR by Microchip Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MIC920YC5-TR Information
MIC920YC5-TR by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MIC920YC5-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71Y3220
|
Newark | Op Amp 3000V/Us, 550Ua, 80Mhz 5 Sc70 - T/R Rohs Compliant: Yes |Microchip MIC920YC5-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3820 | Buy Now |
|
DISTI #
72AC6226
|
Newark | Opamp, 80Mhz, -40 To 85Deg C, No. Of Amplifiers:1 Amplifier, Bandwidth:80Mhz, Slew Rate:3Kv/Μs, Supply Voltage Range:± 2.5V To ± 9V, Amplifier Case Style:Sc-70, No. Of Pins:5Pins, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Microchip MIC920YC5-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
576-4560-1-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SC70-5 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
8717 In Stock |
|
$0.3875 / $0.4700 | Buy Now |
|
DISTI #
MIC920YC5-TR
|
Avnet Americas | OP AMP 3000V/US 550UA 80MHZ - Tape and Reel (Alt: MIC920YC5-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.3627 / $0.3875 | Buy Now |
|
DISTI #
998-MIC920YC5TR
|
Mouser Electronics | Operational Amplifiers - Op Amps Op Amp 3000V/us, 550uA, 80MHz RoHS: Compliant | 10978 |
|
$0.3870 / $0.4700 | Buy Now |
|
DISTI #
MIC920YC5-TR
|
Microchip Technology Inc | Op Amp 3000V/us, 550uA, 80MHz, SC70, Projected EOL: 2034-06-05 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel | 24084 |
|
$0.3500 / $0.4700 | Buy Now |
|
|
Onlinecomponents.com | Op Amp - Single - 80 Mhz GBP - +/-2.5 to 9 VDC - 550uA - 5-lead SC70 RoHS: Compliant |
6250 In Stock 24000 Factory Stock |
|
$0.3724 / $0.3780 | Buy Now |
|
DISTI #
87251700
|
Verical | Op Amp Single High Speed Amplifier ±9V 5-Pin SC-70 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 1913 | Americas - 6000 |
|
$0.4841 / $0.4914 | Buy Now |
|
|
NAC | Op Amp 3000V/us, 550uA, 80MHz - Package: 5 SC70 - T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$0.3900 / $0.4800 | Buy Now |
|
DISTI #
MIC920YC5-TR
|
Avnet Silica | OP AMP 3000VUS 550UA 80MHZ (Alt: MIC920YC5-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for MIC920YC5-TR
MIC920YC5-TR CAD Models
MIC920YC5-TR Part Data Attributes
|
|
MIC920YC5-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC920YC5-TR
Microchip Technology Inc
OP-AMP, 5000uV OFFSET-MAX, 67MHz BAND WIDTH, PDSO5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | SC-70, 5 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.6 µA | |
| Common-mode Reject Ratio-Min | 75 dB | |
| Common-mode Reject Ratio-Nom | 85 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.025 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -10 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Slew Rate-Nom | 1350 V/us | |
| Supply Current-Max | 0.8 mA | |
| Supply Voltage Limit-Max | 10 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Unity Gain BW-Nom | 67000 | |
| Voltage Gain-Min | 1778 | |
| Wideband | NO | |
| Width | 1.25 mm |
MIC920YC5-TR Frequently Asked Questions (FAQ)
-
A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, thermal vias can be used to improve heat dissipation.
-
Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 125°C. Also, consider using a heat sink or thermal interface material to improve heat dissipation.
-
The MIC920YC5-TR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
-
Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage and ensure it's within the recommended range. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB.
-
Use a reflow soldering process with a peak temperature of 260°C. Ensure that the PCB is designed with a solder mask to prevent solder bridging. Use a solder with a melting point above 217°C to prevent damage to the device.
