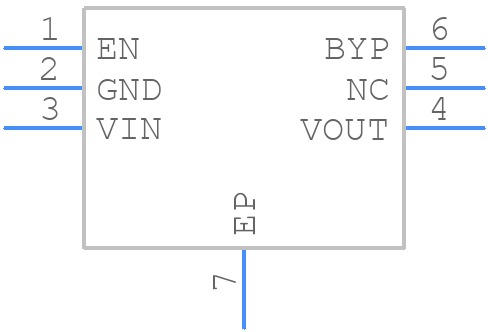

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MIC5319-3.3YML-TR by Microchip Technology Inc
Results Overview of MIC5319-3.3YML-TR by Microchip Technology Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Internet of Things (IoT)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Telecommunications
Communication and Networking
Automotive
MIC5319-3.3YML-TR Information
MIC5319-3.3YML-TR by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC5319-3.3YML-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79AH4338
|
Newark | Vdfn 500Ma Ucap Ultra-Low Dropout, High Psrr Ldo Regulator Rohs Compliant: Yes |Microchip MIC5319-3.3YML-TR RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 5000 |
|
$1.4800 / $1.5300 | Buy Now |
|
DISTI #
71Y2306
|
Newark | 500Ma Ucap Ultra-Low Dropout, High Psrr Ldo Regulator 6 Vdfn 2X2X0.9Mm T/R Rohs Compliant: Yes |Microchip MIC5319-3.3YML-TR RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.7300 | Buy Now |
|
DISTI #
576-2867-1-ND
|
DigiKey | IC REG LINEAR 3.3V 500MA 6-TMLF Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
12231 In Stock |
|
$1.4300 / $1.8900 | Buy Now |
|
DISTI #
MIC5319-3.3YML-TR
|
Avnet Americas | 500MA UCAP ULTRA-LOW DROPOUT HIGH PSRR LDO REGULATOR - Tape and Reel (Alt: MIC5319-3.3YML-TR) RoHS: Not Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 7 Weeks, 0 Days Container: Reel | 5000 |
|
$1.4274 / $1.5250 | Buy Now |
|
DISTI #
998-MIC5319-3.3YMLTR
|
Mouser Electronics | LDO Voltage Regulators 500mA uCap Ultra-Low Dropout, High PSRR LDO Regulator RoHS: Compliant | 7784 |
|
$1.4300 / $1.8900 | Buy Now |
|
DISTI #
V72:2272_07851150
|
Arrow Electronics | LDO Regulator Pos 3.3V 0.5A 6-Pin DFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2040 Container: Cut Strips | Americas - 10982 |
|
$1.5640 / $1.7770 | Buy Now |
|
DISTI #
MIC5319-3.3YML-TR
|
Microchip Technology Inc | 500mA uCap Ultra-Low Dropout, High PSRR LDO Regulator, VDFN, Projected EOL: 2034-05-10 COO: China, Malaysia ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel | 40000 |
|
$1.3600 / $1.8900 | Buy Now |
|
|
Onlinecomponents.com | LDO Regulator Pos 3.3V 0.5A 6-Pin DFN EP T/R RoHS: Compliant |
4100 In Stock 50000 Factory Stock |
|
$1.3100 / $3.8400 | Buy Now |
|
DISTI #
65155810
|
Verical | LDO Regulator Pos 3.3V 0.5A 6-Pin DFN EP T/R RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2243 | Americas - 4100 |
|
$2.2743 / $4.9935 | Buy Now |
|
|
Bristol Electronics | Min Qty: 2 | 322 |
|
$1.0500 / $3.0000 | Buy Now |
Part Details for MIC5319-3.3YML-TR
MIC5319-3.3YML-TR CAD Models
MIC5319-3.3YML-TR Part Data Attributes
|
|
MIC5319-3.3YML-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC5319-3.3YML-TR
Microchip Technology Inc
3.3V FIXED POSITIVE LDO REGULATOR, 0.4V DROPOUT, PDSO6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | MLF-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.4 V | |
| Dropout Voltage1-Nom | 0.2 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.3 V | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Line Regulation-Max | 0.01188% | |
| Load Regulation-Max | 0.0165% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 3.366 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC6,.1,26 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 0.9 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 2% | |
| Width | 2 mm |
Alternate Parts for MIC5319-3.3YML-TR
This table gives cross-reference parts and alternative options found for MIC5319-3.3YML-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MIC5319-3.3YML-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MIC5319-3.0YML-TR | Microchip Technology Inc | $1.8000 | 3V FIXED POSITIVE LDO REGULATOR, 0.4V DROPOUT, PDSO6 | MIC5319-3.3YML-TR vs MIC5319-3.0YML-TR |
| MIC5319-2.6YML-TR | Microchip Technology Inc | $1.9100 | 2.6V FIXED POSITIVE LDO REGULATOR, 0.4V DROPOUT, PDSO6 | MIC5319-3.3YML-TR vs MIC5319-2.6YML-TR |
| MIC5319-3.3BMLTR | Microchip Technology Inc | Check for Price | Fixed Positive LDO Regulator, 3.3V, 0.4V Dropout, CMOS, PDSO6, 2 X 2 MM, MLF-6 | MIC5319-3.3YML-TR vs MIC5319-3.3BMLTR |
| MIC5319-2.9YML-TR | Microchip Technology Inc | Check for Price | 2.9V FIXED POSITIVE LDO REGULATOR, 0.4V DROPOUT, PDSO6 | MIC5319-3.3YML-TR vs MIC5319-2.9YML-TR |
| MIC5319-3.0YML | Microchip Technology Inc | Check for Price | 3V FIXED POSITIVE LDO REGULATOR, 0.4V DROPOUT, PDSO6 | MIC5319-3.3YML-TR vs MIC5319-3.0YML |
| MIC5319-2.5BMLTR | Microchip Technology Inc | Check for Price | Fixed Positive LDO Regulator, 2.5V, 0.4V Dropout, CMOS, PDSO6, 2 X 2 MM, MLF-6 | MIC5319-3.3YML-TR vs MIC5319-2.5BMLTR |
| MIC5319-2.8BMLTR | Micrel Inc | Check for Price | Fixed Positive LDO Regulator, 2.8V, 0.4V Dropout, CMOS, PDSO6, 2 X 2 MM, MLF-6 | MIC5319-3.3YML-TR vs MIC5319-2.8BMLTR |
| MIC5319-2.5YML-TR | Microchip Technology Inc | Check for Price | 2.5V FIXED POSITIVE LDO REGULATOR, 0.4V DROPOUT, PDSO6 | MIC5319-3.3YML-TR vs MIC5319-2.5YML-TR |
| MIC5319-2.8YML-TR | Microchip Technology Inc | Check for Price | 2.8V FIXED POSITIVE LDO REGULATOR, 0.4V DROPOUT, PDSO6 | MIC5319-3.3YML-TR vs MIC5319-2.8YML-TR |
MIC5319-3.3YML-TR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the MIC5319-3.3YML-TR is 6V. Exceeding this voltage may damage the device.
-
To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR of 1 ohm or less.
-
The minimum input voltage required for the MIC5319-3.3YML-TR to operate is 2.5V. However, the device can operate down to 2.2V with reduced performance.
-
The MIC5319-3.3YML-TR is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the output voltage may drop. It is recommended to derate the output current at high temperatures.
-
The output voltage tolerance of the MIC5319-3.3YML-TR is ±2%. This means that the output voltage can vary by up to 2% of the nominal output voltage (3.3V) over the operating temperature range.
