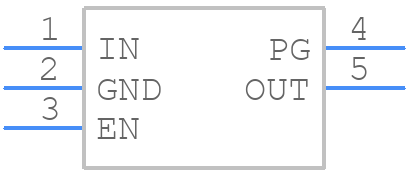

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MIC5268-1.2YM5-TR by Microchip Technology Inc
Results Overview of MIC5268-1.2YM5-TR by Microchip Technology Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MIC5268-1.2YM5-TR Information
MIC5268-1.2YM5-TR by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC5268-1.2YM5-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71Y1980
|
Newark | 1.2V Linear Regulator With Power Good 5 Sot-23 T/R Rohs Compliant: Yes |Microchip MIC5268-1.2YM5-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
|
NAC | 1.2V Linear Regulator with Power Good - Package: 5 SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
RFQ |
Part Details for MIC5268-1.2YM5-TR
MIC5268-1.2YM5-TR CAD Models
MIC5268-1.2YM5-TR Part Data Attributes
|
|
MIC5268-1.2YM5-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC5268-1.2YM5-TR
Microchip Technology Inc
1.2V FIXED POSITIVE LDO REGULATOR, PDSO5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | LSSOP, | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Microchip | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.5 V | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 2.7 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Line Regulation-Max | 0.01188% | |
| Load Regulation-Max | 0.06% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 1.248 V | |
| Output Voltage1-Min | 1.152 V | |
| Output Voltage1-Nom | 1.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Voltage Tolerance-Max | 4% | |
| Width | 1.6 mm |
Alternate Parts for MIC5268-1.2YM5-TR
This table gives cross-reference parts and alternative options found for MIC5268-1.2YM5-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MIC5268-1.2YM5-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MIC5268-1.2YM5 | Microchip Technology Inc | Check for Price | 1.2V FIXED POSITIVE LDO REGULATOR, PDSO5 | MIC5268-1.2YM5-TR vs MIC5268-1.2YM5 |
| MIC5268-1.2BM5TR | Micrel Inc | Check for Price | Fixed Positive LDO Regulator 1.2V CMOS PDSO5 | MIC5268-1.2YM5-TR vs MIC5268-1.2BM5TR |
| MIC5268-1.2BM5 | Microchip Technology Inc | Check for Price | Fixed Positive LDO Regulator, 1.2V, CMOS, PDSO5, SOT-23, 5 PIN | MIC5268-1.2YM5-TR vs MIC5268-1.2BM5 |
| MIC5268-1.2BM5TR | Microchip Technology Inc | Check for Price | Fixed Positive LDO Regulator, 1.2V, CMOS, PDSO5, SOT-23, 5 PIN | MIC5268-1.2YM5-TR vs MIC5268-1.2BM5TR |
| MIC5268-1.2BM5 | Micrel Inc | Check for Price | Fixed Positive LDO Regulator 1.2V CMOS PDSO5 | MIC5268-1.2YM5-TR vs MIC5268-1.2BM5 |
MIC5268-1.2YM5-TR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the MIC5268-1.2YM5-TR is 6V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
To ensure stability, follow the layout guidelines in the datasheet, use a low-ESR output capacitor, and add a 10nF-100nF ceramic capacitor between the VIN and GND pins to filter out noise.
-
The minimum input capacitance required is 1uF, as specified in the datasheet. Using a smaller capacitance may affect the regulator's stability and performance.
-
The MIC5268-1.2YM5-TR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's specifications accordingly.
-
The output voltage tolerance is specified as ±2% in the datasheet. To calculate the tolerance, multiply the nominal output voltage (1.2V) by the tolerance percentage (2%). This gives a tolerance range of ±0.024V.
