MIC5225-3.3YM5-TR Information
MIC5225-3.3YM5-TR by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC5225-3.3YM5-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AH1178
|
Newark | Ldo, Fixed, 3.3V, 0.15A, Sot-23-5, Output Type:Fixed, Input Voltage Min:2.3V, Input Voltage Max:16V, No. Of Outputs:1Outputs, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Output, Ic Mounting:Surface Mount Rohs Compliant: Yes |Microchip MIC5225-3.3YM5-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 9058 |
|
$0.3860 / $0.4160 | Buy Now |
|
DISTI #
72Y5341
|
Newark | Ldo, Fixed, 3.3V, 0.15A, Sot-23-5, Output Type:Fixed, Input Voltage Min:2.3V, Input Voltage Max:16V, Fixed Output Voltage Nom.:3.3V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:150Ma Rohs Compliant: Yes |Microchip MIC5225-3.3YM5-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
71Y1710
|
Newark | High Vin, Low Iq Regulator 5 Sot-23 T/R Rohs Compliant: Yes |Microchip MIC5225-3.3YM5-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4030 | Buy Now |
|
DISTI #
576-2980-1-ND
|
DigiKey | IC REG LINEAR 3.3V 150MA SOT23-5 Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
62200 In Stock |
|
$0.3800 / $0.5300 | Buy Now |
|
DISTI #
52AH1178
|
Avnet Americas | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R - Product that comes on tape, but is not reeled (Alt: 52AH1178) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 54 Weeks, 5 Days Container: Ammo Pack | 9058 Partner Stock |
|
$0.4210 / $0.5510 | Buy Now |
|
DISTI #
MIC5225-3.3YM5-TR
|
Avnet Americas | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R - Tape and Reel (Alt: MIC5225-3.3YM5-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.3800 / $0.5300 | Buy Now |
|
DISTI #
998-MIC5225-3.3YM5TR
|
Mouser Electronics | LDO Voltage Regulators High Vin, Low Iq Regulator RoHS: Compliant | 8205 |
|
$0.3800 / $0.5300 | Buy Now |
|
DISTI #
V36:1790_07451801
|
Arrow Electronics | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks Date Code: 1944 | Americas - 9000 |
|
$0.3970 | Buy Now |
|
DISTI #
V72:2272_07451801
|
Arrow Electronics | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2248 Container: Cut Strips | Americas - 8666 |
|
$0.4564 / $0.5184 | Buy Now |
|
DISTI #
MIC5225-3.3YM5-TR
|
Microchip Technology Inc | High Vin, Low Iq Regulator, SOT-23, Projected EOL: 2034-02-07 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel |
2640 Alternates Available |
|
$0.3700 / $0.5300 | Buy Now |
Part Details for MIC5225-3.3YM5-TR

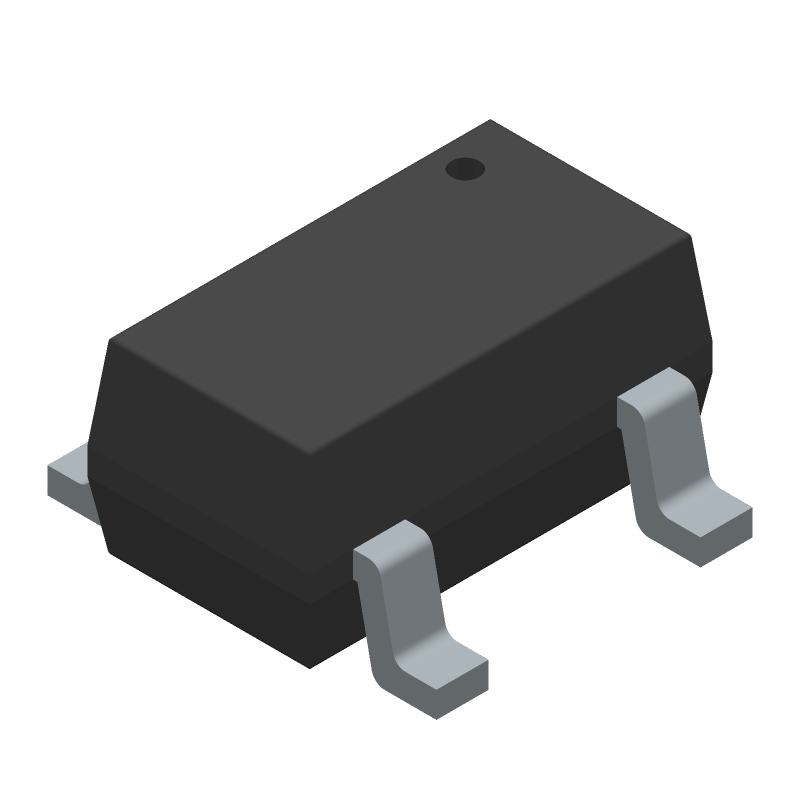

MIC5225-3.3YM5-TR CAD Models
MIC5225-3.3YM5-TR Part Data Attributes
|
|
MIC5225-3.3YM5-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC5225-3.3YM5-TR
Microchip Technology Inc
3.3V FIXED POSITIVE LDO REGULATOR, 0.45V DROPOUT, PDSO5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.45 V | |
| Dropout Voltage1-Nom | 0.31 V | |
| Input Voltage Absolute-Max | 18 V | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 4.3 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Load Regulation-Max | 0.033% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 3.366 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Voltage Tolerance-Max | 2% | |
| Width | 1.6 mm |
MIC5225-3.3YM5-TR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the MIC5225-3.3YM5-TR is 6V. Exceeding this voltage may damage the device.
-
To ensure stability, a minimum output capacitance of 10uF is recommended, and the input capacitor should be at least 1uF. Additionally, the PCB layout should be designed to minimize noise and parasitic inductance.
-
The minimum input voltage required for the MIC5225-3.3YM5-TR to operate is 2.5V. However, the device can operate down to 2.2V with reduced performance.
-
The MIC5225-3.3YM5-TR is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the output voltage may drop. It's recommended to derate the output current and voltage at high temperatures.
-
The output voltage tolerance of the MIC5225-3.3YM5-TR is ±2%. This means that the output voltage can vary by up to 2% of the nominal output voltage (3.3V) due to manufacturing tolerances and operating conditions.
