MIC29302AWU by:

FIXED POSITIVE LDO REGULATOR

Part Details for MIC29302AWU by Microchip Technology Inc

Results Overview of MIC29302AWU by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Transportation and Logistics Renewable Energy Automotive Robotics and Drones

MIC29302AWU Information

MIC29302AWU by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MIC29302AWU

Part # Distributor Description Stock Price Buy
DISTI # 64AH4118
Newark Ldo Volt Reg, 3A, 1,24-15V, To-263-5, Output Type:Adjustable, Input Voltage Min:3V, Input Voltage Max:16V, Fixed Output Voltage Nom.:-, Adjustable Output Voltage Min:1.24V, Adjustable Output Voltage Max:15V, Output Current:3A, Rohs Compliant: Yes |Microchip MIC29302AWU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 1166
  • 1 $3.3500
  • 10 $3.1300
  • 25 $2.9100
  • 50 $2.8200
  • 100 $2.7200
$2.7200 / $3.3500 Buy Now
DISTI # 576-4072-ND
DigiKey IC REG LINEAR POS ADJ 3A TO263-5 Min Qty: 1 Lead time: 7 Weeks Container: Tube 305
In Stock
  • 1 $2.6300
  • 25 $2.1900
  • 100 $2.0000
$2.0000 / $2.6300 Buy Now
DISTI # MIC29302AWU
Avnet Americas LDO Regulator Pos 1.24V to 15V 3A 5-Pin TO-263 Tube - Rail/Tube (Alt: MIC29302AWU) RoHS: Compliant Min Qty: 900 Package Multiple: 50 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 250 $0.7839
  • 350 $0.7547
  • 600 $0.7254
  • 1,250 $0.6962
  • 2,500 $0.6669
$0.6669 / $0.7839 Buy Now
DISTI # 998-MIC29302AWU
Mouser Electronics LDO Voltage Regulators 3A Fast-Response LDO RoHS: Compliant 465
  • 1 $2.6300
  • 25 $2.1900
  • 100 $2.0000
$2.0000 / $2.6300 Buy Now
DISTI # E54:1762_03615273
Arrow Electronics LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2342 Europe - 15
  • 1 $2.4320
  • 10 $2.4110
  • 25 $2.0670
  • 50 $2.0460
  • 100 $1.9050
$1.9050 / $2.4320 Buy Now
DISTI # V99:2348_07849195
Arrow Electronics LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2231 Americas - 2
  • 1 $1.8470
  • 10 $1.8380
  • 25 $1.6810
  • 50 $1.6640
  • 100 $1.5990
$1.5990 / $1.8470 Buy Now
DISTI # MIC29302AWU
Microchip Technology Inc 3A Fast-Response LDO, DDPAK, Projected EOL: 2039-10-18 COO: China ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 3600

Alternates Available
  • 1 $2.6300
  • 25 $2.1900
  • 100 $2.0000
  • 1,000 $1.6600
  • 5,000 $1.5400
$1.5400 / $2.6300 Buy Now
Onlinecomponents.com LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 Tube RoHS: Compliant 3600 Factory Stock
  • 125 $2.0000
  • 250 $1.5000
  • 375 $1.4000
  • 500 $1.3700
$1.3700 / $2.0000 Buy Now
DISTI # 87339302
Verical LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 Tube RoHS: Compliant Min Qty: 32 Package Multiple: 1 Americas - 466
  • 32 $3.1840
  • 50 $2.7440
$2.7440 / $3.1840 Buy Now
DISTI # 81421630
Verical LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 Tube RoHS: Compliant Min Qty: 22 Package Multiple: 1 Date Code: 2342 Americas - 157
  • 22 $1.3900
  • 100 $1.3500
$1.3500 / $1.3900 Buy Now
DISTI # 73522052
Verical LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 Tube RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2342 Americas - 12
  • 4 $2.4320
  • 10 $2.4110
  • 25 $2.0670
  • 50 $2.0460
  • 100 $1.9050
$1.9050 / $2.4320 Buy Now
DISTI # MIC29302AWU
TME IC: voltage regulator, LDO,linear,adjustable, 1.24÷15V, 3A, SMD Min Qty: 1 312
  • 1 $2.4700
  • 3 $2.1200
  • 10 $1.7900
  • 50 $1.5500
$1.5500 / $2.4700 Buy Now
NAC 3A Fast-Response LDO - Package: 5 DDPAK TUBE RoHS: Compliant Min Qty: 250 Package Multiple: 50 Container: Tube 0
  • 1 $1.5400
  • 100 $1.3900
  • 500 $1.2800
  • 1,000 $1.2500
$1.2500 / $1.5400 Buy Now
DISTI # MIC29302AWU
Avnet Silica LDO Regulator Pos 124V to 15V 3A 5Pin TO263 Tube (Alt: MIC29302AWU) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 9 Weeks, 0 Days Silica - 100
Buy Now
DISTI # MIC29302AWU
EBV Elektronik LDO Regulator Pos 124V to 15V 3A 5Pin TO263 Tube (Alt: MIC29302AWU) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
LCSC 3A Adjustable 1.24V15V Positive electrode 16V TO-263-5 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS 51
  • 1 $1.4096
  • 10 $1.1756
  • 50 $1.0172
  • 100 $0.8723
  • 500 $0.8074
  • 1,000 $0.7787
$0.7787 / $1.4096 Buy Now
Master Electronics LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 Tube RoHS: Compliant 3600 Factory Stock
  • 125 $2.0000
  • 250 $1.5000
  • 375 $1.4000
  • 500 $1.3700
$1.3700 / $2.0000 Buy Now
Win Source Electronics IC REG LDO ADJ 3A TO263-5 60000
  • 75 $0.8205
  • 155 $0.7676
  • 235 $0.7412
  • 340 $0.6883
  • 440 $0.6618
  • 550 $0.6353
$0.6353 / $0.8205 Buy Now

Part Details for MIC29302AWU

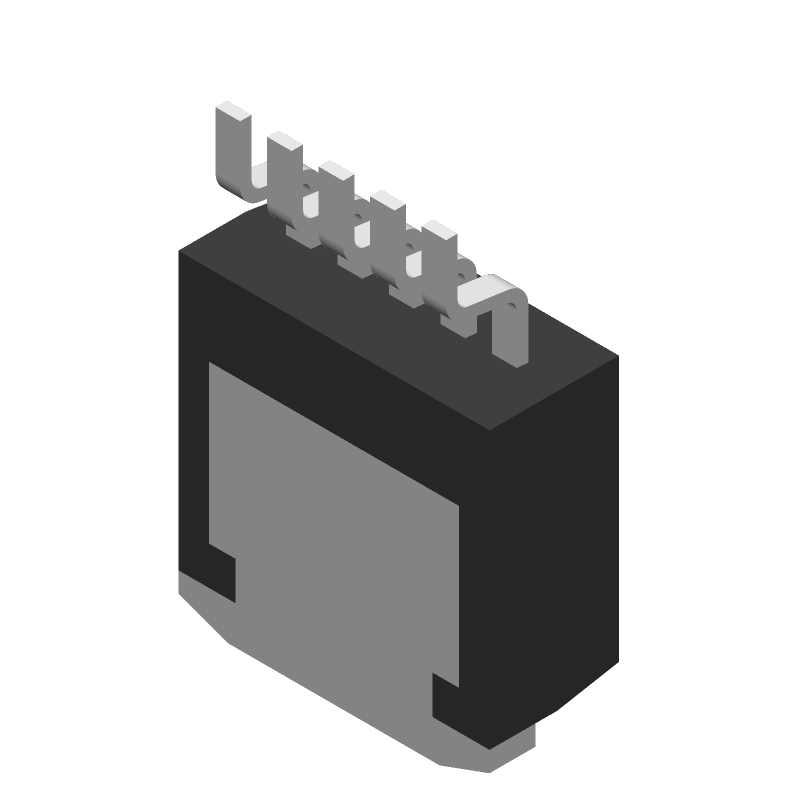

MIC29302AWU CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MIC29302AWU Part Data Attributes

Parametric Data
MIC29302AWU Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MIC29302AWU Microchip Technology Inc FIXED POSITIVE LDO REGULATOR
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description TO-263, 5 PIN
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Adjustability ADJUSTABLE
Dropout Voltage1-Max 0.8 V
Dropout Voltage1-Nom 0.56 V
JESD-30 Code R-PSSO-G5
JESD-609 Code e3
Length 10.363 mm
Line Regulation-Max (%/V) 0.03633
Load Regulation-Max(%) 1%
Moisture Sensitivity Level 3
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 3 A
Output Voltage1-Max 15 V
Output Voltage1-Min 1.24 V
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Equivalence Code SMSIP5H,.6,67
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level TS 16949
Seated Height-Max 4.597 mm
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.702 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Width 8.7805 mm

Alternate Parts for MIC29302AWU

This table gives cross-reference parts and alternative options found for MIC29302AWU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MIC29302AWU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MIC29302AWD Microchip Technology Inc $2.6397 FIXED POSITIVE LDO REGULATOR MIC29302AWU vs MIC29302AWD
