MIC29152WT Information
MIC29152WT by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC29152WT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10AC8122
|
Newark | Ldo, Adj, 1.25V To 25V, 1.5A, To-220-5, Output Type:Adjustable, Input Voltage Min:2.25V, Input Voltage Max:26V, No. Of Outputs:1Outputs, Output Voltage Min:1.25V, Output Voltage Max:25V, Polarity:Positive Output, No. Of Pins:5Pins Rohs Compliant: Yes |Microchip MIC29152WT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 135 |
|
$5.1100 / $6.3000 | Buy Now |
|
DISTI #
576-1111-ND
|
DigiKey | IC REG LIN POS ADJ 1.5A TO220-5 Min Qty: 1 Lead time: 8 Weeks Container: Tube |
262 In Stock |
|
$3.7700 / $4.9600 | Buy Now |
|
DISTI #
MIC29152WT
|
Avnet Americas | LDO Regulator Pos 1.25V to 25V 1.5A 5-Pin TO-220 - Rail/Tube (Alt: MIC29152WT) RoHS: Compliant Min Qty: 150 Package Multiple: 50 Lead time: 8 Weeks, 0 Days Container: Tube | 0 |
|
$2.2113 / $2.3625 | Buy Now |
|
DISTI #
998-MIC29152WT
|
Mouser Electronics | LDO Voltage Regulators 1.5A LDO Adj. + Shutdown RoHS: Compliant | 158 |
|
$3.7700 / $4.9600 | Buy Now |
|
DISTI #
V36:1790_07849058
|
Arrow Electronics | LDO Regulator Pos 1.25V to 25V 1.5A 5-Pin(5+Tab) TO-220 Tube RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 8 Weeks Date Code: 2235 | Americas - 80 |
|
$3.7340 / $4.1020 | Buy Now |
|
DISTI #
MIC29152WT
|
Microchip Technology Inc | 1.5A LDO Adj. + Shutdown, TO-220, Projected EOL: 2034-01-28 COO: China ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube |
5681 Alternates Available |
|
$2.9000 / $4.9600 | Buy Now |
|
|
Onlinecomponents.com | LDO Regulator Pos 1.25V to 26V 1.5A Automotive 5-Pin(5+Tab) TO-220 Tube RoHS: Compliant |
550 In Stock 5800 Factory Stock |
|
$3.5900 / $4.1100 | Buy Now |
|
DISTI #
86232232
|
Verical | LDO Regulator Pos 1.25V to 25V 1.5A 5-Pin(5+Tab) TO-220 Tube RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2235 | Americas - 550 |
|
$4.7320 / $5.3430 | Buy Now |
|
DISTI #
87365520
|
Verical | LDO Regulator Pos 1.25V to 25V 1.5A 5-Pin(5+Tab) TO-220 Tube RoHS: Compliant Min Qty: 19 Package Multiple: 1 | Americas - 300 |
|
$3.7100 | Buy Now |
|
DISTI #
71240706
|
Verical | LDO Regulator Pos 1.25V to 25V 1.5A 5-Pin(5+Tab) TO-220 Tube RoHS: Compliant Min Qty: 12 Package Multiple: 1 Date Code: 2326 | Americas - 99 |
|
$4.0000 / $4.5600 | Buy Now |
Part Details for MIC29152WT

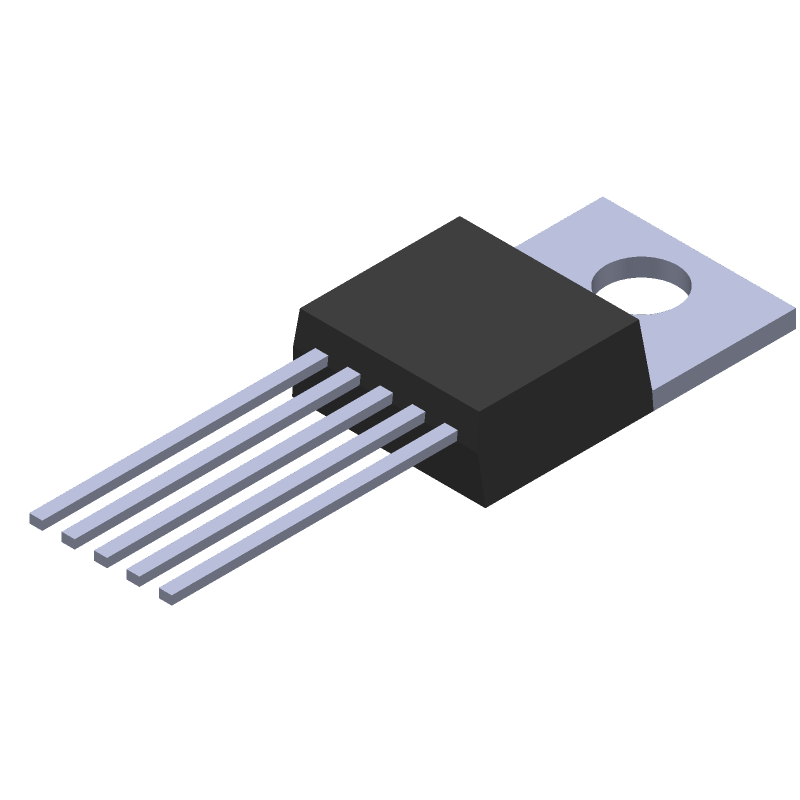

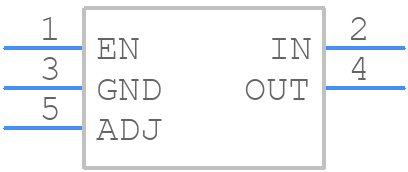

MIC29152WT CAD Models
MIC29152WT Part Data Attributes
|
|
MIC29152WT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC29152WT
Microchip Technology Inc
1.25 V-25V ADJUSTABLE POSITIVE LDO REGULATOR, 0.6V DROPOUT, SFM5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT, TO-220, 5 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Max | 0.6 V | |
| Dropout Voltage1-Nom | 0.35 V | |
| JESD-30 Code | R-XSFM-T5 | |
| JESD-609 Code | e3 | |
| Load Regulation-Max(%) | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 25 V | |
| Output Voltage1-Min | 1.25 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Packing Method | TUBE | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | TS 16949 | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE |
Alternate Parts for MIC29152WT
This table gives cross-reference parts and alternative options found for MIC29152WT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MIC29152WT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM29152T | HTC Korea | $0.6267 | Adjustable Positive LDO Regulator, 1.25V Min, 26V Max, 0.6V Dropout, PSFM5, TO-220, 5 PIN | MIC29152WT vs LM29152T |
| MIC29152WT-L3 | Microchip Technology Inc | Check for Price | Adjustable Positive LDO Regulator, 1.25V Min, 25V Max, 0.6V Dropout | MIC29152WT vs MIC29152WT-L3 |
| MIC29152BT | Rochester Electronics LLC | Check for Price | Adjustable Positive LDO Regulator, | MIC29152WT vs MIC29152BT |
| MIC29152BU | Micrel Inc | Check for Price | Adjustable Positive LDO Regulator, 1.25V Min, 25V Max, 0.6V Dropout, BIPolar, PSSO5, TO-263, D2PAK-5 | MIC29152WT vs MIC29152BU |
| MIC29152BU | Rochester Electronics LLC | Check for Price | Adjustable Positive LDO Regulator, | MIC29152WT vs MIC29152BU |
| MIC29152BUT&R | Micrel Inc | Check for Price | Adjustable Positive LDO Regulator, 1.25V Min, 25V Max, 0.6V Dropout, BIPolar, PSSO5, TO-263, D2PAK-5 | MIC29152WT vs MIC29152BUT&R |
| BA00ASFP | ROHM Semiconductor | Check for Price | Adjustable Positive LDO Regulator, 1.23V Min, 25V Max, 0.5V Dropout, BIPolar, PSSO4, TO-252, 5/4 PIN | MIC29152WT vs BA00ASFP |
| MSK5101-00E | Anaren Microwave | Check for Price | Adjustable Positive LDO Regulator, 0.6V Dropout, CDSO10, CERAMIC, DFP-10 | MIC29152WT vs MSK5101-00E |
| MSK5101-00 | Anaren Microwave | Check for Price | Adjustable Positive LDO Regulator, 0.625V Dropout, CDSO10, DFP-10 | MIC29152WT vs MSK5101-00 |
| MIC29152BUT&R | Microchip Technology Inc | Check for Price | Adjustable Positive LDO Regulator, 1.25V Min, 25V Max, 0.6V Dropout, BIPolar, PSSO5, TO-263, D2PAK-5 | MIC29152WT vs MIC29152BUT&R |
MIC29152WT Frequently Asked Questions (FAQ)
-
The MIC29152WT can handle input voltages up to 26V, but it's recommended to keep the input voltage below 24V for optimal performance and reliability.
-
To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the input and output capacitors close to the regulator to minimize parasitic inductance.
-
The MIC29152WT requires a minimum input voltage of 5.5V to regulate properly, but it's recommended to keep the input voltage at least 1V above the output voltage for optimal performance.
-
The MIC29152WT is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliability and prevent thermal shutdown.
-
The power dissipation of the MIC29152WT can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
