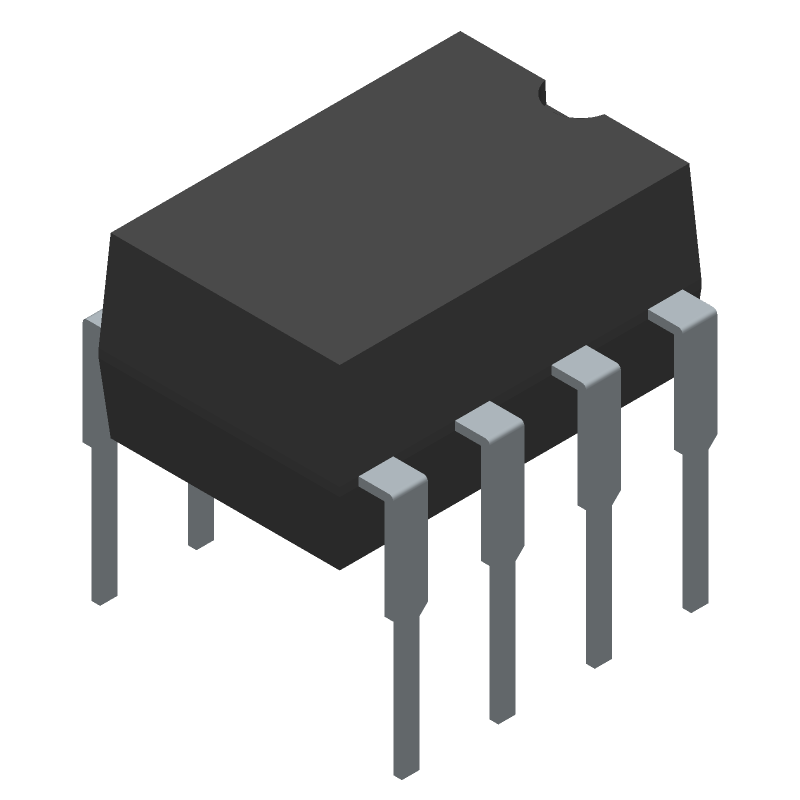

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MIC2545A-2YN by Microchip Technology Inc
Results Overview of MIC2545A-2YN by Microchip Technology Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MIC2545A-2YN Information
MIC2545A-2YN by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC2545A-2YN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71Y0124
|
Newark | Programmable Current Limit High-Side Switch 8 Pdip .300In Tube Rohs Compliant: Yes |Microchip MIC2545A-2YN RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.7400 | Buy Now |
|
DISTI #
576-4314-ND
|
DigiKey | IC PWR SWITCH N-CHANNEL 1:1 8DIP Min Qty: 1 Lead time: 13 Weeks Container: Tube |
135 In Stock |
|
$4.6000 / $6.0700 | Buy Now |
|
DISTI #
MIC2545A-2YN
|
Avnet Americas | PROGRAMMABLE CURRENT LIMIT HIGH-SIDE SWITCH - Rail/Tube (Alt: MIC2545A-2YN) RoHS: Compliant Min Qty: 200 Package Multiple: 50 Lead time: 13 Weeks, 0 Days Container: Tube | 0 |
|
$1.8274 / $2.1480 | Buy Now |
|
DISTI #
998-MIC2545A-2YN
|
Mouser Electronics | Power Switch ICs - Power Distribution Programmable Current Limit High-Side Switch RoHS: Compliant | 143 |
|
$4.6000 / $6.0700 | Buy Now |
|
DISTI #
MIC2545A-2YN
|
Microchip Technology Inc | Programmable Current Limit High-Side Switch, PDIP, Projected EOL: 2039-10-18 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 13 Weeks, 0 Days Container: Tube |
700 Alternates Available |
|
$3.5300 / $6.0700 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 700 Factory Stock |
|
$2.7000 / $3.1400 | Buy Now |
|
|
NAC | Programmable Current Limit High-Side Switch - Package: 8 PDIP .300in TUBE RoHS: Compliant Min Qty: 150 Package Multiple: 50 Container: Tube | 0 |
|
$2.7900 / $3.3700 | Buy Now |
|
|
Master Electronics | RoHS: Compliant | 700 Factory Stock |
|
$2.7000 / $3.1400 | Buy Now |
Part Details for MIC2545A-2YN
MIC2545A-2YN CAD Models
MIC2545A-2YN Part Data Attributes
|
|
MIC2545A-2YN
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC2545A-2YN
Microchip Technology Inc
0.5A BUF OR INV BASED PRPHL DRVR, PDIP8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | LOAD SWITCH | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.271 mm | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Supply Current-Max (Isup) | 0.15 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
