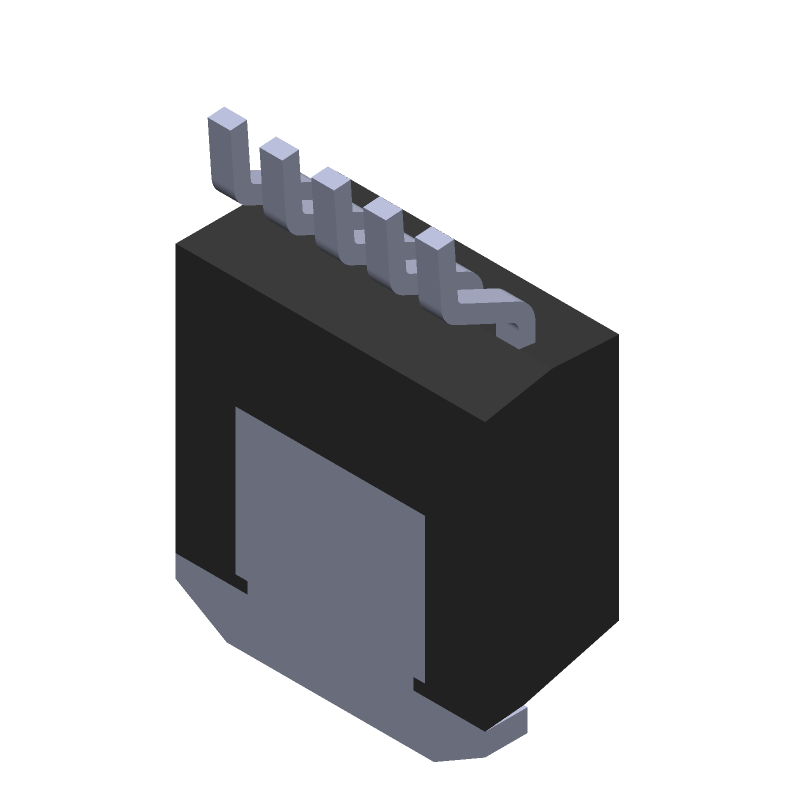

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MIC2171WU-TR by Microchip Technology Inc
Results Overview of MIC2171WU-TR by Microchip Technology Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MIC2171WU-TR Information
MIC2171WU-TR by Microchip Technology Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC2171WU-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70Y9691
|
Newark | 2.5A 100Khz Switching Regulator 5 Ddpak T/R Rohs Compliant: Yes |Microchip MIC2171WU-TR RoHS: Compliant Min Qty: 750 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$5.9100 | Buy Now |
|
DISTI #
576-1541-1-ND
|
DigiKey | IC REG BUCK BST ADJ 2.5A TO263-5 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
899 In Stock |
|
$4.7000 / $6.2100 | Buy Now |
|
DISTI #
MIC2171WU-TR
|
Avnet Americas | 2.5A 100KHZ SWITCHING REGULATOR - Tape and Reel (Alt: MIC2171WU-TR) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$1.4261 / $1.6763 | Buy Now |
|
DISTI #
998-MIC2171WUTR
|
Mouser Electronics | Switching Voltage Regulators 2.5A 100kHz Switching Regulator RoHS: Compliant | 486 |
|
$4.7000 / $6.2100 | Buy Now |
|
DISTI #
V72:2272_07458128
|
Arrow Electronics | Conv DC-DC 3V to 40V Step Down Single-Out 4A 6-Pin(5+Tab) TO-263 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2402 Container: Cut Strips | Americas - 330 |
|
$2.3580 / $3.0483 | Buy Now |
|
DISTI #
MIC2171WU-TR
|
Microchip Technology Inc | 2.5A 100kHz Switching Regulator, DDPAK, Projected EOL: 2034-01-12 COO: China ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Reel |
0 Alternates Available |
|
$3.6000 / $6.2100 | Buy Now |
|
|
Onlinecomponents.com | Current Mode PWM Controller 65V 2.5A 112kHz 6-Pin(5+Tab) TO-263 T/R RoHS: Compliant |
491 In Stock |
|
$4.4900 / $4.6100 | Buy Now |
|
DISTI #
76879669
|
Verical | Conv DC-DC 3V to 40V Step Down Single-Out 4A 6-Pin(5+Tab) TO-263 T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2402 | Americas - 330 |
|
$3.1990 / $3.5040 | Buy Now |
|
DISTI #
67180641
|
Verical | Conv DC-DC 3V to 40V Step Down Single-Out 4A 6-Pin(5+Tab) TO-263 T/R RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2248 | Americas - 200 |
|
$3.6920 / $4.2250 | Buy Now |
|
|
NAC | 2.5A 100kHz Switching Regulator - Package: 5 DDPAK T/R RoHS: Compliant Min Qty: 750 Package Multiple: 750 | 0 |
|
$2.8900 / $3.4900 | Buy Now |
Part Details for MIC2171WU-TR
MIC2171WU-TR CAD Models
MIC2171WU-TR Part Data Attributes
|
|
MIC2171WU-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC2171WU-TR
Microchip Technology Inc
5.5A SWITCHING REGULATOR, 115kHz SWITCHING FREQ-MAX, PSSO5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 3 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PSSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 10.363 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-220 | |
| Package Equivalence Code | SMSIP5H,.6,67TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.902 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 115 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.702 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 8.77 mm |
Alternate Parts for MIC2171WU-TR
This table gives cross-reference parts and alternative options found for MIC2171WU-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MIC2171WU-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MIC2171BU | Rochester Electronics LLC | Check for Price | 5.5A SWITCHING REGULATOR, 115kHz SWITCHING FREQ-MAX, PSSO5, TO-263, 5 PIN | MIC2171WU-TR vs MIC2171BU |
MIC2171WU-TR Frequently Asked Questions (FAQ)
-
A good thermal design should include a solid ground plane, thermal vias under the IC, and a heat sink if possible. Refer to Microchip's application note AN1123 for more details.
-
Ensure that the input voltage rises monotonically and does not droop during start-up. Also, add a soft-start capacitor (Css) to limit the inrush current and prevent voltage drops.
-
The maximum allowed capacitance is 220uF. Exceeding this value may cause instability or oscillations in the output voltage.
-
Yes, but ensure that the junction temperature (Tj) does not exceed 150°C. Also, consider derating the output current and voltage according to the temperature derating curve in the datasheet.
-
Check for inadequate decoupling, incorrect component values, or poor PCB layout. Verify that the input voltage is stable and the output capacitor is within the recommended range. Consult Microchip's application notes for more troubleshooting tips.
