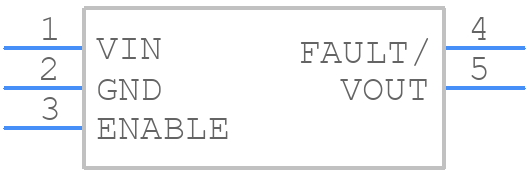

Part Symbol
-
Footprint
-

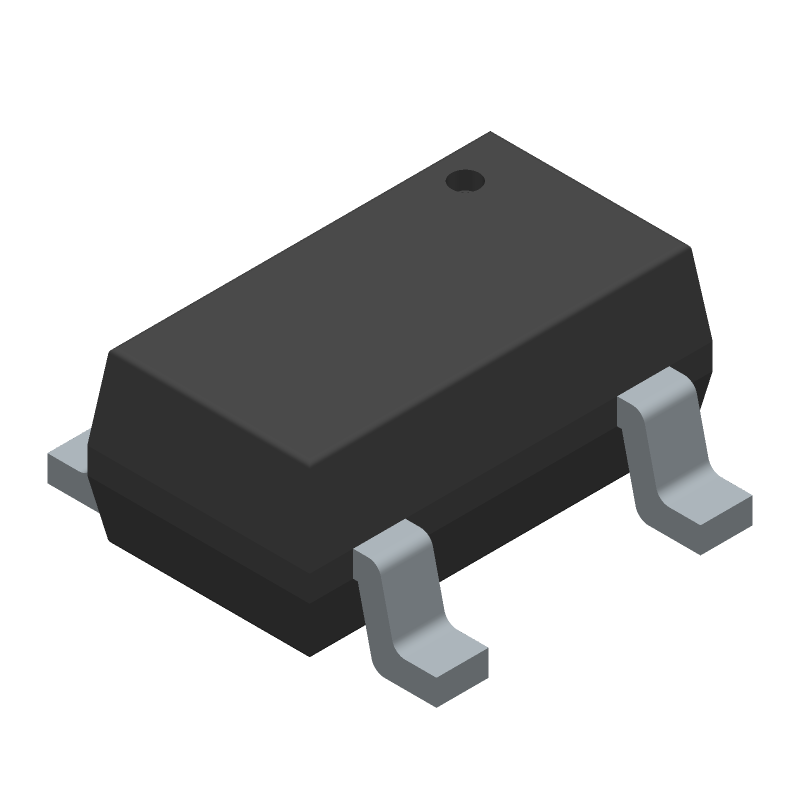

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MIC2005A-2YM5-TR by Microchip Technology Inc
Results Overview of MIC2005A-2YM5-TR by Microchip Technology Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
MIC2005A-2YM5-TR Information
MIC2005A-2YM5-TR by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC2005A-2YM5-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03AJ2066
|
Newark | Low And Active High Current Limiting, Hi, Power Load Switch Type:High Side, Input Voltage:5.5V, Current Limit:500Ma, On State Resistance:0.17Ohm, Distribution Switch Case Style:Sot-23, No. Of Pins:5Pins, Thermal Protection:Yes, On/Rohs Compliant: Yes |Microchip MIC2005A-2YM5-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2405 |
|
$0.3000 / $0.3400 | Buy Now |
|
DISTI #
70Y9416
|
Newark | Low And Active High Current Limiting, High Side Power Switches 5 Sot-23 T/R Rohs Compliant: Yes |Microchip MIC2005A-2YM5-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2870 | Buy Now |
|
DISTI #
576-3464-1-ND
|
DigiKey | IC PWR SWITCH P-CHAN 1:1 SOT23-5 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3619 In Stock |
|
$0.2700 / $0.3700 | Buy Now |
|
DISTI #
MIC2005A-2YM5-TR
|
Avnet Americas | USB Power SW Hi Side/DIST Single 2.5V to 5.5V 0.5A 5-Pin SOT-23 T/R - Tape and Reel (Alt: MIC2005A-2YM5-TR) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.2808 / $0.3000 | Buy Now |
|
DISTI #
998-MIC2005A-2YM5TR
|
Mouser Electronics | Power Switch ICs - Power Distribution Low and Active High Current Limiting, High Side Power Switches RoHS: Compliant | 8962 |
|
$0.2700 / $0.3700 | Buy Now |
|
DISTI #
V72:2272_07846935
|
Arrow Electronics | Power Switch Hi Side 1-OUT 0A 170mOhm 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2324 Container: Cut Strips | Americas - 5790 |
|
$0.3078 / $0.3444 | Buy Now |
|
DISTI #
MIC2005A-2YM5-TR
|
Microchip Technology Inc | Low and Active High Current Limiting, High Side Power Switches, SOT-23, Projected EOL: 2034-03-09 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel |
1387 Alternates Available |
|
$0.2600 / $0.3700 | Buy Now |
|
|
Onlinecomponents.com | USB Power Switch Single 5.5V 0.5A 5-Pin SOT-23 T/R RoHS: Compliant |
9000 In Stock 12000 Factory Stock |
|
$0.2502 / $0.2727 | Buy Now |
|
DISTI #
69841532
|
Verical | Power Switch Hi Side 1-OUT 0A 170mOhm 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 2324 | Americas - 5790 |
|
$0.3078 / $0.3392 | Buy Now |
|
DISTI #
MIC2005A-2YM5-TR
|
TME | IC: power switch, high-side, 0.5A, Ch: 1, MOSFET, SMD, SOT23-5 Min Qty: 3 | 0 |
|
$0.3690 / $0.4520 | RFQ |
Part Details for MIC2005A-2YM5-TR
MIC2005A-2YM5-TR CAD Models
MIC2005A-2YM5-TR Part Data Attributes
|
|
MIC2005A-2YM5-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC2005A-2YM5-TR
Microchip Technology Inc
POWER SUPPLY SUPPORT CKT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | Current Limit:0.9A;Thermal Shutdown:135C | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | LOAD SWITCH | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.45 mm | |
| Supply Current-Max (Isup) | 0.3 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm |
