MIC2005A-1YM5-TR Information
MIC2005A-1YM5-TR by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MIC2005A-1YM5-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AH1143
|
Newark | Power Load Switch, 5.5V, Sot-23-5, Power Load Switch Type:High Side, No. Of Channels:1Channels, Input Voltage:5.5V, Current Limit:500Ma, On State Resistance:0.17Ohm, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Thermal Protection:Yesrohs Compliant: Yes |Microchip MIC2005A-1YM5-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 6795 |
|
$0.2800 / $0.3230 | Buy Now |
|
DISTI #
70Y9414
|
Newark | Low And Active High Current Limiting, High Side Power Switches 5 Sot-23 T/R Rohs Compliant: Yes |Microchip MIC2005A-1YM5-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2870 | Buy Now |
|
DISTI #
576-3462-1-ND
|
DigiKey | IC PWR SWITCH P-CHAN 1:1 SOT23-5 Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
23430 In Stock |
|
$0.2700 / $0.3700 | Buy Now |
|
DISTI #
MIC2005A-1YM5-TR
|
Avnet Americas | Power Load Distribution Switch IC, Active High, 1 Output, 5.5 V in, 500 mA, 0.17 ohm, SOT-23-5 - Tape and Reel (Alt: MIC2005A-1YM5-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks, 0 Days Container: Reel | 0 |
|
$0.2808 / $0.3000 | Buy Now |
|
DISTI #
52AH1143
|
Avnet Americas | Power Load Distribution Switch IC, Active High, 1 Output, 5.5 V in, 500 mA, 0.17 ohm, SOT-23-5 - Product that comes on tape, but is not reeled (Alt: 52AH1143) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 54 Weeks, 5 Days Container: Ammo Pack | 0 |
|
$0.3020 / $0.3850 | Buy Now |
|
DISTI #
998-MIC2005A-1YM5TR
|
Mouser Electronics | Power Switch ICs - Power Distribution Low and Active High Current Limiting, High Side Power Switches RoHS: Compliant | 8211 |
|
$0.2700 / $0.3700 | Buy Now |
|
DISTI #
V72:2272_07846932
|
Arrow Electronics | Power Switch Hi Side 1-OUT 0A 170mOhm 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2314 Container: Cut Strips | Americas - 10529 |
|
$0.3221 / $0.3659 | Buy Now |
|
DISTI #
MIC2005A-1YM5-TR
|
Microchip Technology Inc | Low and Active High Current Limiting, High Side Power Switches, SOT-23, Projected EOL: 2034-03-10 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel | 374193 |
|
$0.2600 / $0.3700 | Buy Now |
|
DISTI #
73927092
|
RS | Switch, low and active high current limiting, high side power distribution Min Qty: 3000 Package Multiple: 1 Lead time: 40 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3090 / $0.3330 | RFQ |
|
|
Future Electronics | MIC2005 Series 1 Channel 5.5V 500mA High Side Power Distribution Switch SOT-23-5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks Container: Reel | 3000Reel |
|
$0.2900 / $0.3000 | Buy Now |
Part Details for MIC2005A-1YM5-TR

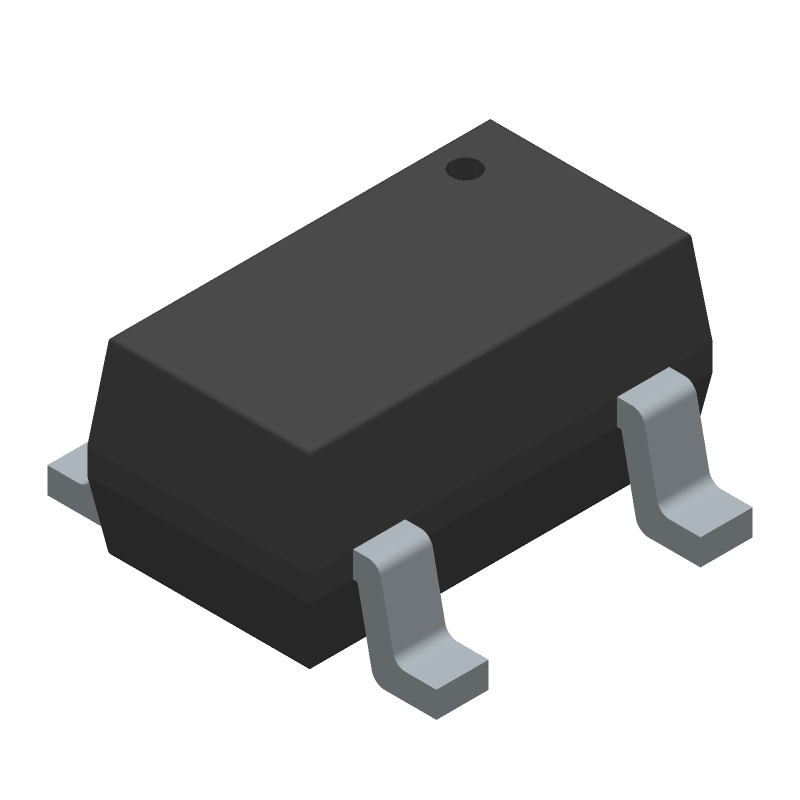

MIC2005A-1YM5-TR CAD Models
MIC2005A-1YM5-TR Part Data Attributes
|
|
MIC2005A-1YM5-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MIC2005A-1YM5-TR
Microchip Technology Inc
POWER SUPPLY SUPPORT CKT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | LOAD SWITCH | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.45 mm | |
| Supply Current-Max (Isup) | 0.3 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 1.6 mm |
