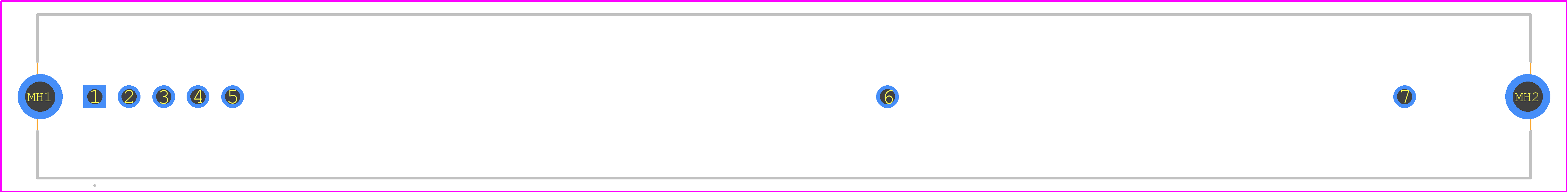

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MHV12-1.5K1300P by Bellnix Co Ltd
Results Overview of MHV12-1.5K1300P by Bellnix Co Ltd
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
MHV12-1.5K1300P Information
MHV12-1.5K1300P by Bellnix Co Ltd is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MHV12-1.5K1300P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2277-MHV12-1.5K1300P-ND
|
DigiKey | DC DC CONVERTER 1500V 2W Min Qty: 1 Lead time: 16 Weeks Container: Bulk |
10 In Stock |
|
$155.6170 / $170.7100 | Buy Now |
|
DISTI #
87083274
|
Verical | Module DC-DC 1-OUT 0V to 1.5KV 0.0013A 2W 7-Pin Bulk Min Qty: 1 Package Multiple: 1 | Americas - 43 |
|
$342.8827 / $395.8028 | Buy Now |
|
|
Quest Components | 36 |
|
$376.0485 / $438.7233 | Buy Now |
Part Details for MHV12-1.5K1300P
MHV12-1.5K1300P CAD Models
MHV12-1.5K1300P Part Data Attributes
|
|
MHV12-1.5K1300P
Bellnix Co Ltd
Buy Now
Datasheet
|
Compare Parts:
MHV12-1.5K1300P
Bellnix Co Ltd
DC-DC Regulated Power Supply Module, 1 Output, Hybrid, ROHS COMPLIANT, METAL, PACKAGE-7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | BELLNIX CO LTD | |
| Package Description | ROHS COMPLIANT, METAL, PACKAGE-7 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Bellnix | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 16.5 V | |
| Input Voltage-Min | 10.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-MSMA-P7 | |
| Length | 110 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Output Voltage-Max | 1500 V | |
| Output Voltage-Min | ||
| Package Body Material | METAL | |
| Package Code | SMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 26 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1.95 W | |
| Trim/Adjustable Output | NO | |
| Width | 12 mm |
MHV12-1.5K1300P Frequently Asked Questions (FAQ)
-
Bellnix recommends a 4-layer PCB with a solid ground plane, and a minimum of 1 oz copper thickness for optimal thermal dissipation and EMI reduction.
-
While the MHV12-1.5K1300P is rated for operation up to 125°C, it's recommended to derate the output power by 1.5% per degree above 100°C to ensure reliable operation.
-
Bellnix recommends using a heat sink with a thermal resistance of ≤ 1°C/W, and ensuring a minimum air flow of 200 LFM to maintain a junction temperature below 125°C.
-
The MHV12-1.5K1300P can tolerate an input voltage deviation of ±10% without affecting performance or reliability.
-
Yes, but it's essential to ensure that the modules are identical, and the output voltages are matched within 1% to prevent uneven current sharing and potential damage.
