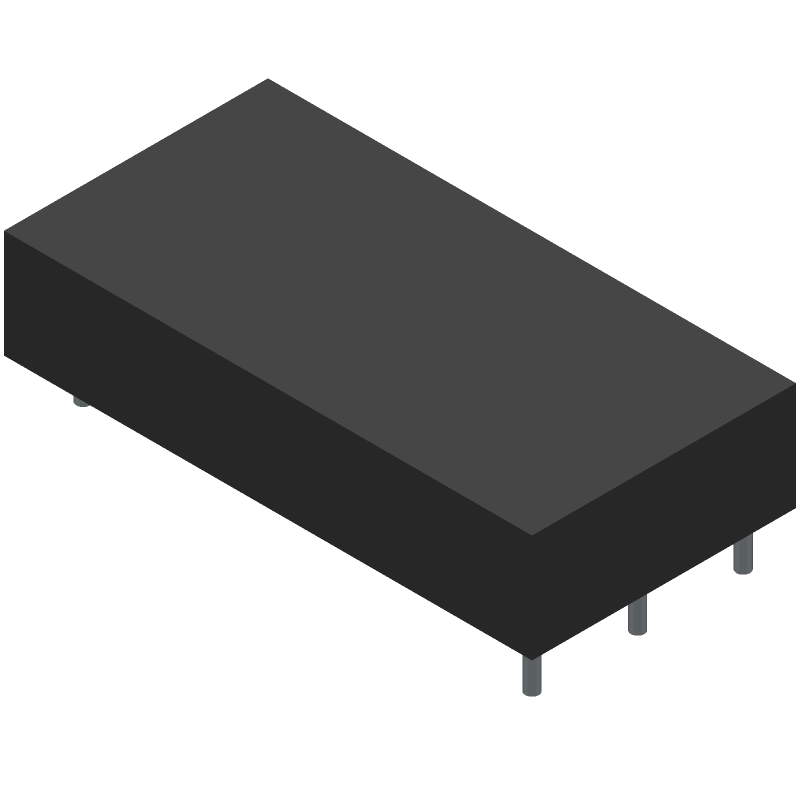

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MGS302405 by Cosel USA Inc
Results Overview of MGS302405 by Cosel USA Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Automotive
MGS302405 Information
MGS302405 by Cosel USA Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MGS302405
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85AK2641
|
Newark | Dc-Dc Converter, 5V, 6A Rohs Compliant: Yes |Cosel MGS302405 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2 |
|
$49.9000 / $58.9100 | Buy Now |
|
DISTI #
1776-1381-ND
|
DigiKey | DC DC CONVERTER 5V Min Qty: 1 Lead time: 13 Weeks Container: Box | Temporarily Out of Stock |
|
$50.3690 / $56.1600 | Buy Now |
|
DISTI #
70161164
|
RS | DC-DC Converter,5V,6A,18-36V In, Encapsulated, Thru Hole, Switching, MG Series Min Qty: 1 Package Multiple: 1 Container: Bulk | 9 |
|
$48.9200 / $56.2300 | Buy Now |
|
DISTI #
83692438
|
Verical | Module DC-DC 24VIN 1-OUT 5V 6A 30W 6-Pin RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2431 | Americas - 121 |
|
$43.3000 / $53.4000 | Buy Now |
|
DISTI #
MGS302405
|
IBS Electronics | MGS30 SERIES 30 W SINGLE OUTPUT 5 V ISOLATED PCB MOUNT DC/DC CONVERTER Min Qty: 1 Package Multiple: 1 | 0 |
|
$56.2770 / $59.0850 | Buy Now |
|
DISTI #
000000000003616118
|
Sager | Isolated DC/DC Converters - Through Hole 30W 5V 6A Through Hole Min Qty: 1 | 26 |
|
$47.3700 / $48.0100 | Buy Now |
|
DISTI #
MGS302405
|
Chip One Stop | Electromechanicals RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 121 |
|
$37.1000 / $53.4000 | Buy Now |
|
|
Neutron USA | Isolated DC-DC Converter Single output: 30W 5V 6A, Input: 24(18-36)V 1.36A, 92%Eff, Remote On/Off, OCP, OVP, 6-DIP Thru H, 1" X 0.39" X 2" | 46 |
|
$159.7300 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 17 |
|
RFQ |
Part Details for MGS302405
MGS302405 CAD Models
MGS302405 Part Data Attributes
|
|
MGS302405
Cosel USA Inc
Buy Now
Datasheet
|
Compare Parts:
MGS302405
Cosel USA Inc
DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT, PACKAGE-6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COSEL CO LTD | |
| Package Description | PACKAGE-6 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Cosel | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | UL, C-UL, EN | |
| Efficiency (Main Output) | 92% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-XDMA-P6 | |
| Length | 50.8 mm | |
| Line Regulation-Max | 0.001% | |
| Load Regulation-Max | 0.4% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 6 A | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 4.5 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Protections | OVER CURRENT, OVER VOLTAGE | |
| Ripple Voltage (Main Out) | 0.053025 Vrms | |
| Seated Height-Max | 10.4 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 15 | |
| Total Power Output-Max | 30 W | |
| Trim/Adjustable Output | YES | |
| Warm-up Time | 0.03 s | |
| Width | 25.4 mm |
Alternate Parts for MGS302405
This table gives cross-reference parts and alternative options found for MGS302405. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MGS302405, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MGS302405-R | Cosel USA Inc | Check for Price | DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT, PACKAGE-6 | MGS302405 vs MGS302405-R |
| HC006A6A61Z | GE Power Electronics Inc | Check for Price | DC-DC Regulated Power Supply Module, 1 Output, 33W, Hybrid, ROHS COMPLIANT PACKAGE-18 | MGS302405 vs HC006A6A61Z |
MGS302405 Frequently Asked Questions (FAQ)
-
Cosel recommends a 4-layer PCB with a solid ground plane and a thermal relief pattern under the module. Ensure good airflow and consider adding a heat sink or thermal interface material to maintain a junction temperature below 100°C.
-
Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and consider adding EMI filters or shielding to minimize radiation. Consult the Cosel application note for EMC guidelines.
-
Derating curves are available in the Cosel application note. Apply the curves by considering the ambient temperature, input voltage, and output current to determine the maximum allowable output power.
-
Yes, but consult the Cosel application note for specific guidelines on redundant and parallel configurations. Ensure proper synchronization and consider using a master-slave configuration to prevent oscillations.
-
Consult the Cosel troubleshooting guide and application note. Check the input voltage, output voltage, and current. Verify proper PCB layout, thermal management, and EMC considerations. Use an oscilloscope to analyze the output waveform and identify potential issues.
