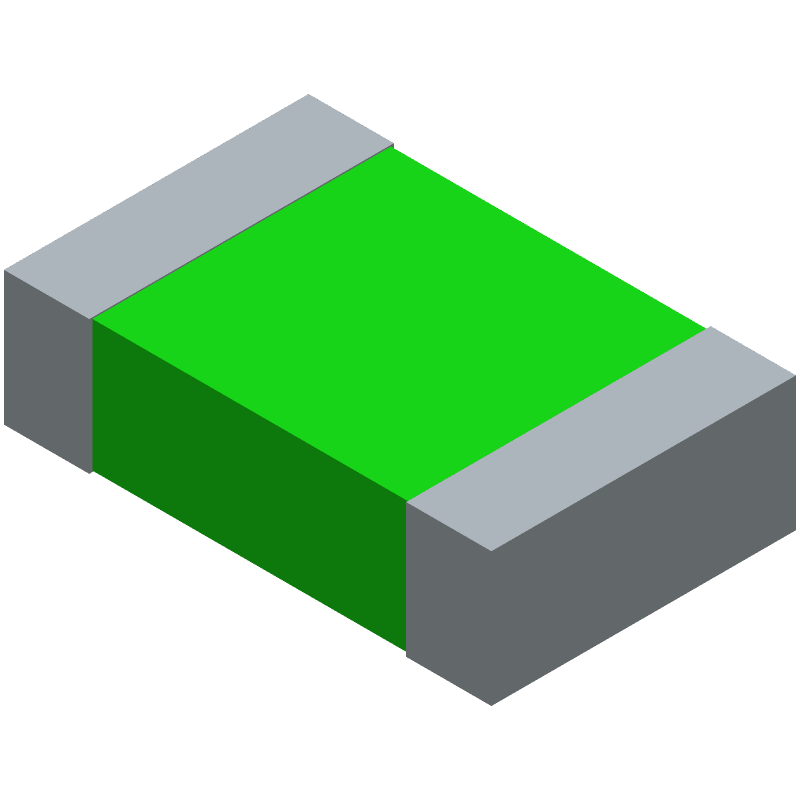

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MFU0805FF03000P100 by Vishay Intertechnologies
Results Overview of MFU0805FF03000P100 by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MFU0805FF03000P100 Information
MFU0805FF03000P100 by Vishay Intertechnologies is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for MFU0805FF03000P100
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64T3631
|
Newark | Fuse, 0805 Smd, 3A, Fuse Current:3A, Product Range:Mfu Series, Voltage Rating Vac:-, Voltage Rating V Dc:32Vdc, Blow Characteristic:Fast Acting, Fuse Case Style:Smd, Breaking Capacity Current Ac:-, Breaking Capacity Current Dc:50A, Rohs Compliant: Yes |Vishay MFU0805FF03000P100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 724 |
|
$0.2870 / $0.6060 | Buy Now |
|
DISTI #
MFU0805FF03000P100
|
Avnet Americas | Fuse Chip 3A 63V Very Fast 2-Pin Solder Pad Surface Mount T/R - Tape and Reel (Alt: MFU0805FF03000P100) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.2106 / $0.2280 | Buy Now |
|
DISTI #
594-MFU0805FF03000P1
|
Mouser Electronics | Surface Mount Fuses 32V 3.0A Fast Act Very Quick RoHS: Compliant | 20621 |
|
$0.2410 / $0.5100 | Buy Now |
|
DISTI #
V72:2272_09554361
|
Arrow Electronics | Fuse Chip Very Fast Acting 3A 32V SMD Solder Pad 0805 Ceramic T/R UL Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2343 Container: Cut Strips | Americas - 61 |
|
$0.2402 / $0.3485 | Buy Now |
|
DISTI #
75303743
|
Verical | Fuse Chip Very Fast Acting 3A 32V SMD Solder Pad 0805 Ceramic T/R UL Min Qty: 25 Package Multiple: 1 Date Code: 2343 | Americas - 61 |
|
$0.2402 | Buy Now |
|
DISTI #
MFU0805FF03000P100
|
TTI | Surface Mount Fuses 32V 3.0A Fast Act Very Quick pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.2180 / $0.2320 | Buy Now |
|
DISTI #
MFU0805FF03000P100
|
Avnet Abacus | Fuse Chip 3A 63V Very Fast 2Pin Solder Pad Surface Mount TR (Alt: MFU0805FF03000P100) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MFU0805FF03000P100
MFU0805FF03000P100 CAD Models
MFU0805FF03000P100 Part Data Attributes
|
|
MFU0805FF03000P100
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MFU0805FF03000P100
Vishay Intertechnologies
Electric Fuse, Very Fast Blow, 3A, 32VDC, 50A (IR), Surface Mount, HALOGEN FREE AND ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Blow Characteristic | VERY FAST | |
| Body Breadth | 1.25 mm | |
| Body Height | 0.45 mm | |
| Body Length or Diameter | 2 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| JESD-609 Code | e3 | |
| Joule Integral-Nom | ||
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 35 °C | |
| Operating Temperature-Min | 15 °C | |
| Packing Method | TAPE AND REEL | |
| Rated Breaking Capacity | 50 A | |
| Rated Current | 3 A | |
| Rated Voltage(DC) | 32 V | |
| Reference Standard | UL; UMF | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND |
Alternate Parts for MFU0805FF03000P100
This table gives cross-reference parts and alternative options found for MFU0805FF03000P100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MFU0805FF03000P100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MFU0805FF03000P500 | Vishay Intertechnologies | $0.3965 | Electric Fuse, Very Fast Blow, 3A, 32VDC, 50A (IR), Surface Mount, HALOGEN FREE AND ROHS COMPLIANT | MFU0805FF03000P100 vs MFU0805FF03000P500 |
| MFU0603FF03000P500 | Vishay Intertechnologies | Check for Price | Electric Fuse, Very Fast Blow, 3A, 32VDC, 50A (IR), Surface Mount, HALOGEN FREE AND ROHS COMPLIANT | MFU0805FF03000P100 vs MFU0603FF03000P500 |
| MFU0805FF03000PW00 | Vishay Intertechnologies | Check for Price | Electric Fuse, Very Fast Blow, 3A, 32VDC, 50A (IR), Surface Mount, HALOGEN FREE AND ROHS COMPLIANT | MFU0805FF03000P100 vs MFU0805FF03000PW00 |
| MFU0402FF03000E100 | Vishay Intertechnologies | $0.3430 | Electric Fuse, Very Fast Blow, 3A, 32VDC, 50A (IR), Surface Mount, HALOGEN FREE AND ROHS COMPLIANT | MFU0805FF03000P100 vs MFU0402FF03000E100 |
MFU0805FF03000P100 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the MFU0805FF03000P100 can be found in the Vishay Intertechnologies' application note 'Land Pattern Recommendations for Resistors' (document number 28771).
-
Vishay Intertechnologies provides guidelines for soldering and rework in their application note 'Soldering and Rework Guidelines for Thick Film Resistors' (document number 28772).
-
The MFU0805FF03000P100 has an MSL rating of 1, which means it can withstand a maximum of 30°C/60% relative humidity for 168 hours.
-
While the MFU0805FF03000P100 is a general-purpose resistor, it may not be suitable for high-frequency applications due to its thick-film construction. For high-frequency applications, consider using thin-film resistors or specialized high-frequency resistors.
-
The power rating of the MFU0805FF03000P100 decreases as the temperature increases. Use the derating curve in the datasheet to determine the maximum power rating at a given temperature.
