MF-USMF050-2 Information
MF-USMF050-2 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MF-USMF050-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29X1626
|
Newark | Fuse, Reset Ptc, 13.2V, 0.5A, 1210, Reel, Thermistor Mounting:Smd, Product Range:Mf-Usmf Series, Holding Current:500Ma, Tripping Current:1A, Voltage Rating:13.2V, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Rohs Compliant: Yes |Bourns MF-USMF050-2 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 3000 |
|
$0.2540 / $0.2660 | Buy Now |
|
DISTI #
26M1567
|
Newark | Fuse, Ptc Reset, 13.2V, 500Ma, 1210, Thermistor Mounting:Smd, Product Range:Mf-Usmf Series, Holding Current:500Ma, Tripping Current:1A, Voltage Rating:13.2V, Operating Temperature Min:-40°C, Operating Temperature Max:85°C Rohs Compliant: Yes |Bourns MF-USMF050-2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1000 |
|
$0.2310 / $0.3700 | Buy Now |
|
DISTI #
MF-USMF050-2CT-ND
|
DigiKey | PTC RESET FUSE 13.2V 500MA 1210 Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
25676 In Stock |
|
$0.1250 / $0.4000 | Buy Now |
|
DISTI #
MF-USMF050-2
|
Avnet Americas | PTC Resettable Fuse 40A 0.1s 13.2VDC 0.18 Ohm 2-PIN 1210 - Tape and Reel (Alt: MF-USMF050-2) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Container: Reel | 6000 |
|
$0.1182 / $0.2523 | Buy Now |
|
DISTI #
MF-USMF050-2
|
Avnet Americas | PTC Resettable Fuse 40A 0.1s 13.2VDC 0.18 Ohm 2-PIN 1210 - Tape and Reel (Alt: MF-USMF050-2) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.1250 / $0.2694 | Buy Now |
|
DISTI #
652-MF-USMF050-2
|
Mouser Electronics | Resettable Fuses - PPTC 13.2V .5A-HD 40A MAX RoHS: Compliant | 1110 |
|
$0.1430 / $0.3300 | Buy Now |
|
DISTI #
E02:0323_00123936
|
Arrow Electronics | PTC Resettable Fuse 0.5A(hold) 1A(trip) 13.2V 40A 0.6W 0.1s 0.18Ohm SMD Solder Pad 1210 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Date Code: 2505 | Europe - 15000 |
|
$0.2579 | Buy Now |
|
DISTI #
V72:2272_06254585
|
Arrow Electronics | PTC Resettable Fuse 0.5A(hold) 1A(trip) 13.2V 40A 0.6W 0.1s 0.18Ohm SMD Solder Pad 1210 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 15 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2307 Container: Cut Strips | Americas - 15 |
|
$0.2685 | Buy Now |
|
DISTI #
70153683
|
RS | Fuse Resettable Fast Acting 40A Sz 1210 0.135x0.11x0.033" SMT 13.2VDC PCB Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 10 |
|
$0.3230 / $0.4040 | Buy Now |
|
|
Onlinecomponents.com | PTC Resettable Fuse 0.5A(hold) 1A(trip) 13.2V 40A 0.6W 0.1s 0.18Ohm SMD Solder Pad 1210 T/R Automotive RoHS: Compliant |
12884 In Stock |
|
$0.2470 / $0.2809 | Buy Now |
Part Details for MF-USMF050-2
MF-USMF050-2 CAD Models
MF-USMF050-2 Part Data Attributes
|
|
MF-USMF050-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
MF-USMF050-2
Bourns Inc

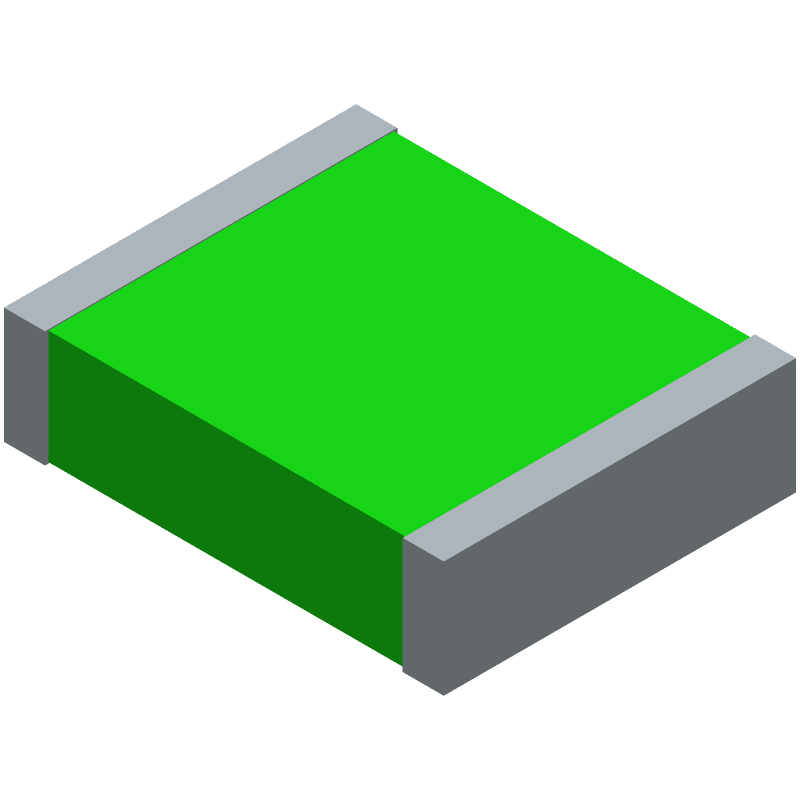

PTC Resettable Fuse, Surface Mount, CHIP, 1210
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | RMIN AT 23 DEG CEL | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 0.85 mm | |
| Package Length | 3.43 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 2.8 mm | |
| Packing Method | TR, 7 INCH | |
| Reference Standard | AEC-Q200; CUL; TUV; UL | |
| Resistance | 0.18 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 13.2 V |
